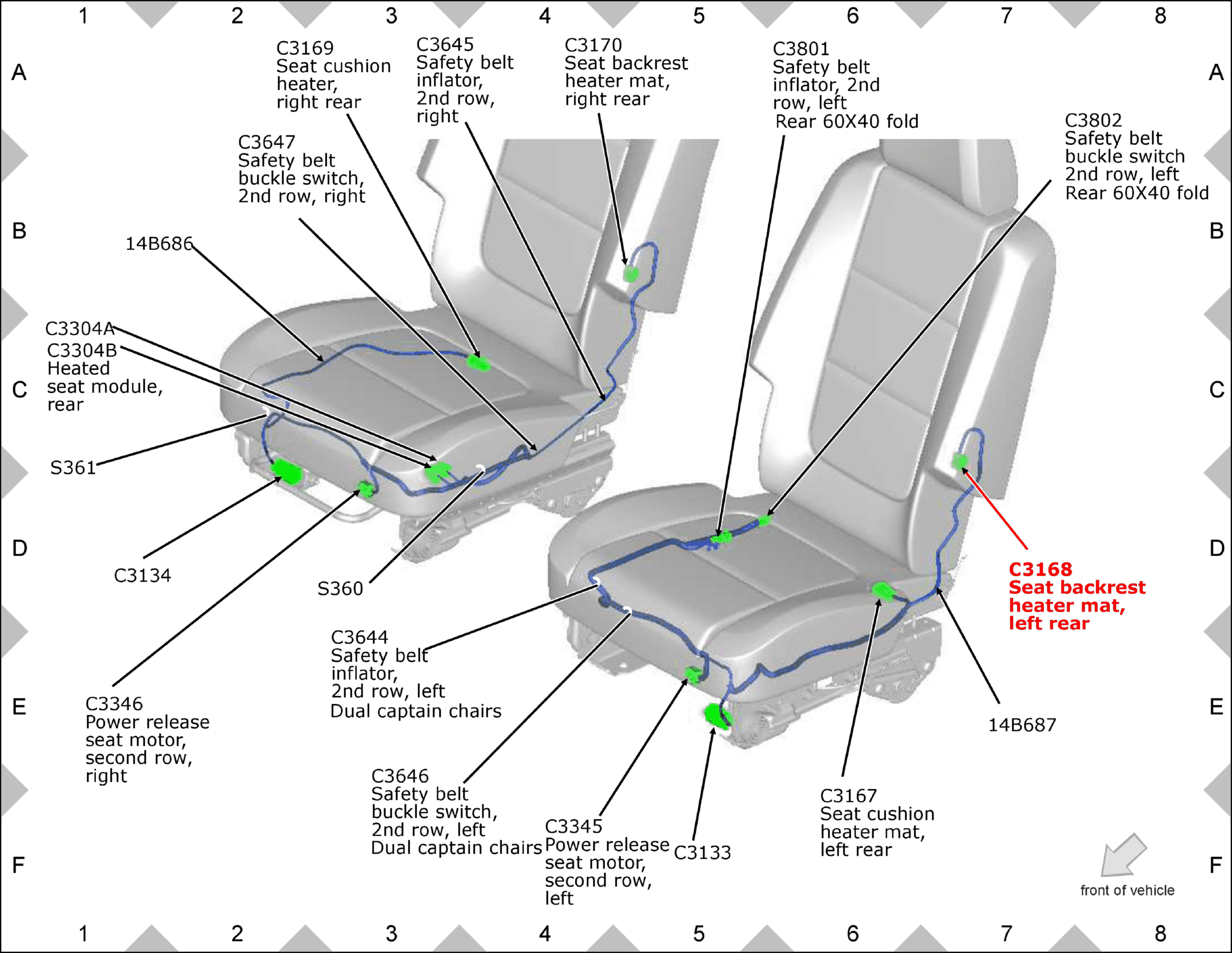

C3168 Under 2nd row seats, LH side
C3168 Under 2nd row seats, LH side
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
