Component Location Views

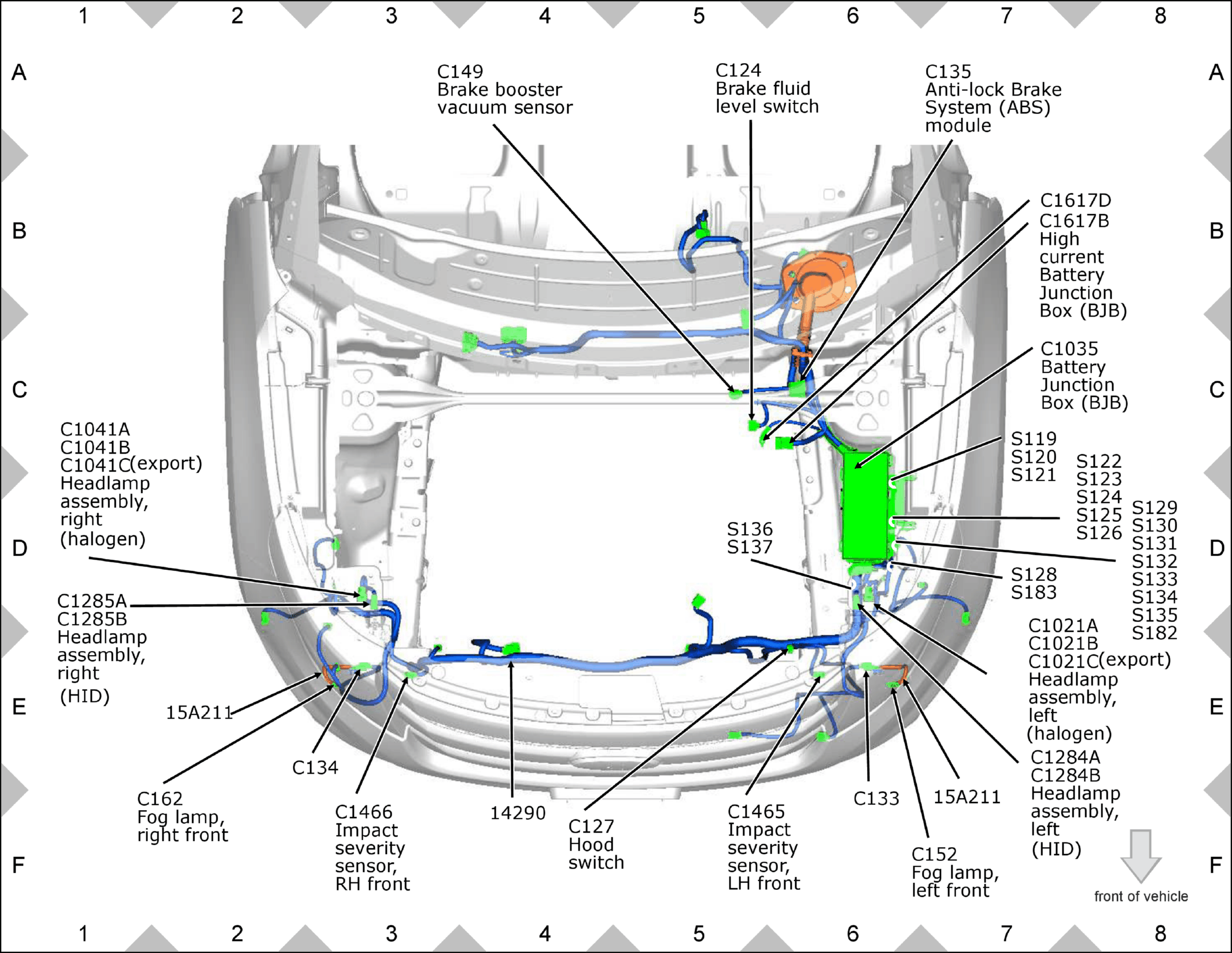

GFDW11808Courtesy of FORD MOTOR COMPANY
GFDW11809Courtesy of FORD MOTOR COMPANY

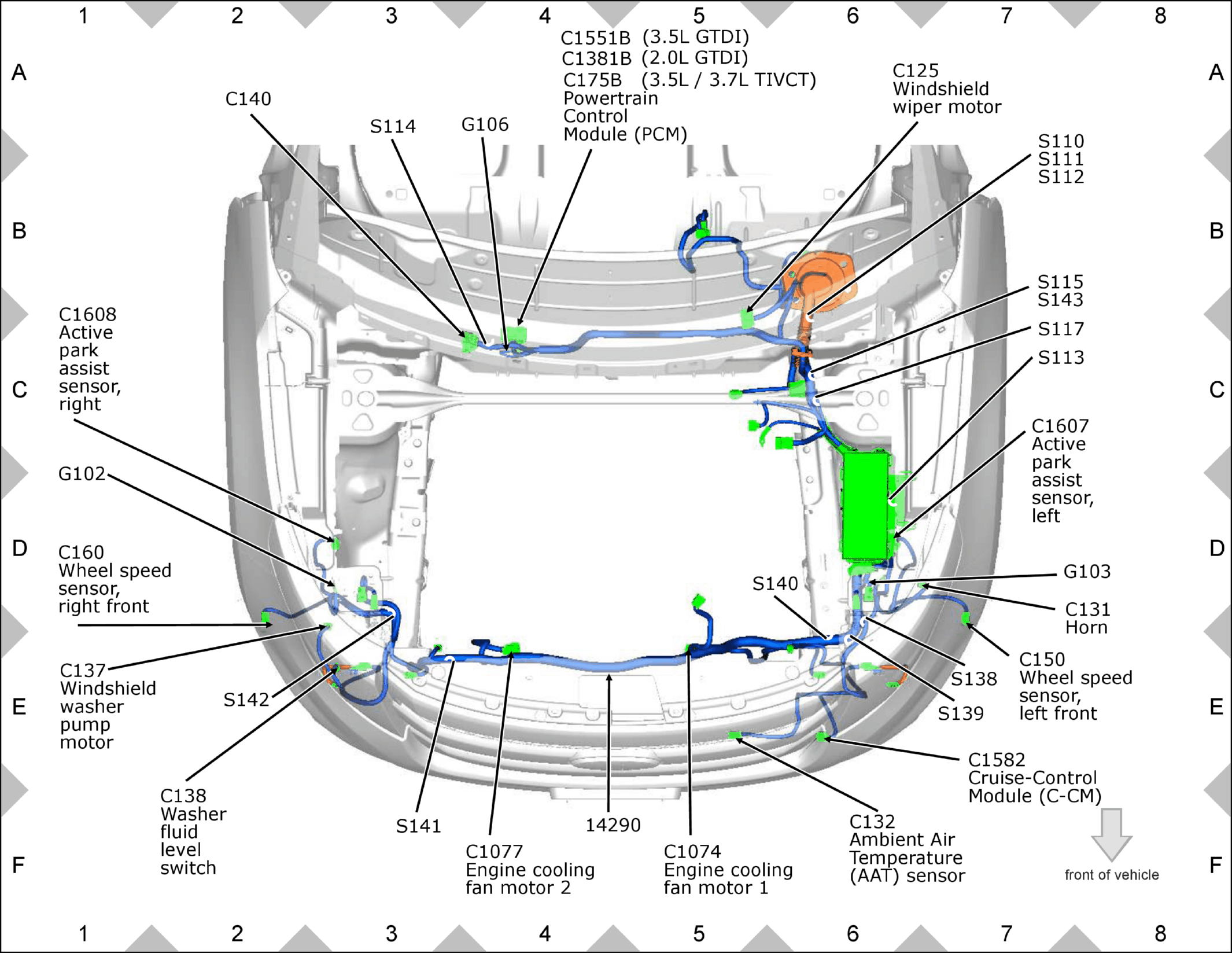

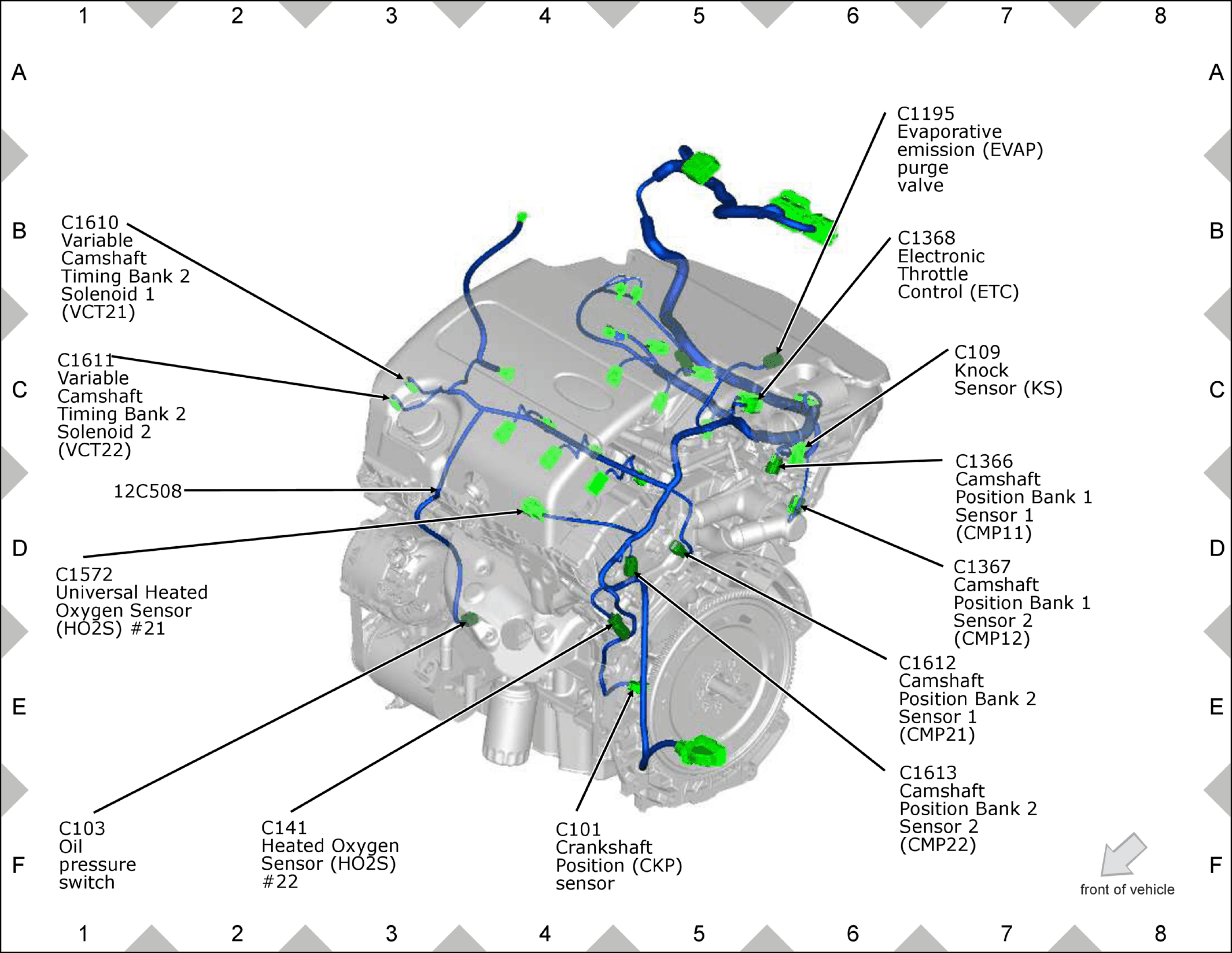

GFDW11810Courtesy of FORD MOTOR COMPANY

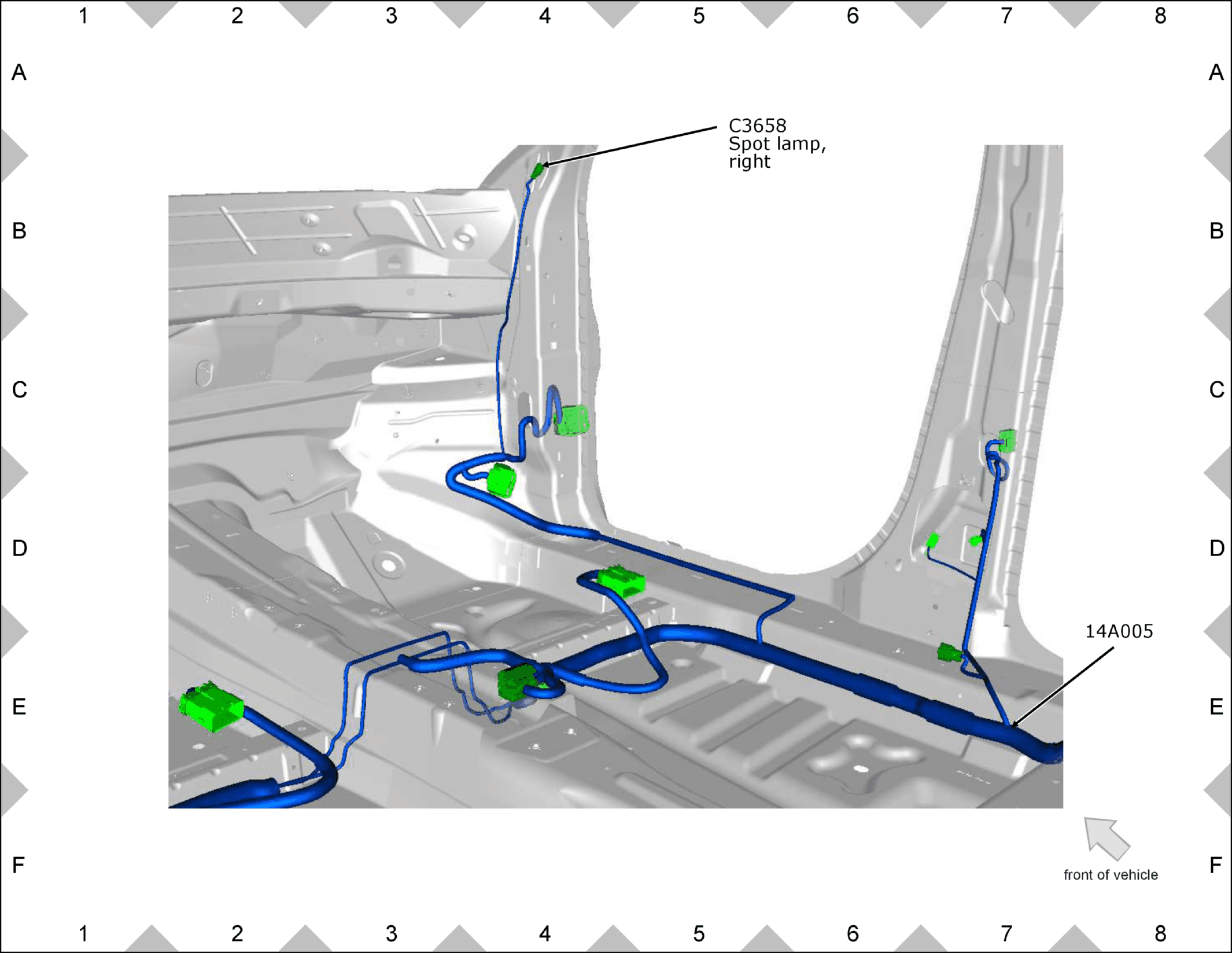

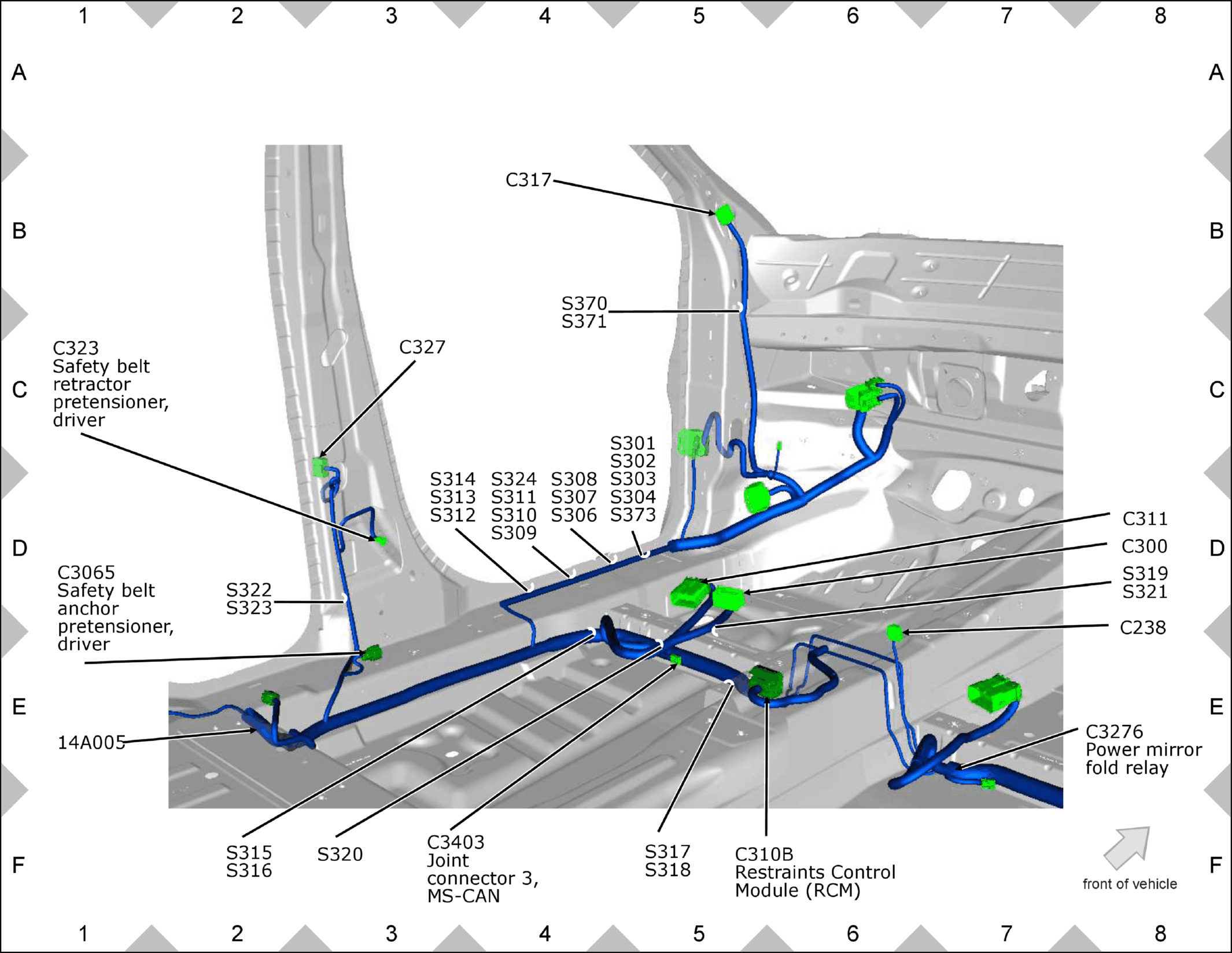

GFDW11811Courtesy of FORD MOTOR COMPANY

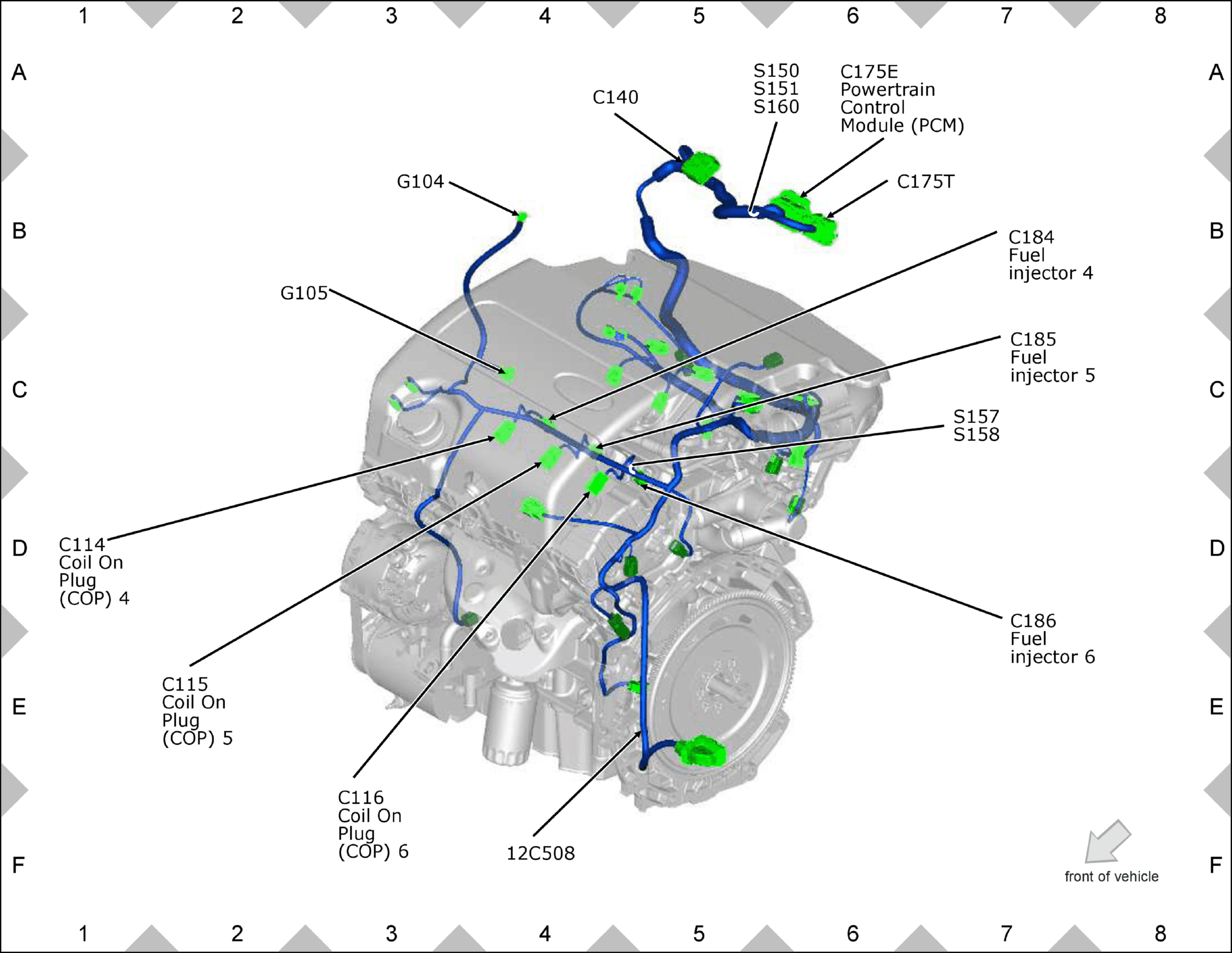

GFDW11812Courtesy of FORD MOTOR COMPANY

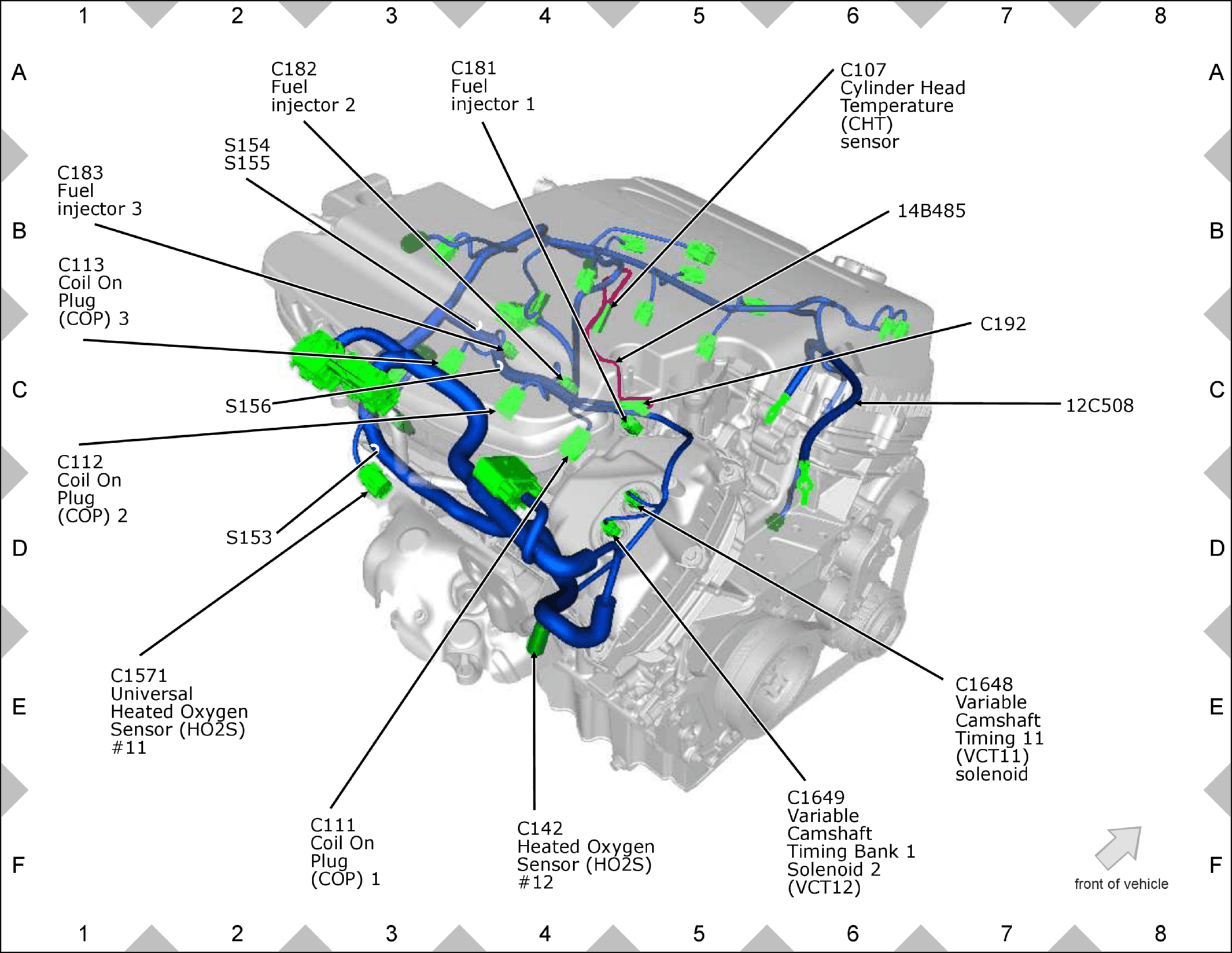

GFDW11813Courtesy of FORD MOTOR COMPANY

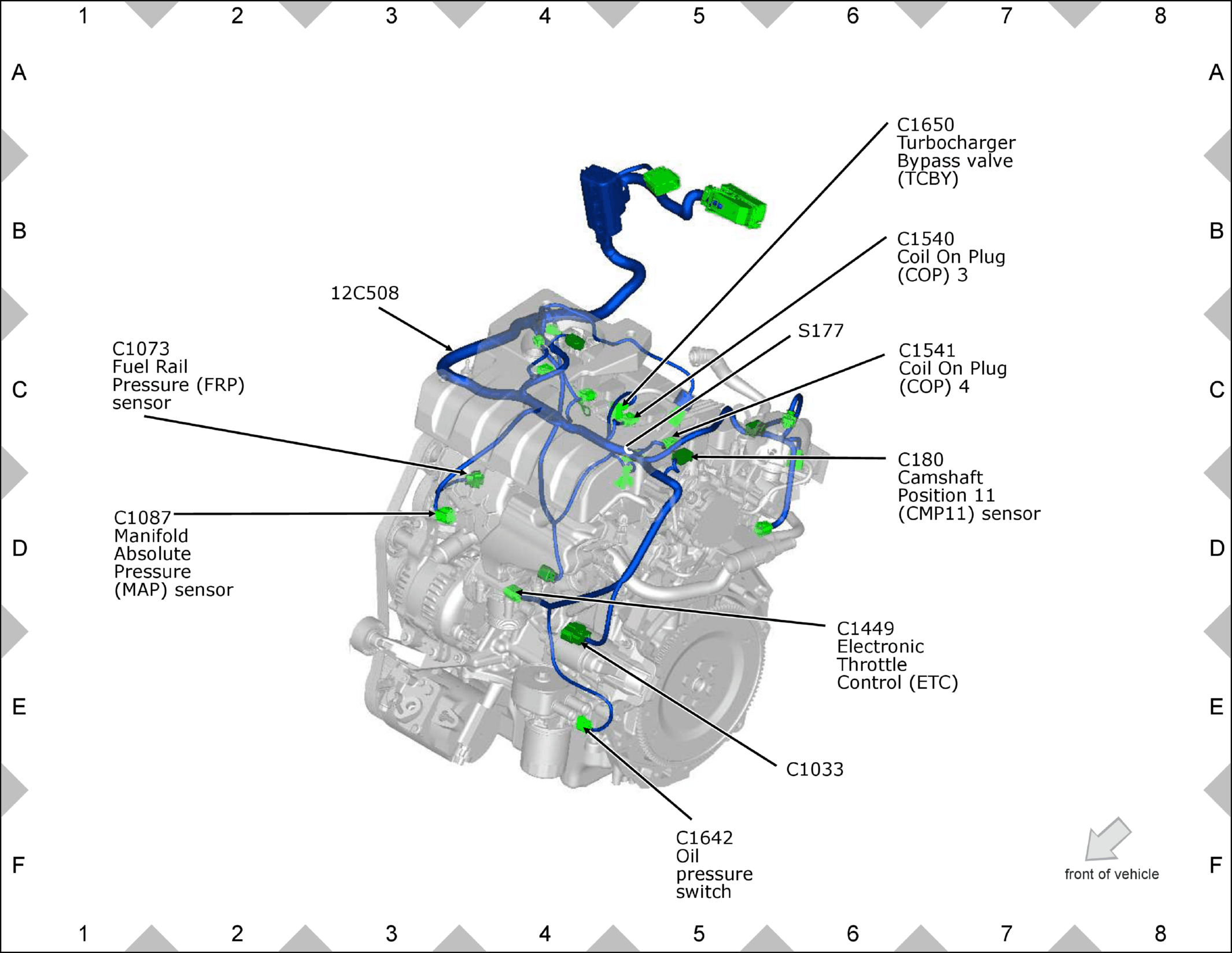

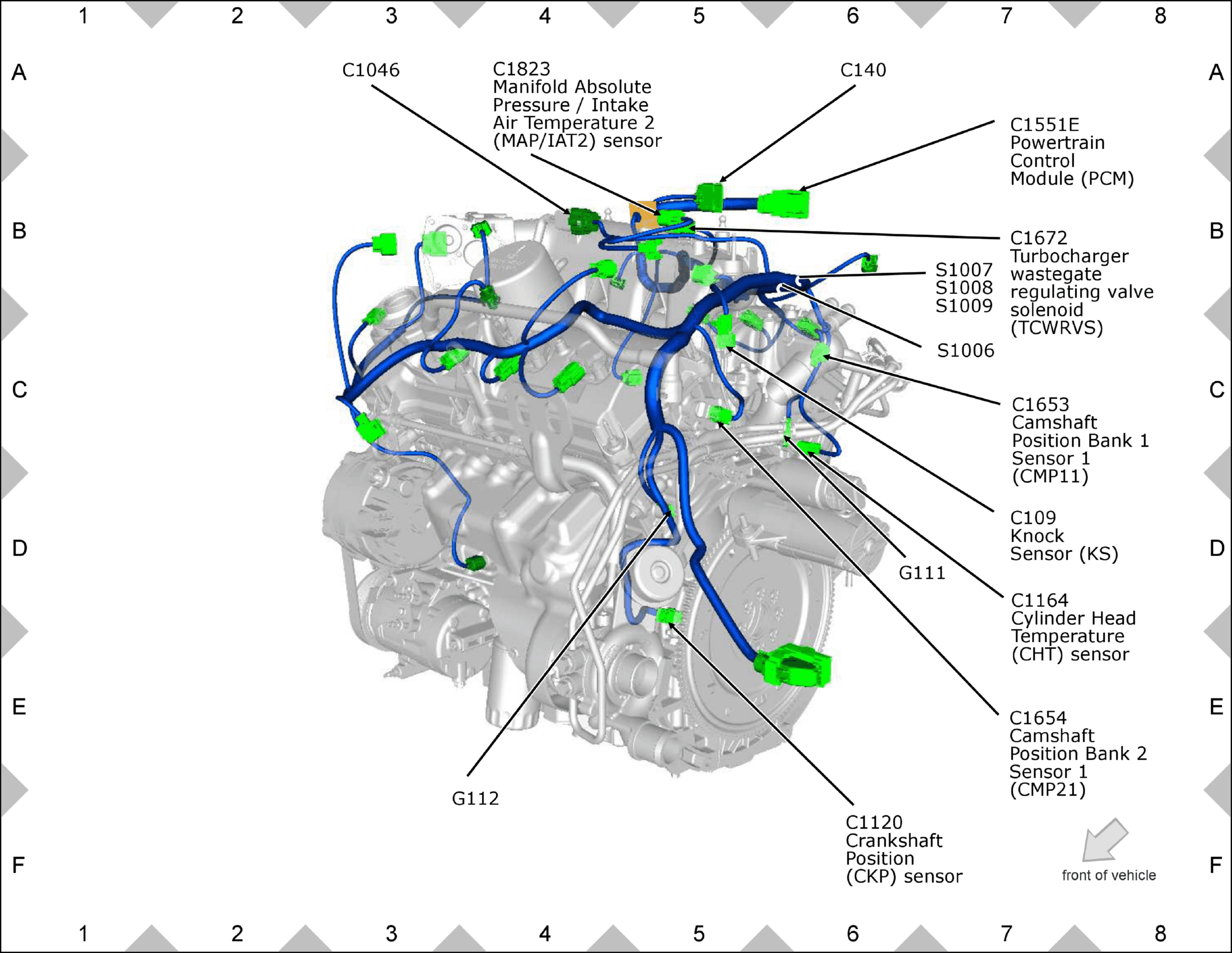

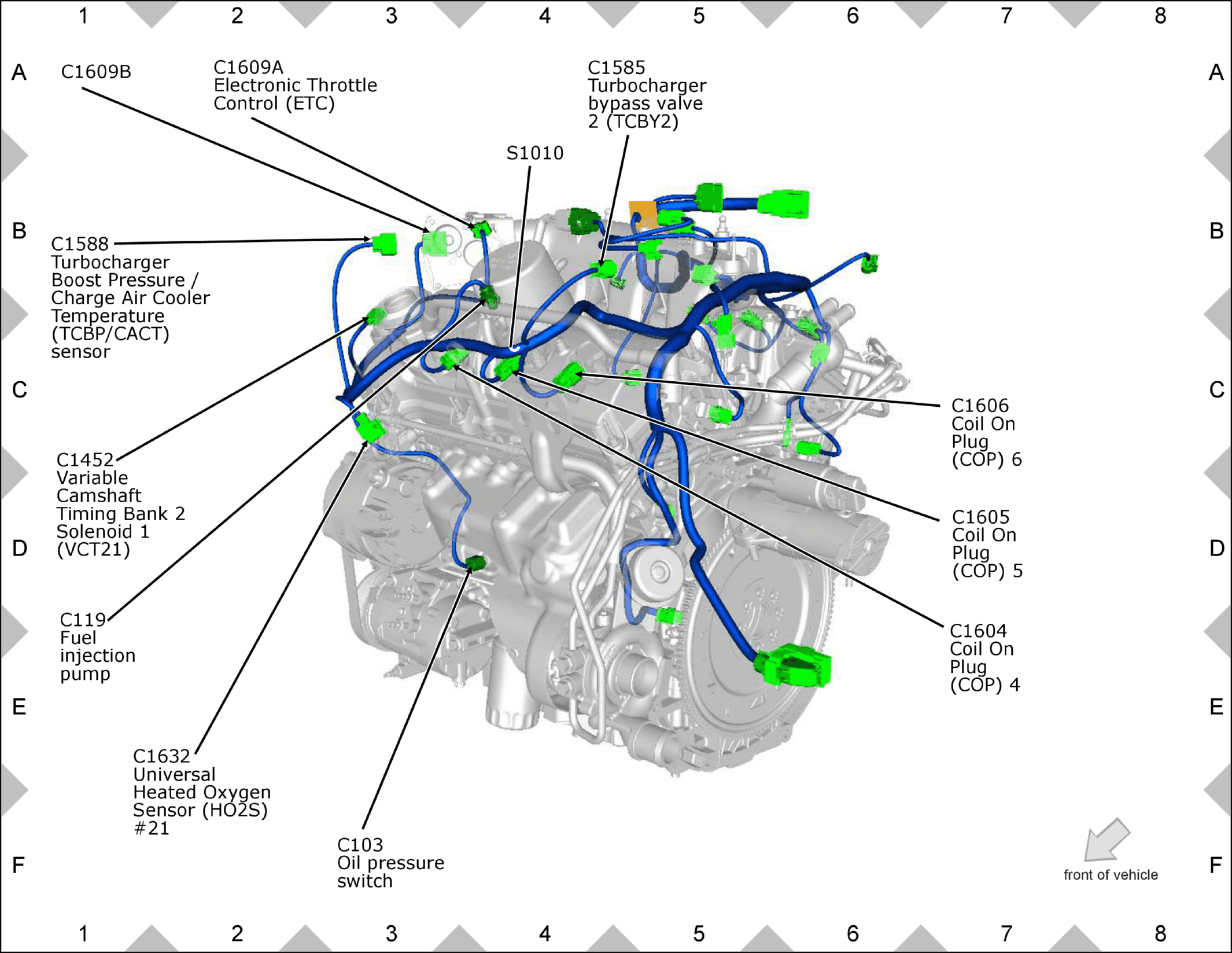

GFDW11814Courtesy of FORD MOTOR COMPANY

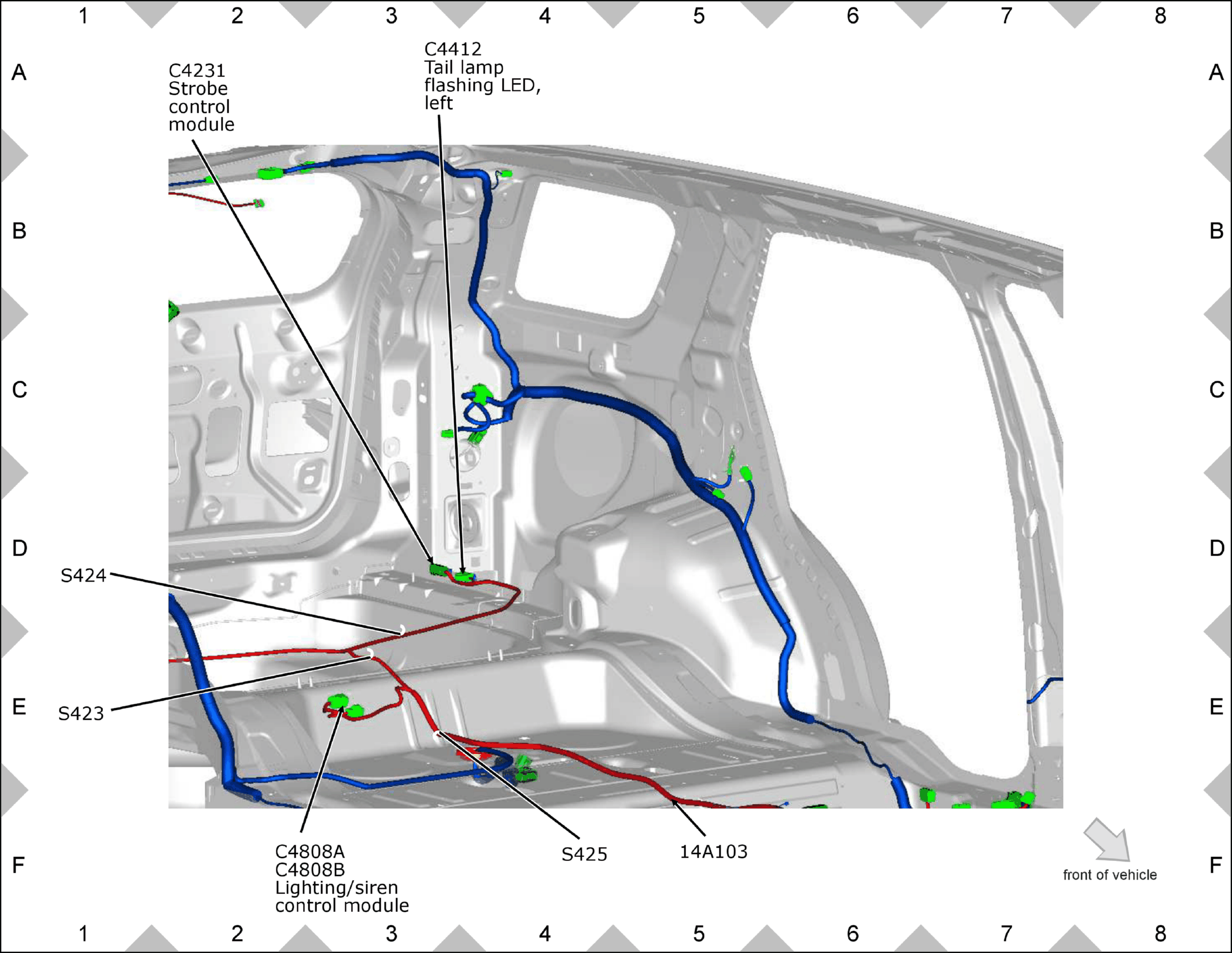

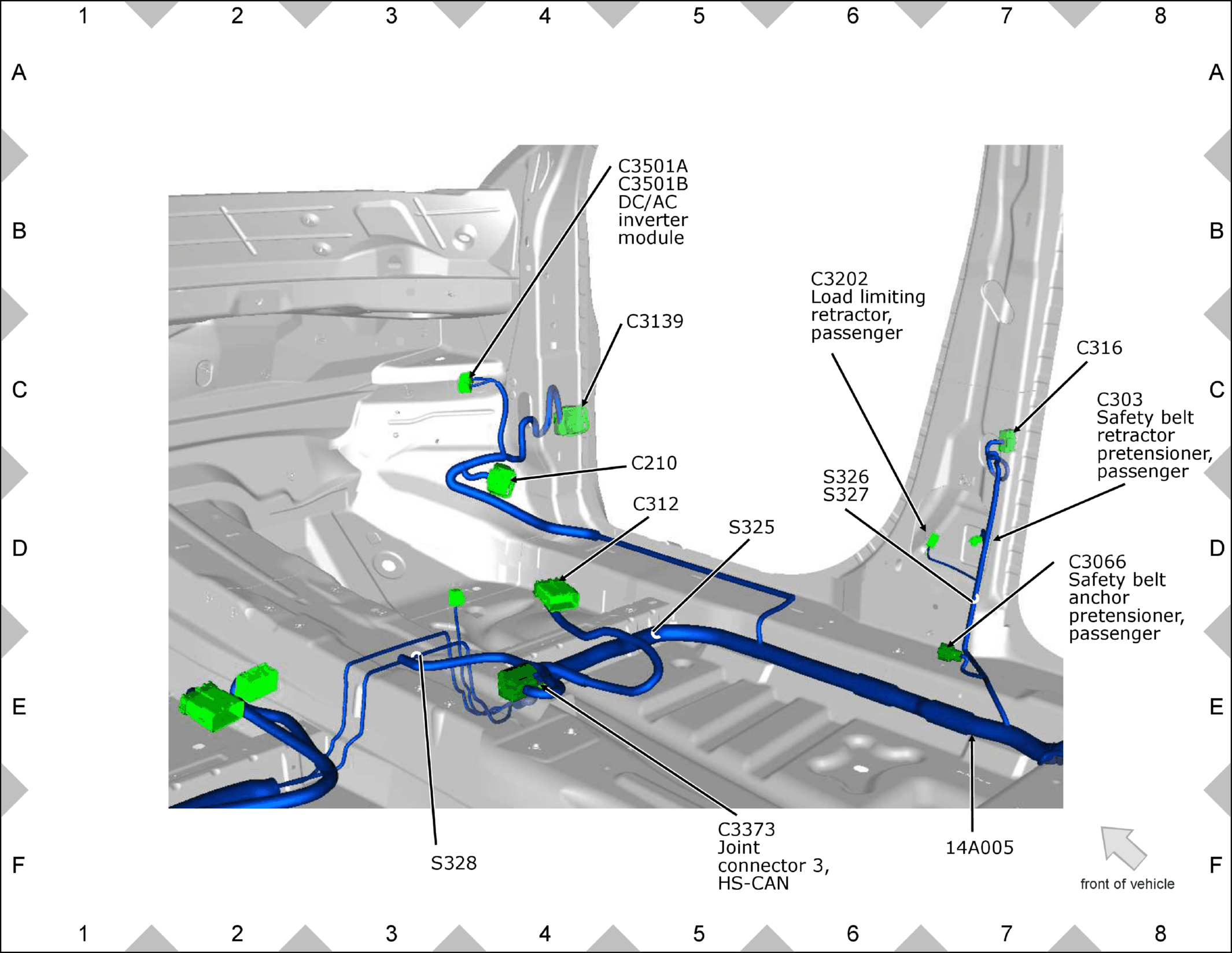

GFDW11815Courtesy of FORD MOTOR COMPANY

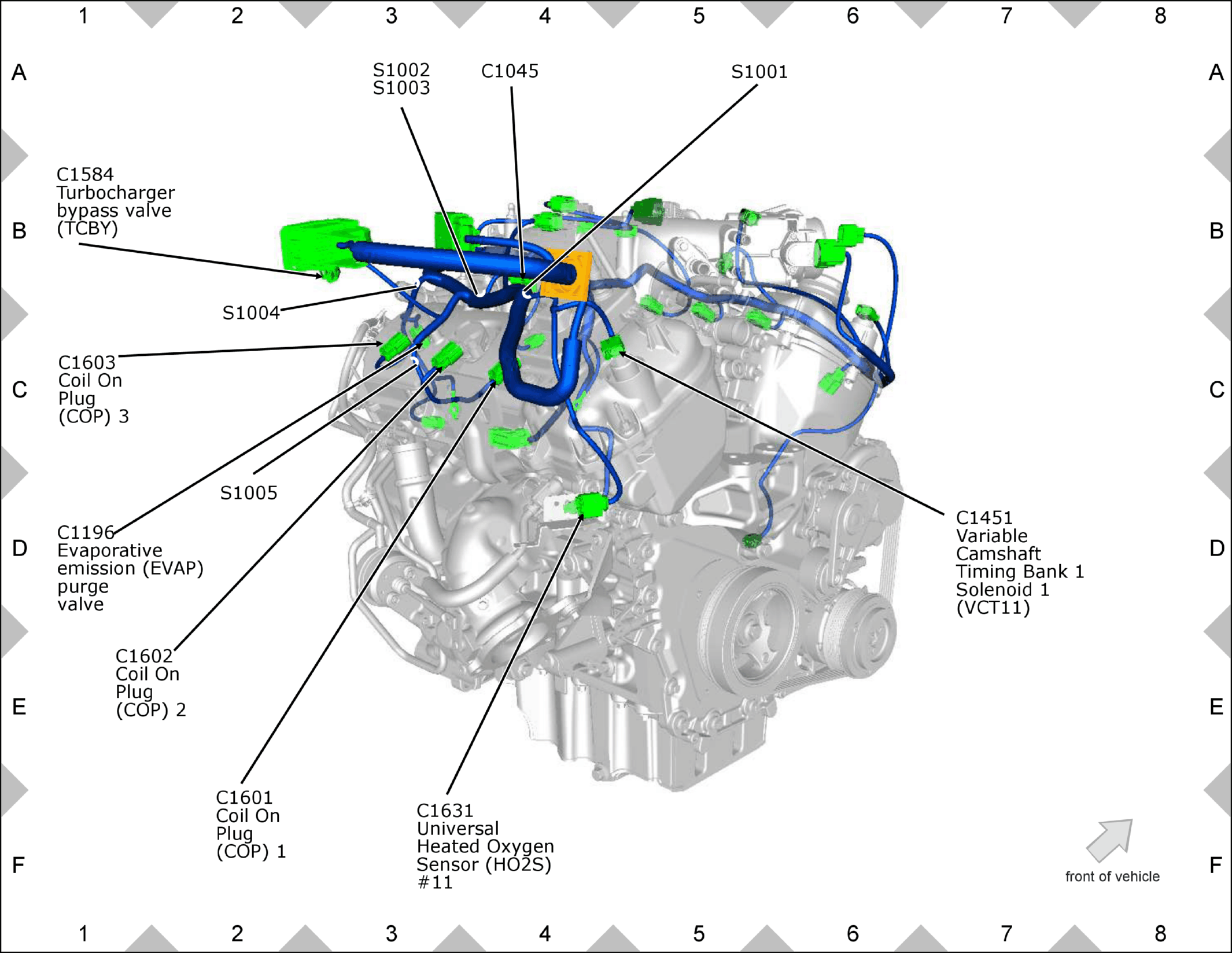

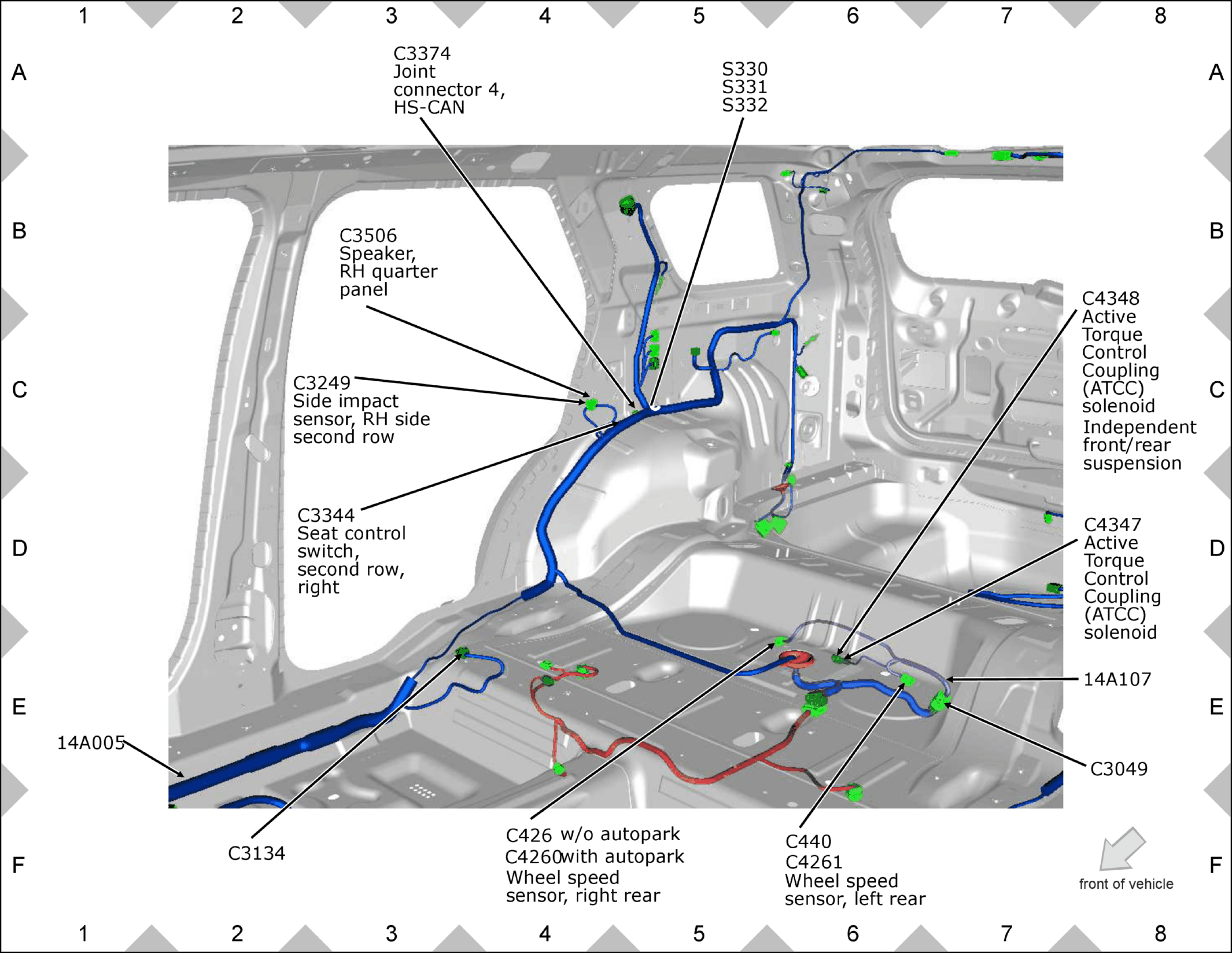

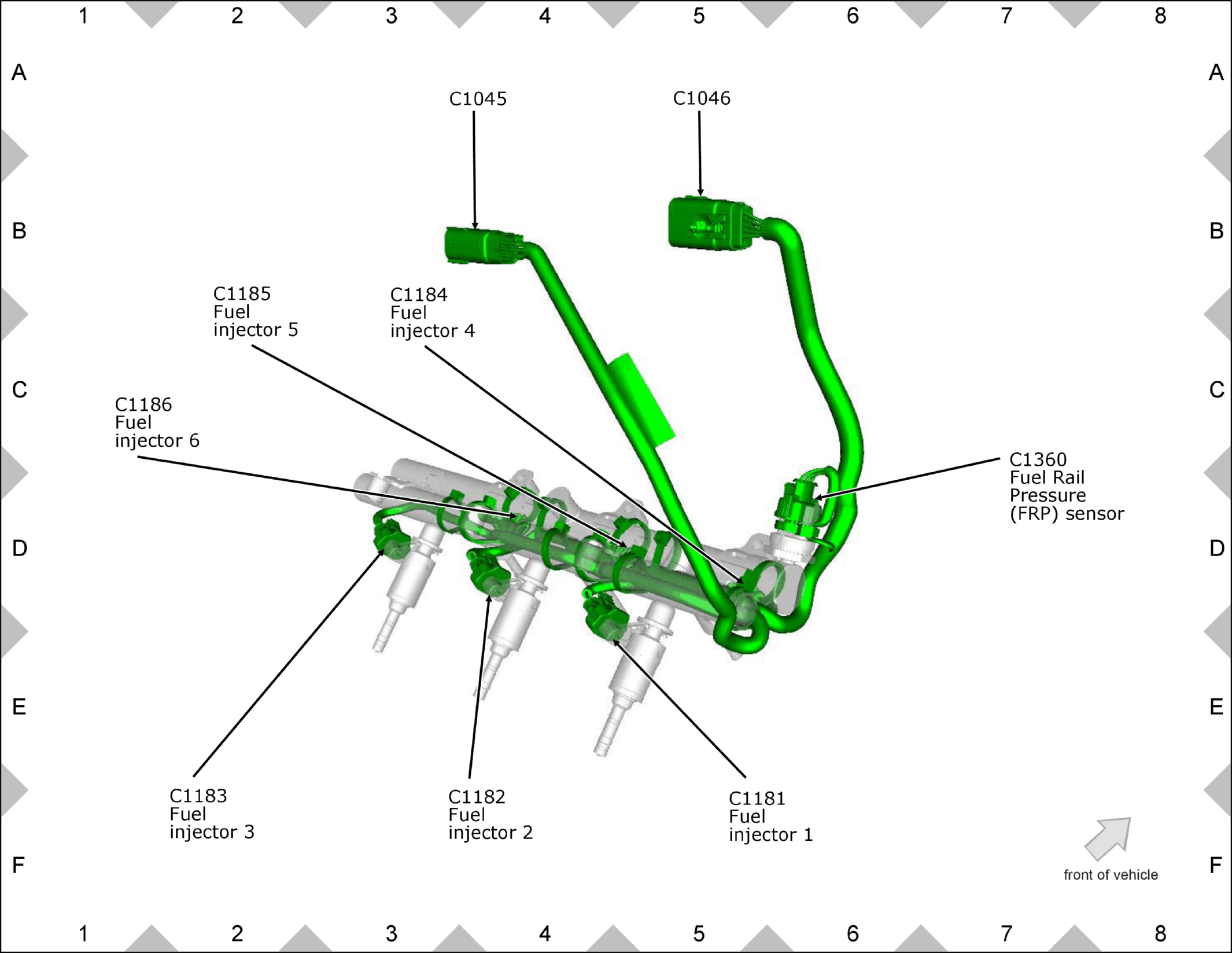

GFDW11816Courtesy of FORD MOTOR COMPANY

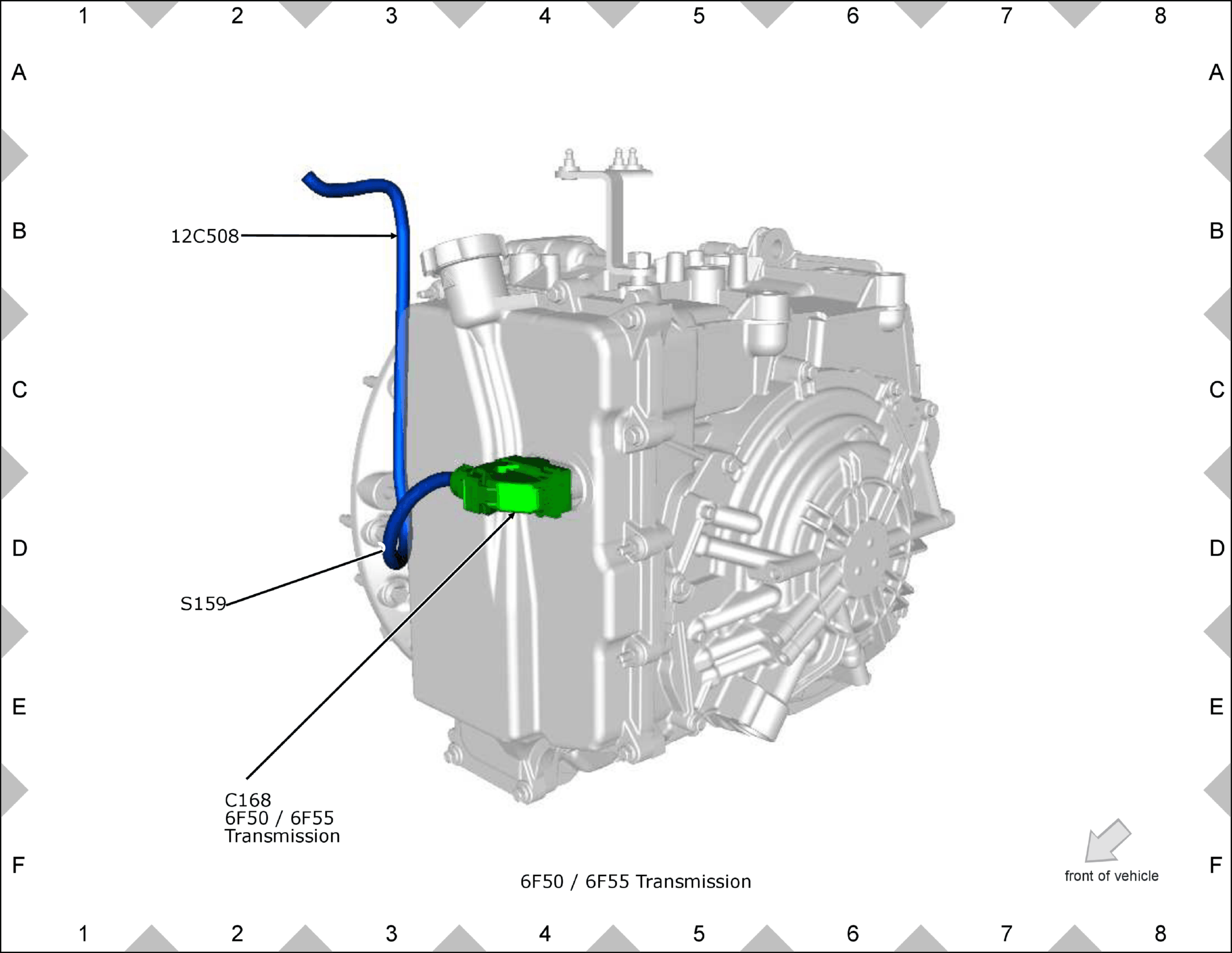

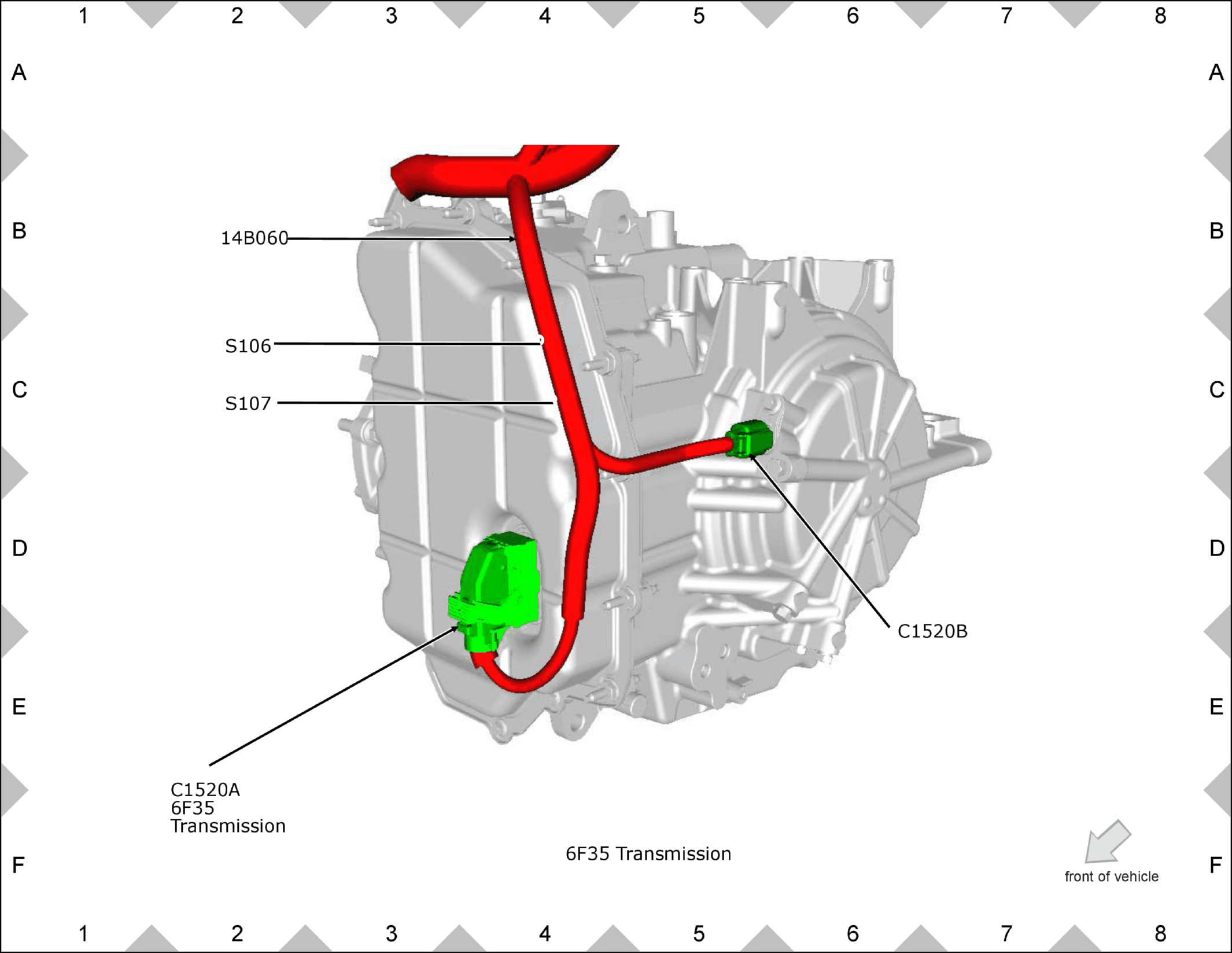

GFDW11817Courtesy of FORD MOTOR COMPANY
GFDW11818Courtesy of FORD MOTOR COMPANY

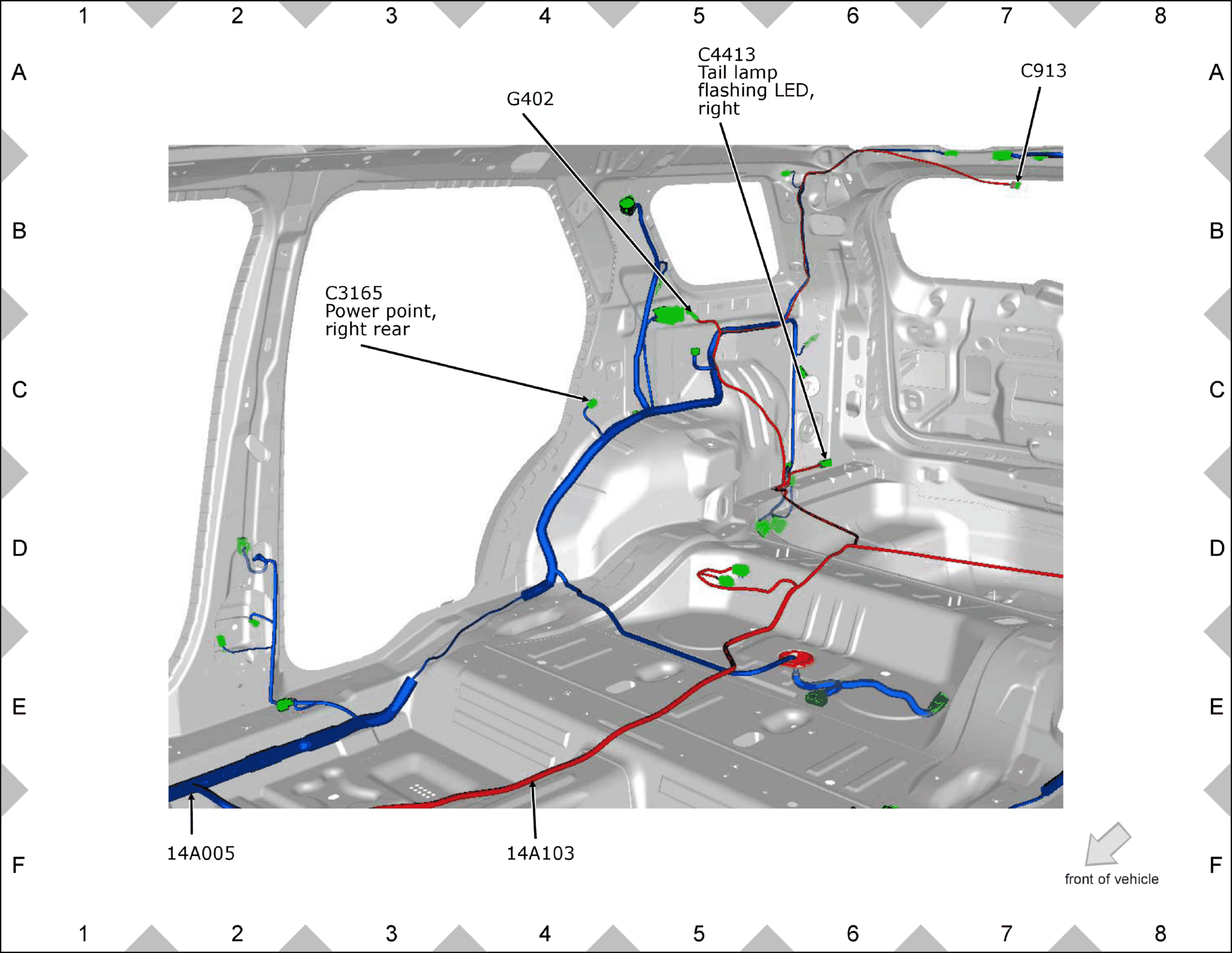

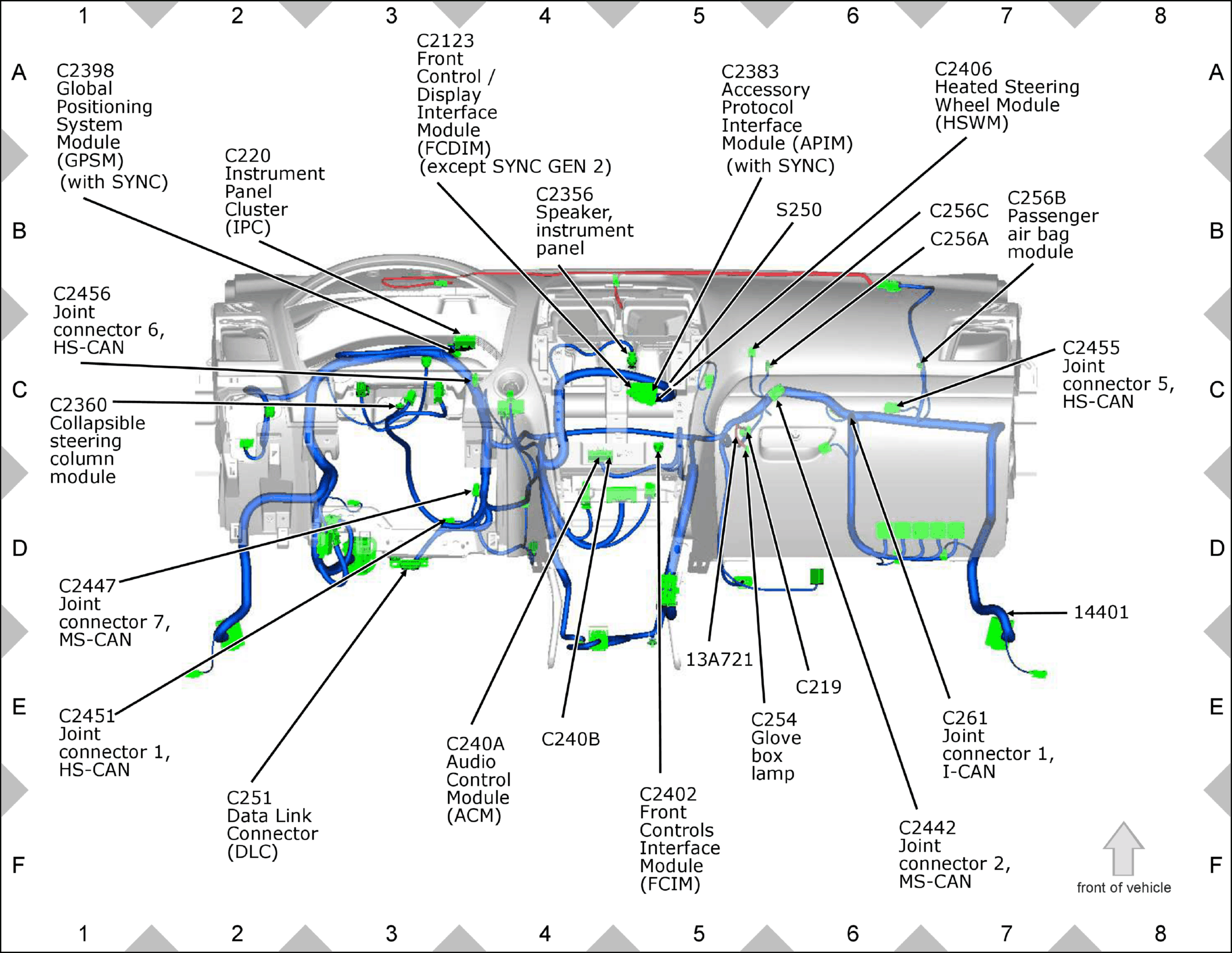

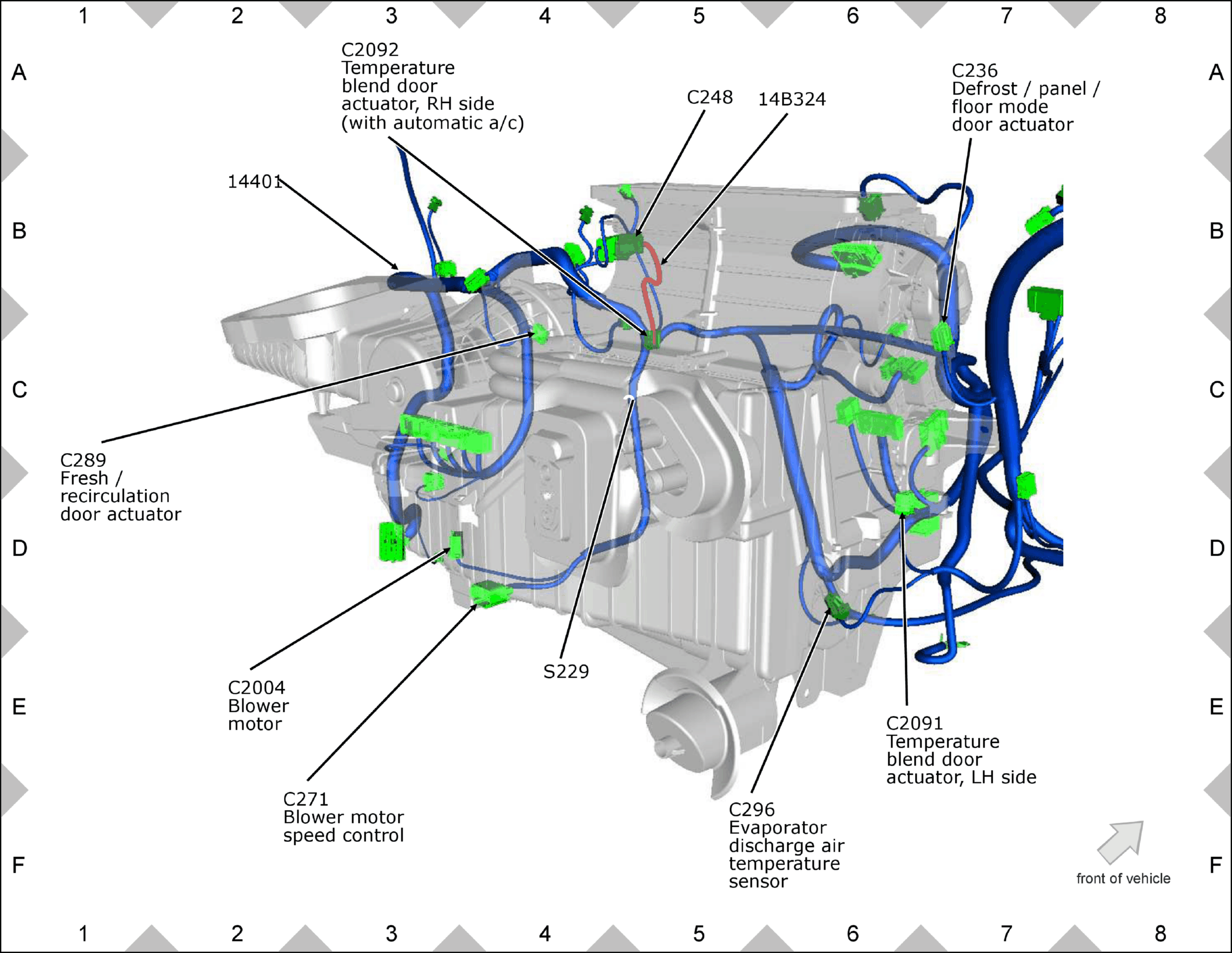

GFDW11819Courtesy of FORD MOTOR COMPANY

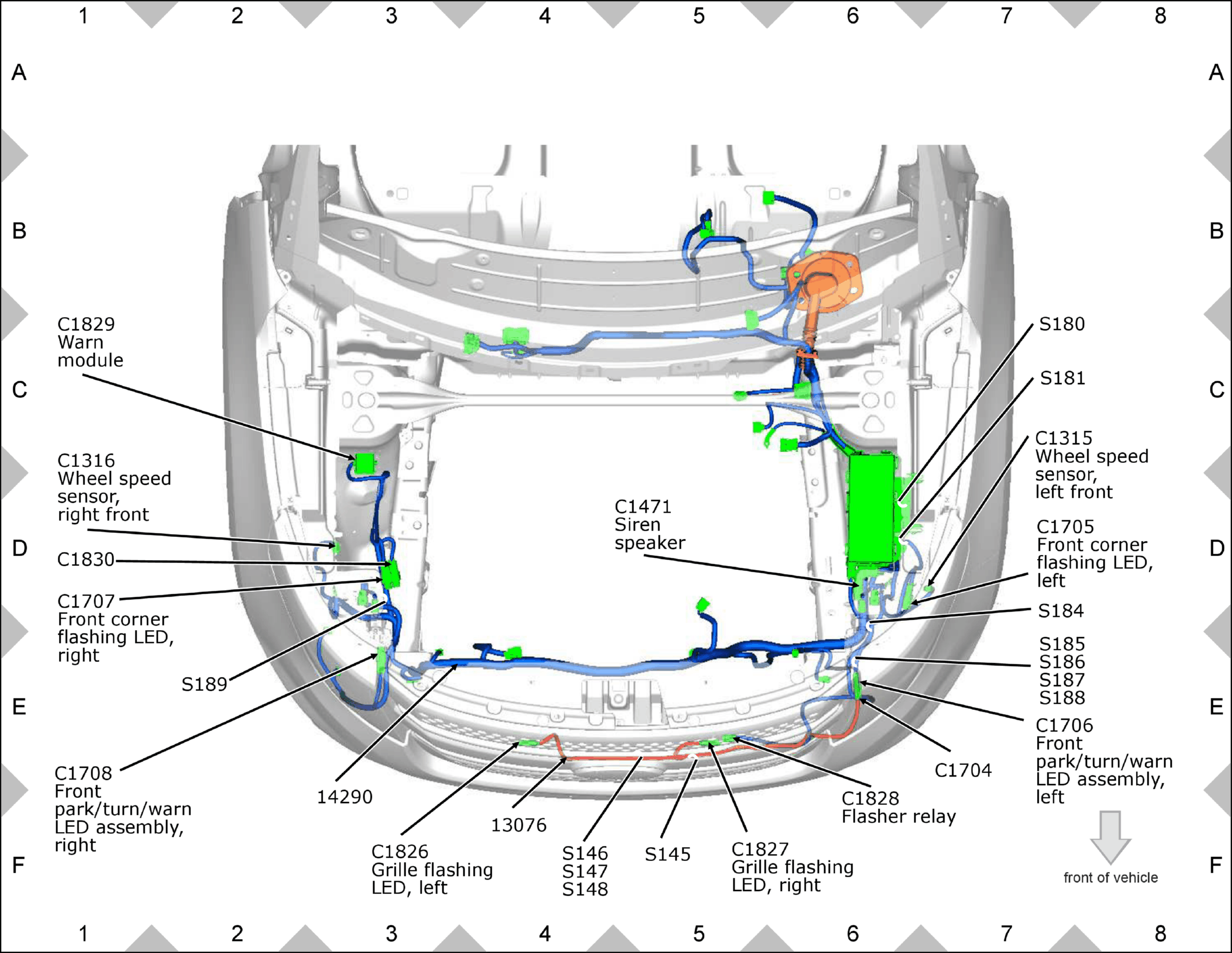

GFDW11820Courtesy of FORD MOTOR COMPANY

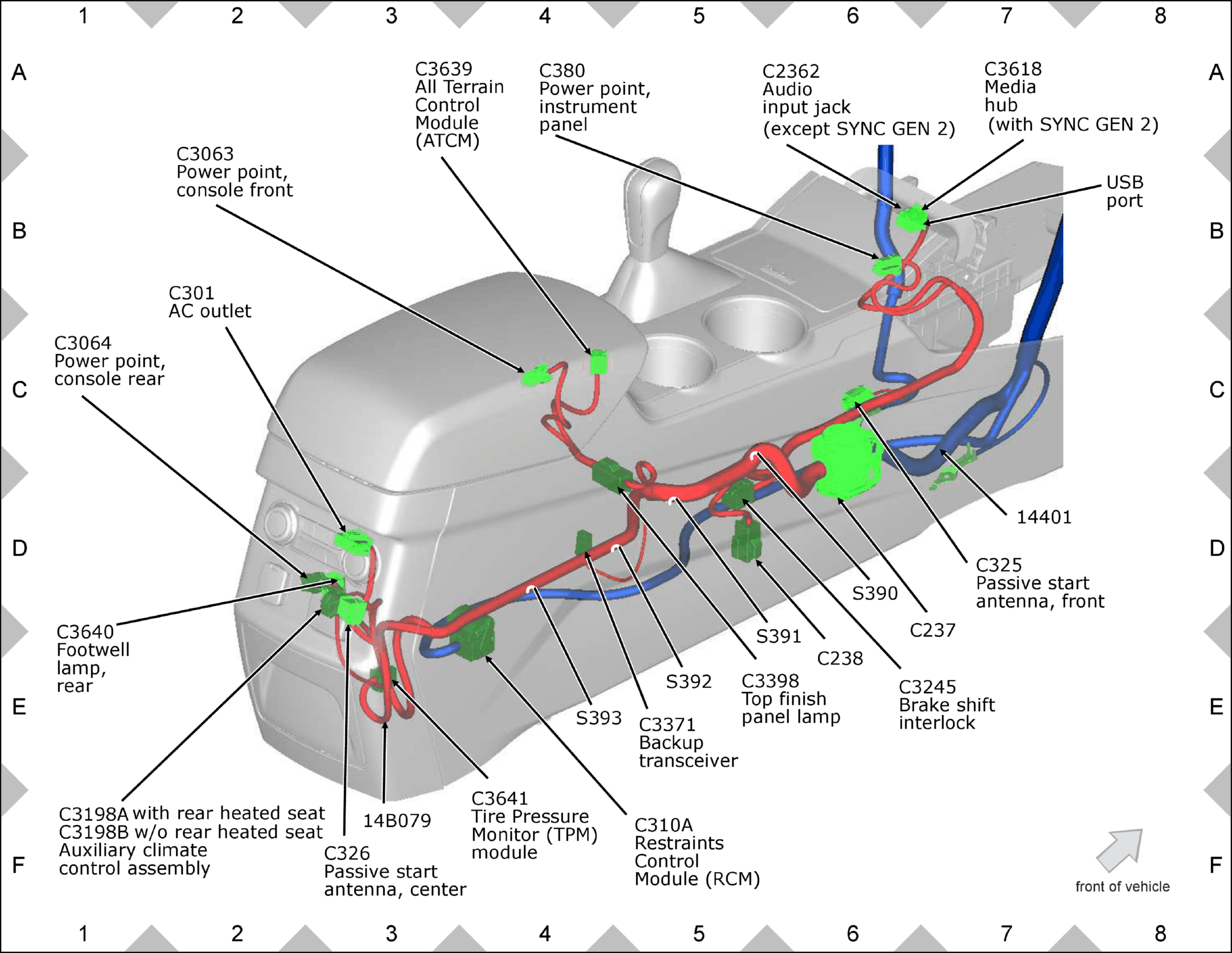

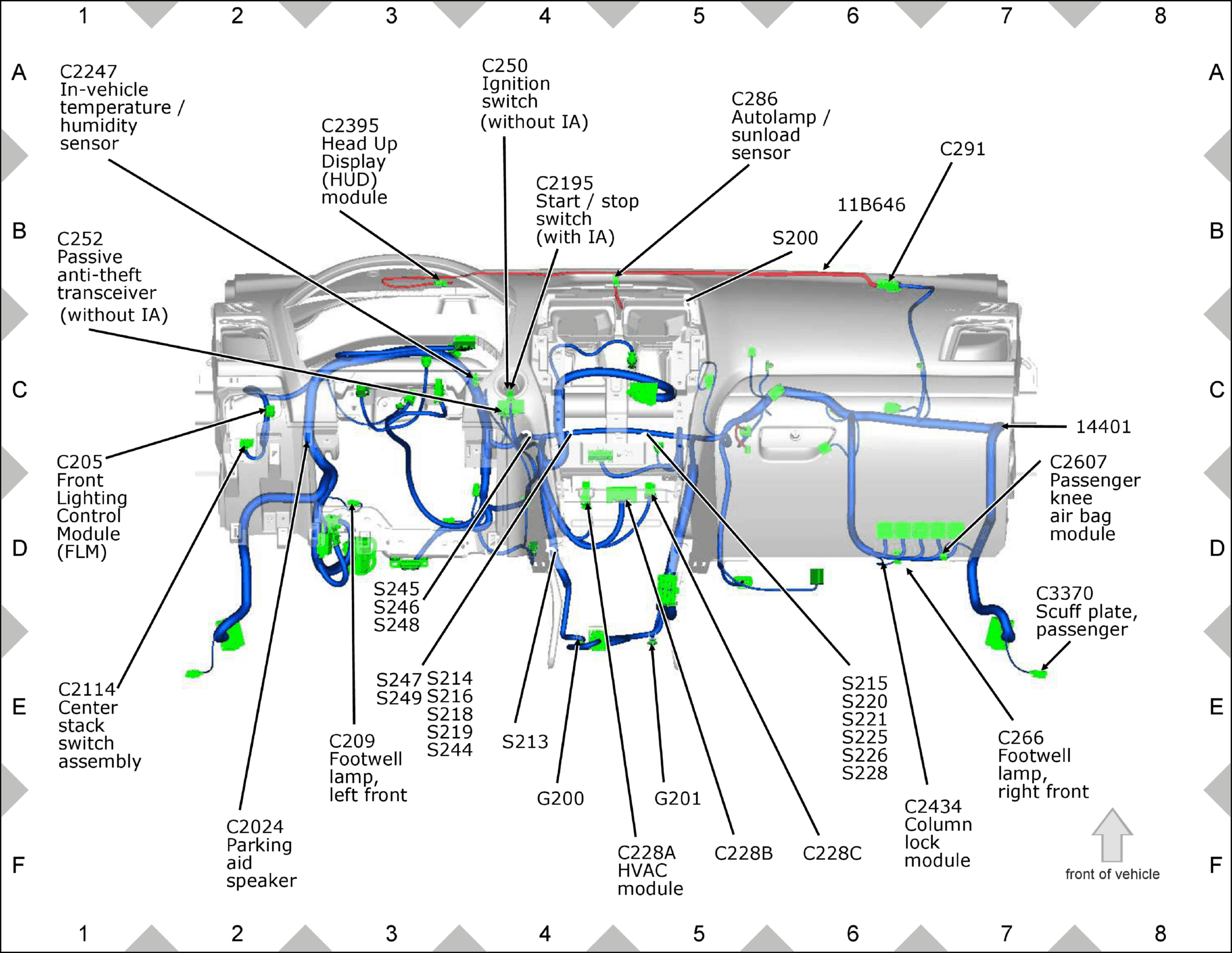

GFDW11821Courtesy of FORD MOTOR COMPANY

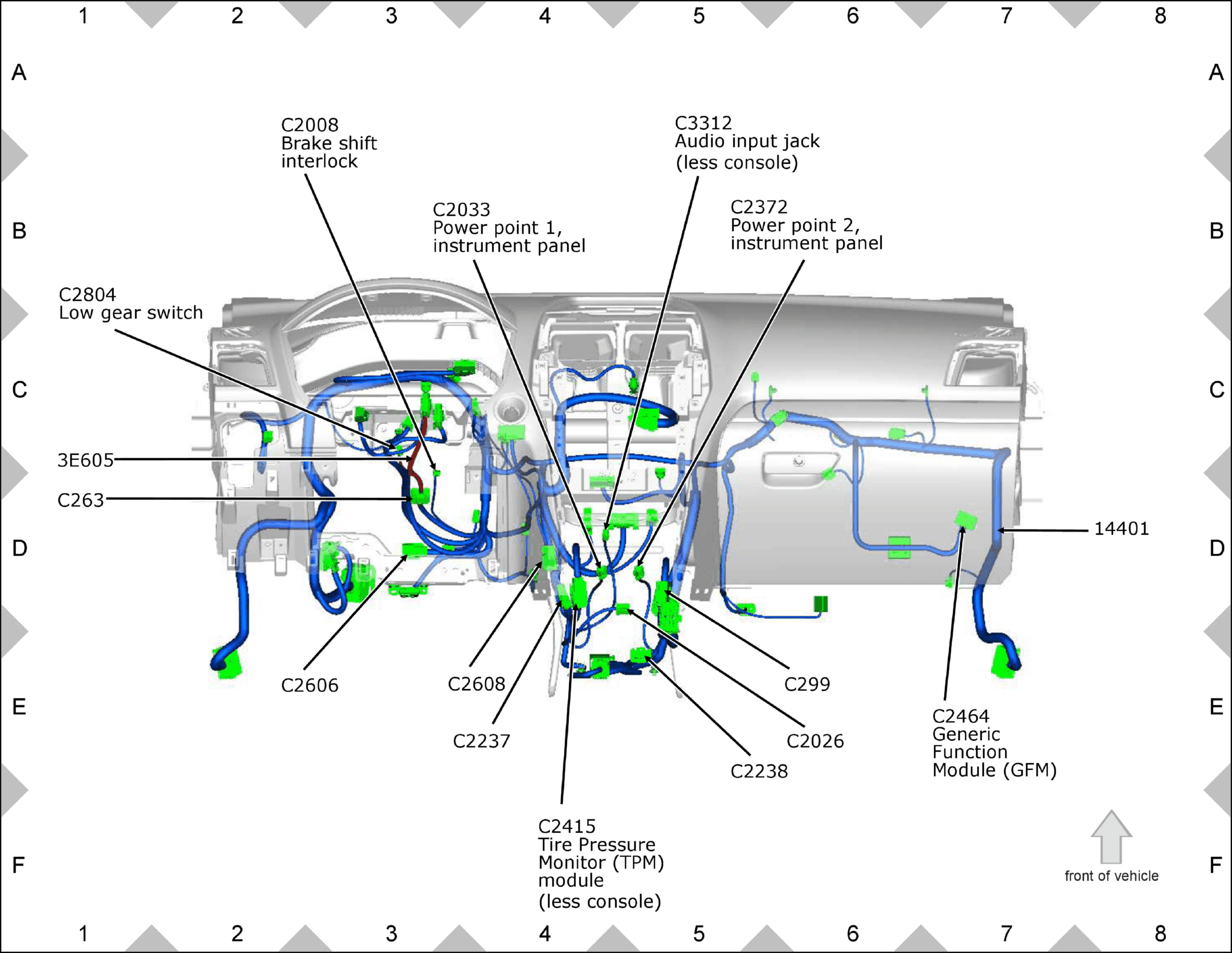

GFDW11822Courtesy of FORD MOTOR COMPANY

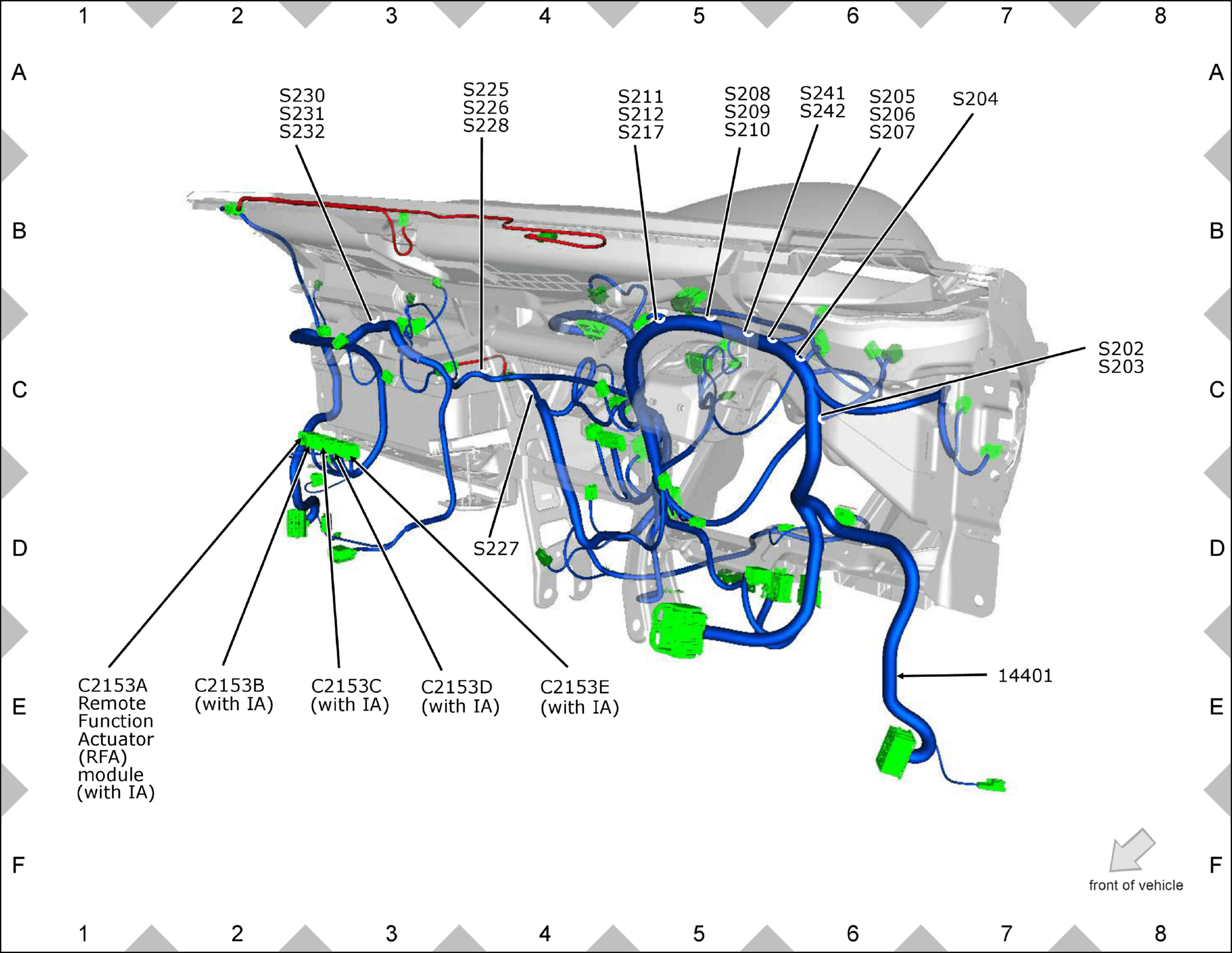

GFDW11823Courtesy of FORD MOTOR COMPANY
GFDW11824Courtesy of FORD MOTOR COMPANY

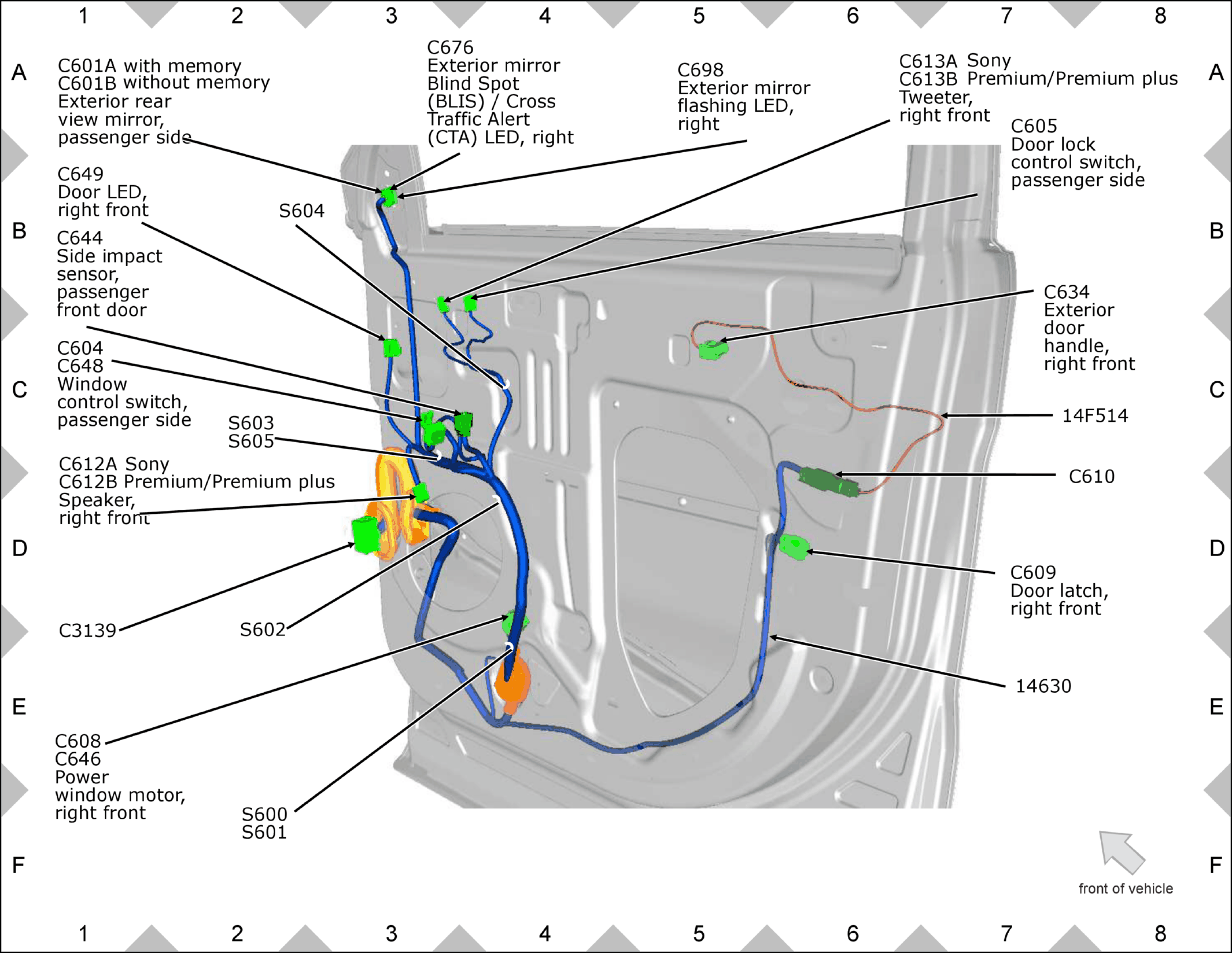

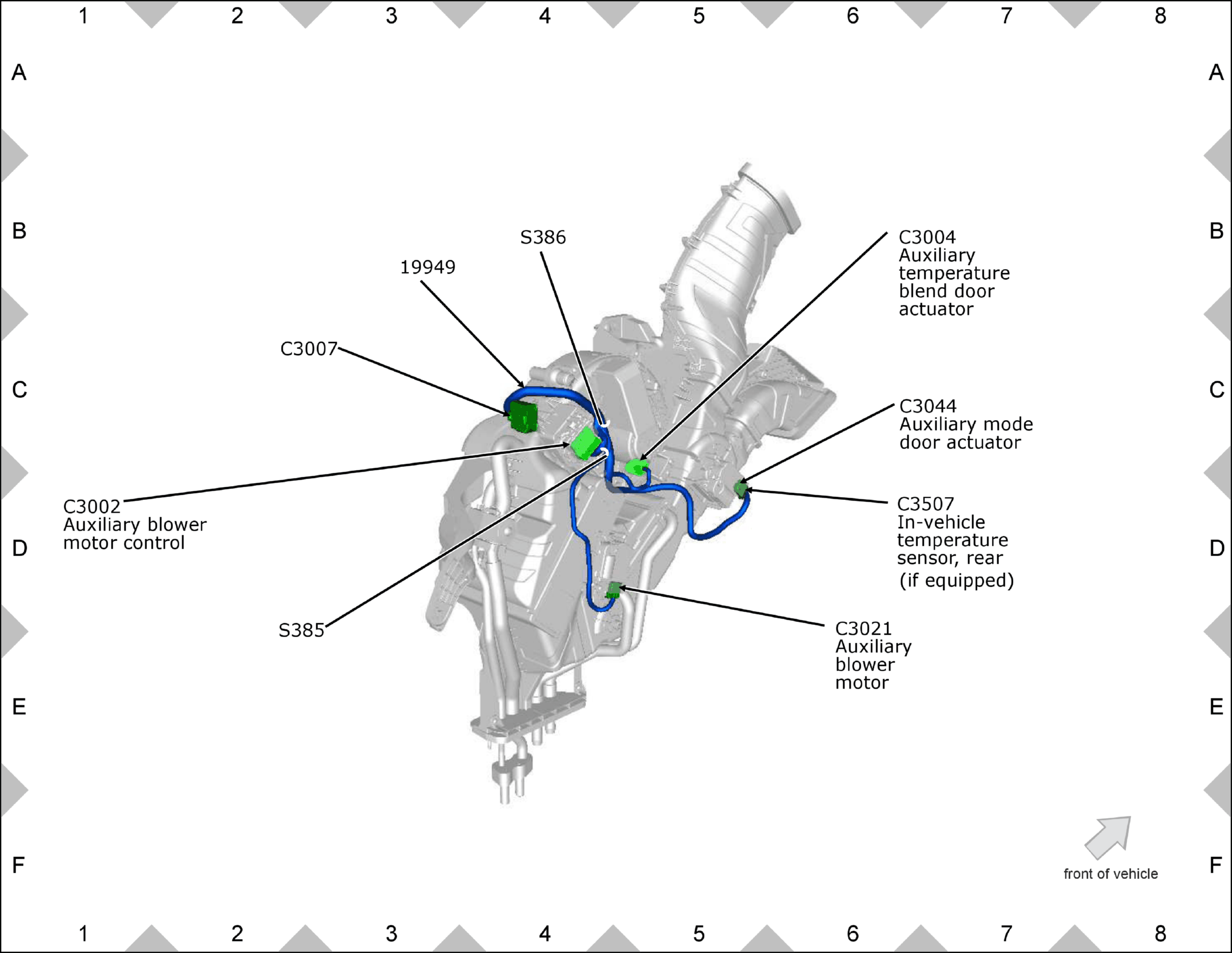

GFDW11825Courtesy of FORD MOTOR COMPANY

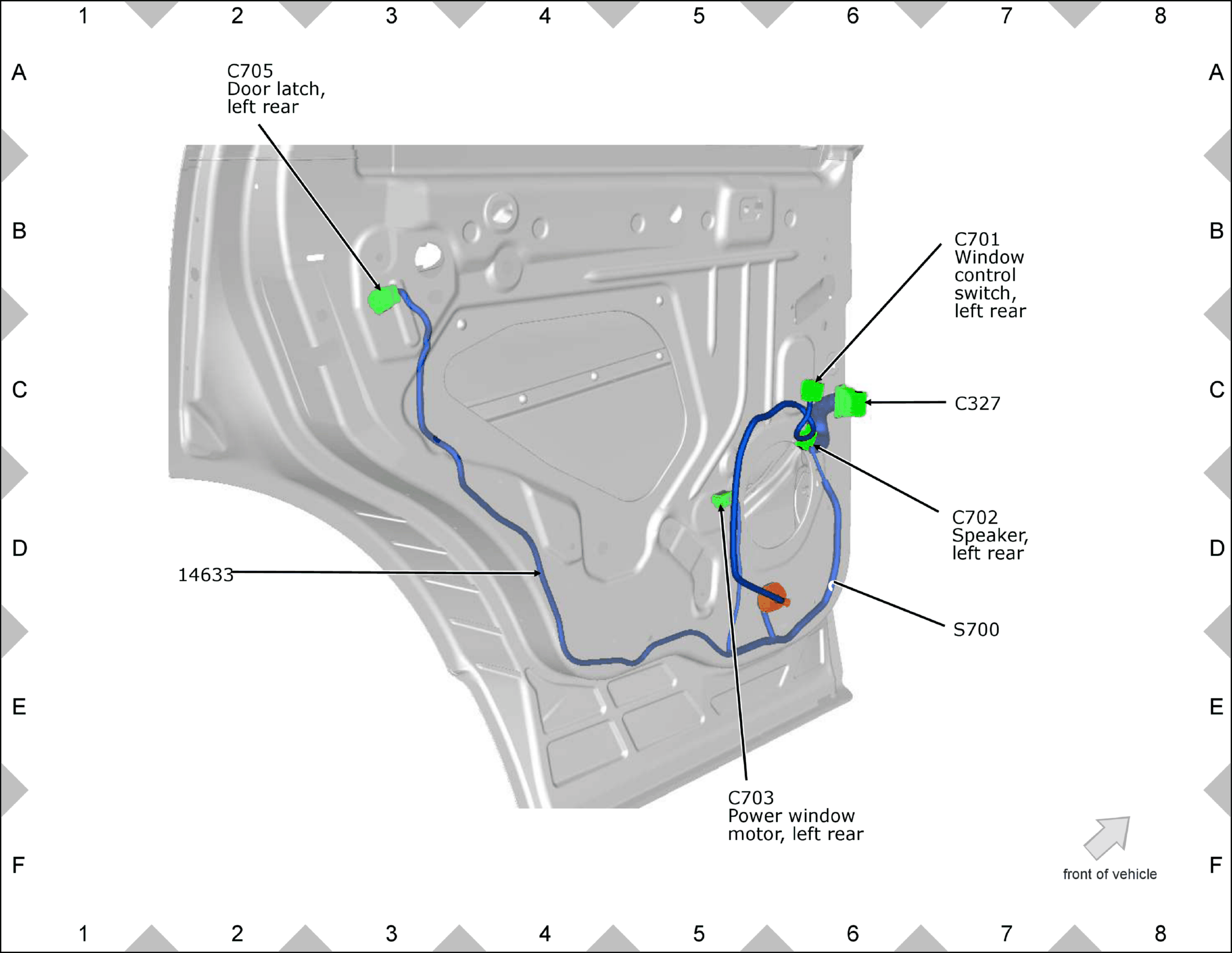

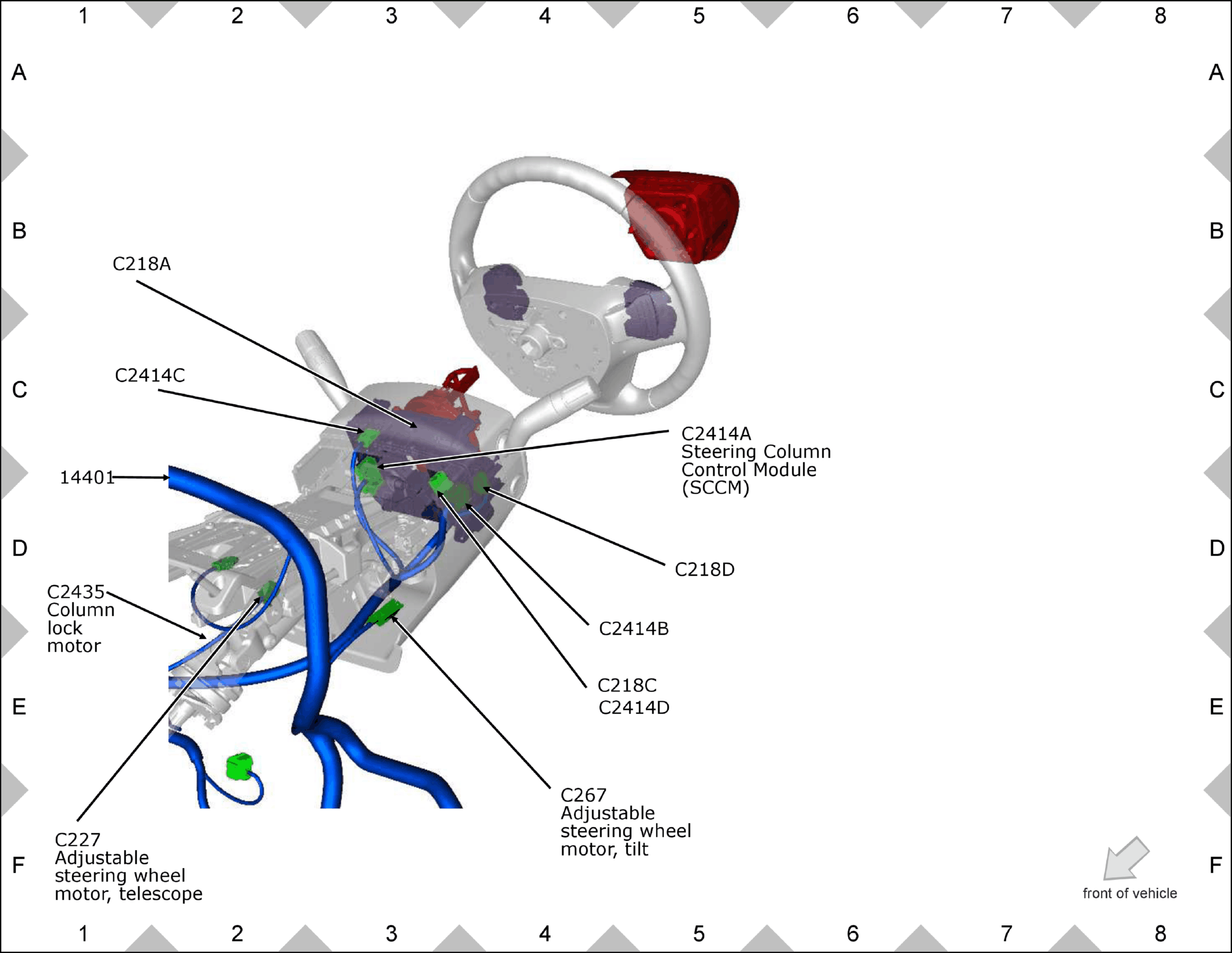

GFDW11826Courtesy of FORD MOTOR COMPANY

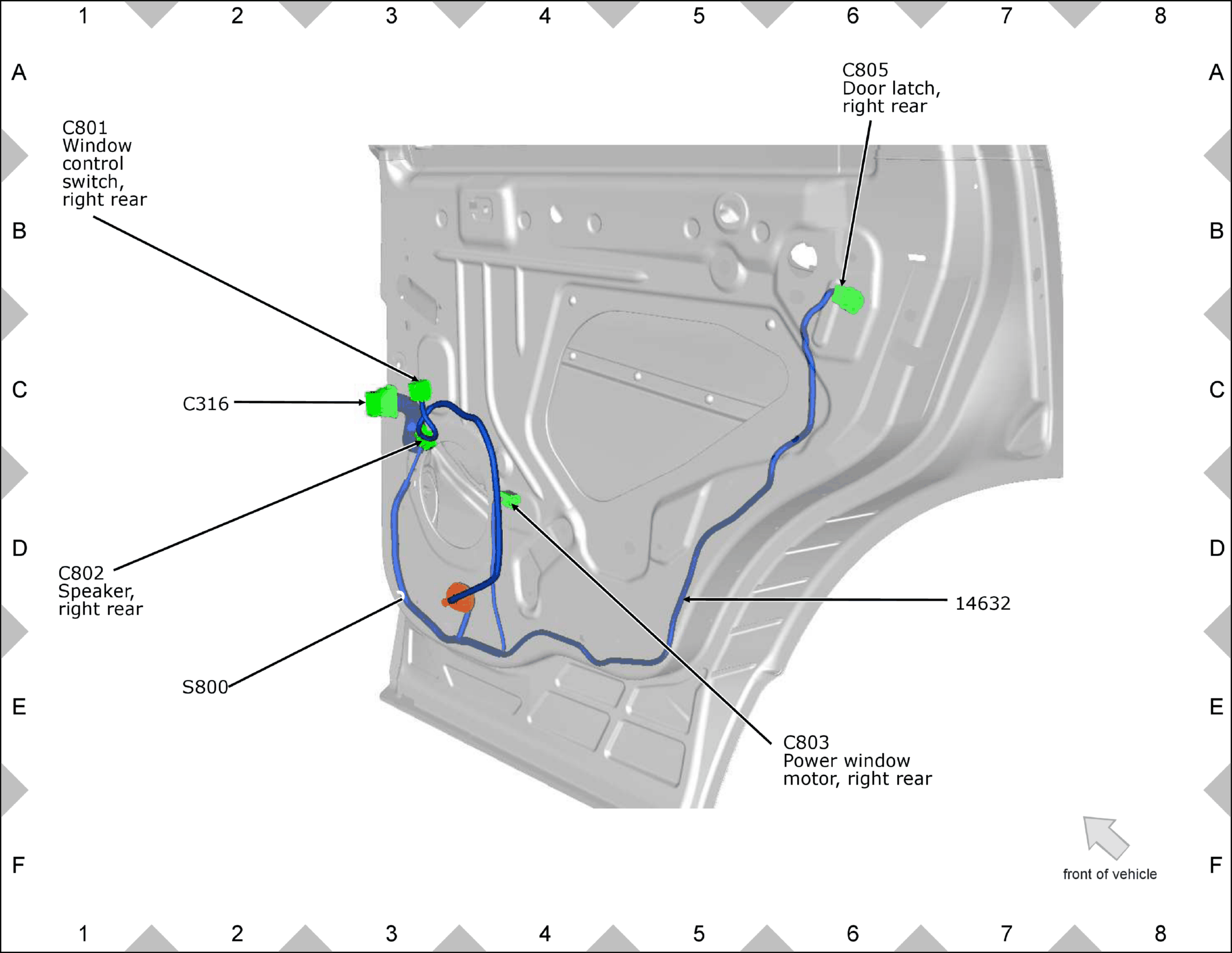

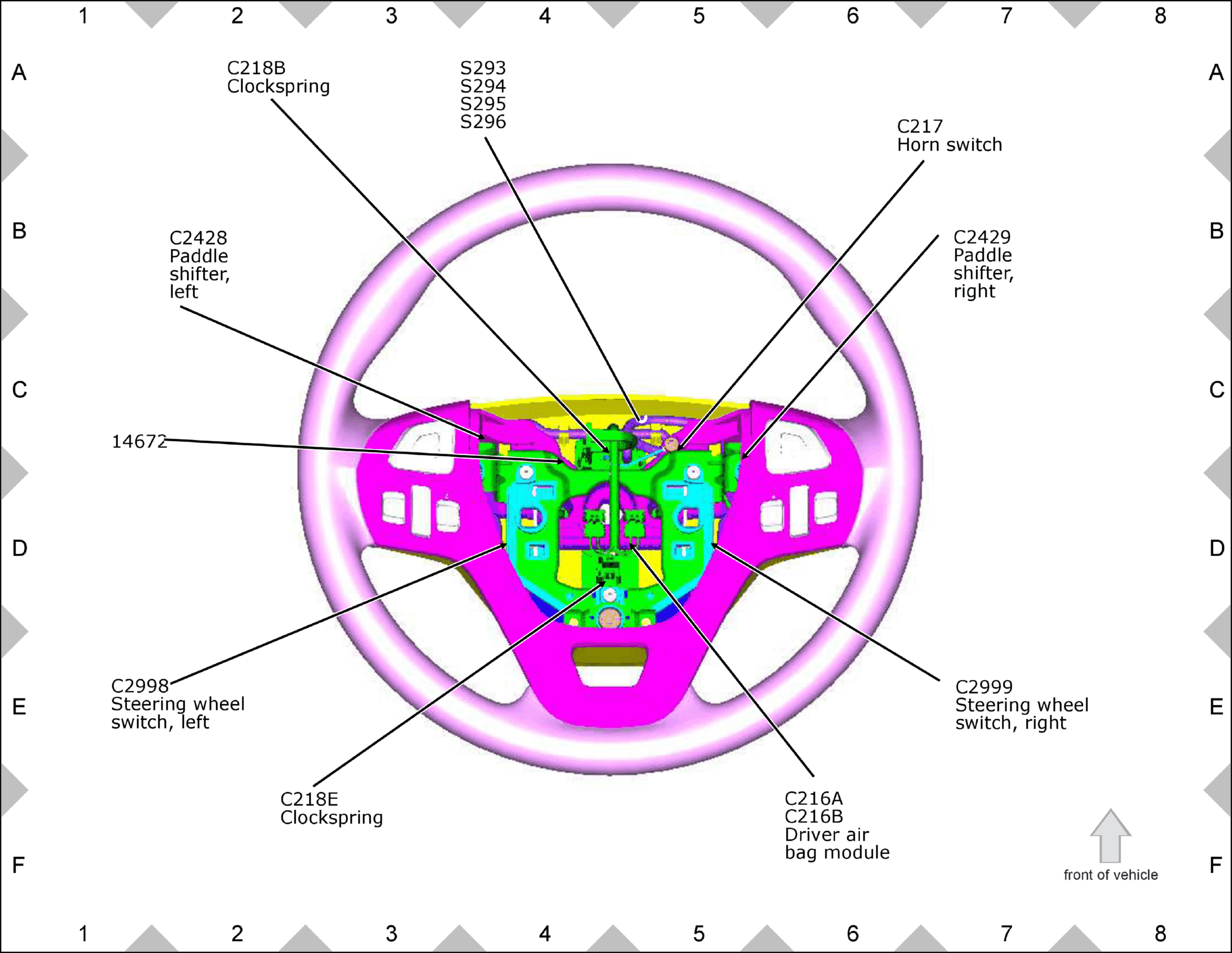

GFDW11827Courtesy of FORD MOTOR COMPANY

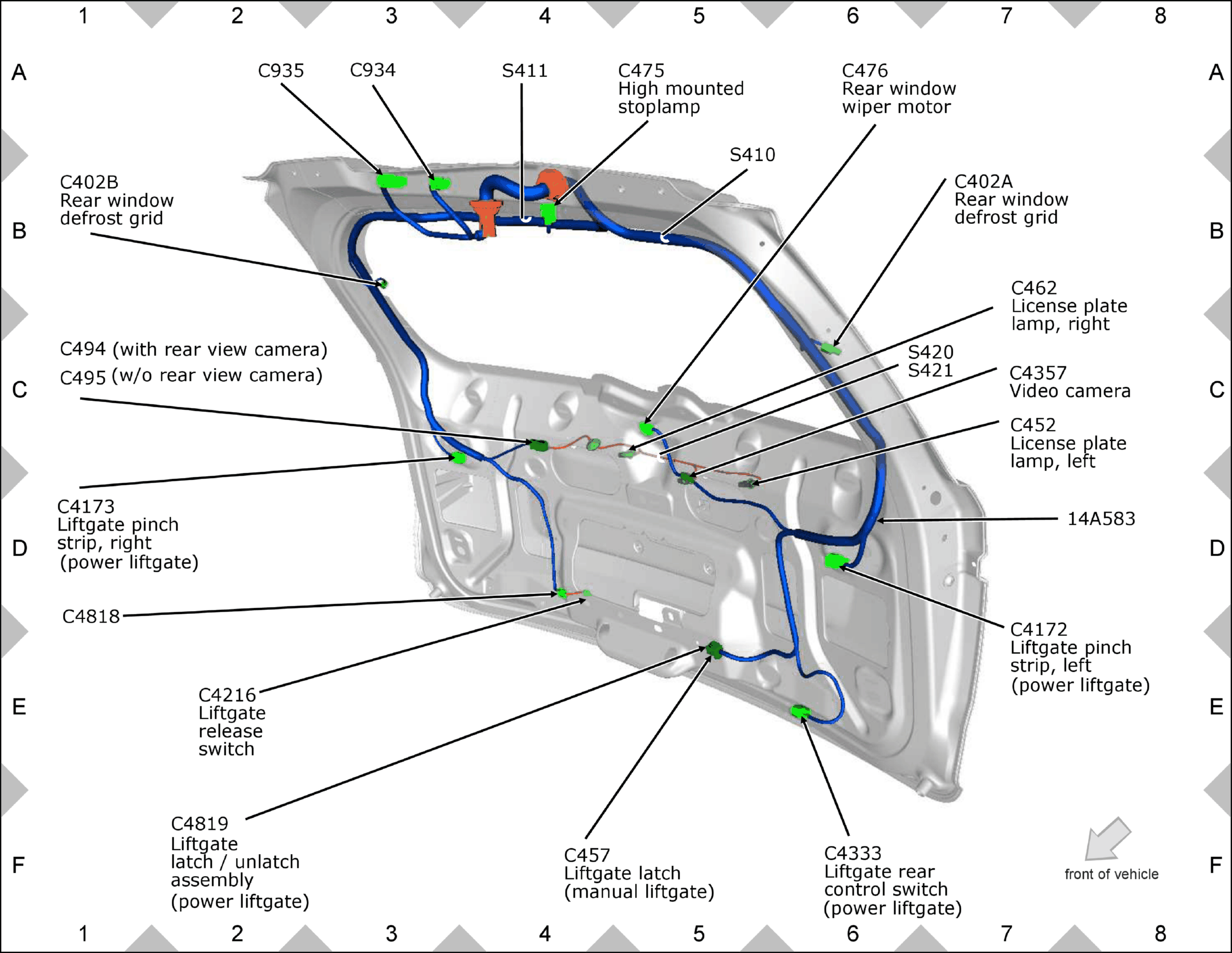

GFDW11828Courtesy of FORD MOTOR COMPANY

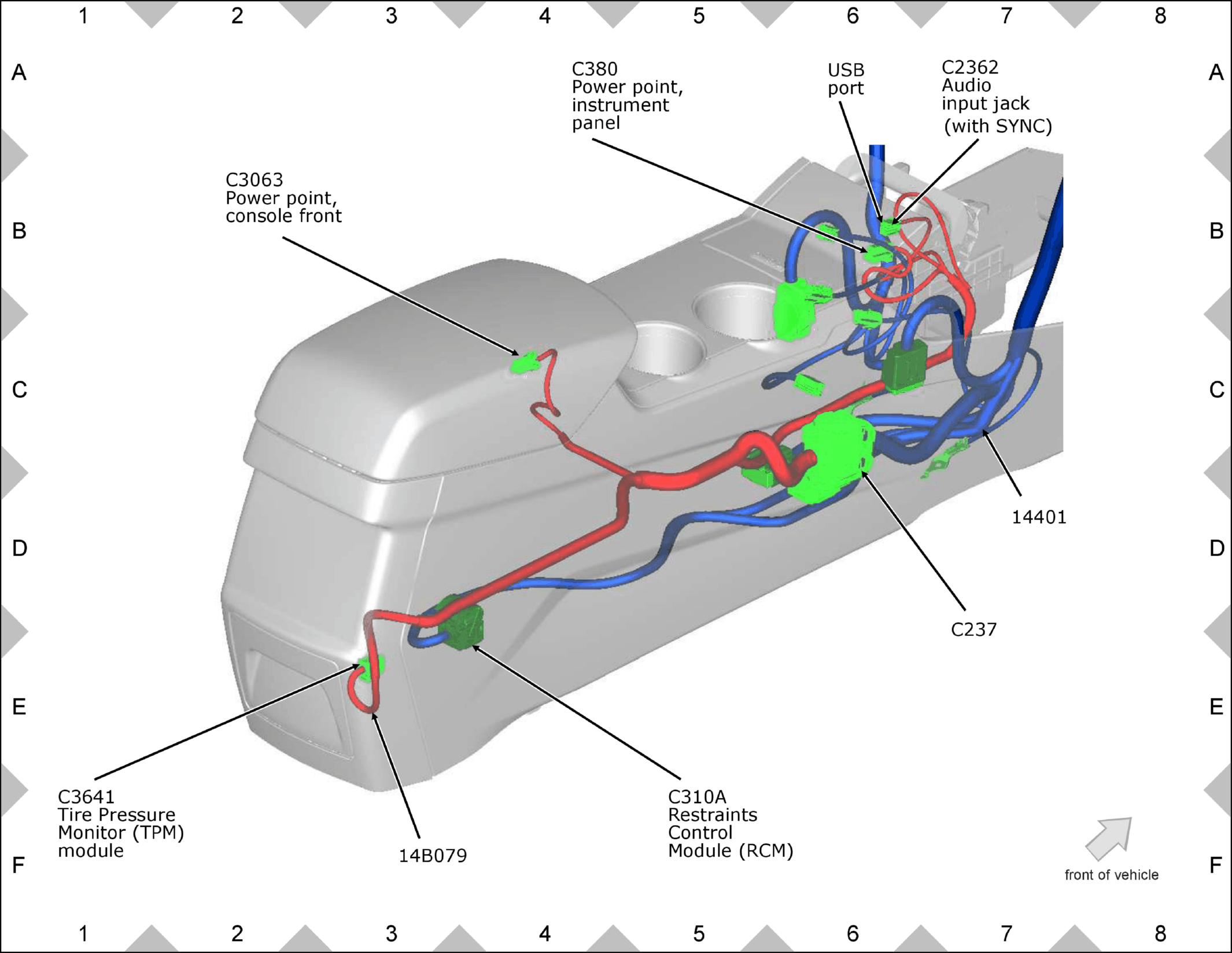

GFDW11829Courtesy of FORD MOTOR COMPANY

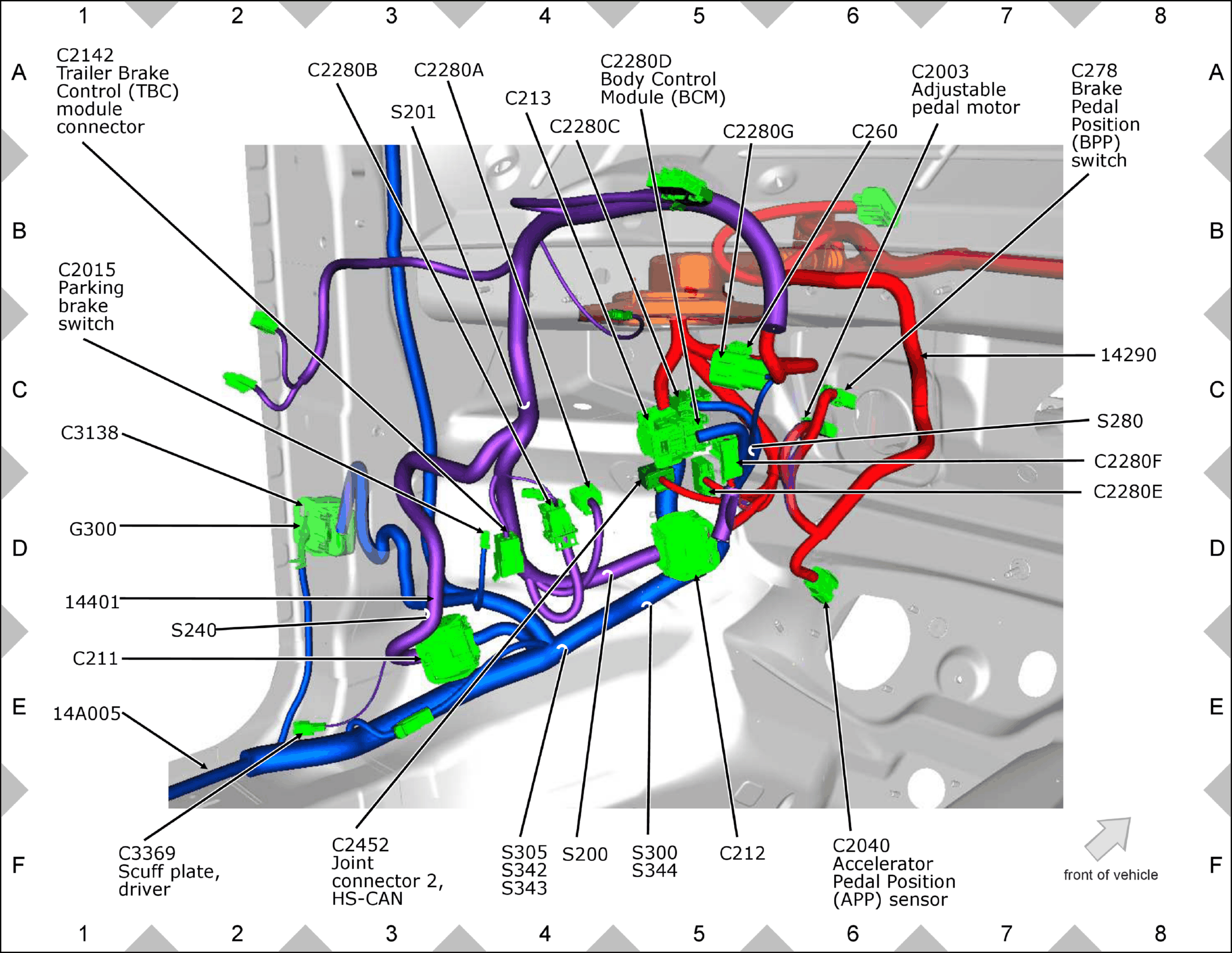

GFDW11830Courtesy of FORD MOTOR COMPANY
GFDW11831Courtesy of FORD MOTOR COMPANY
GFDW11832Courtesy of FORD MOTOR COMPANY

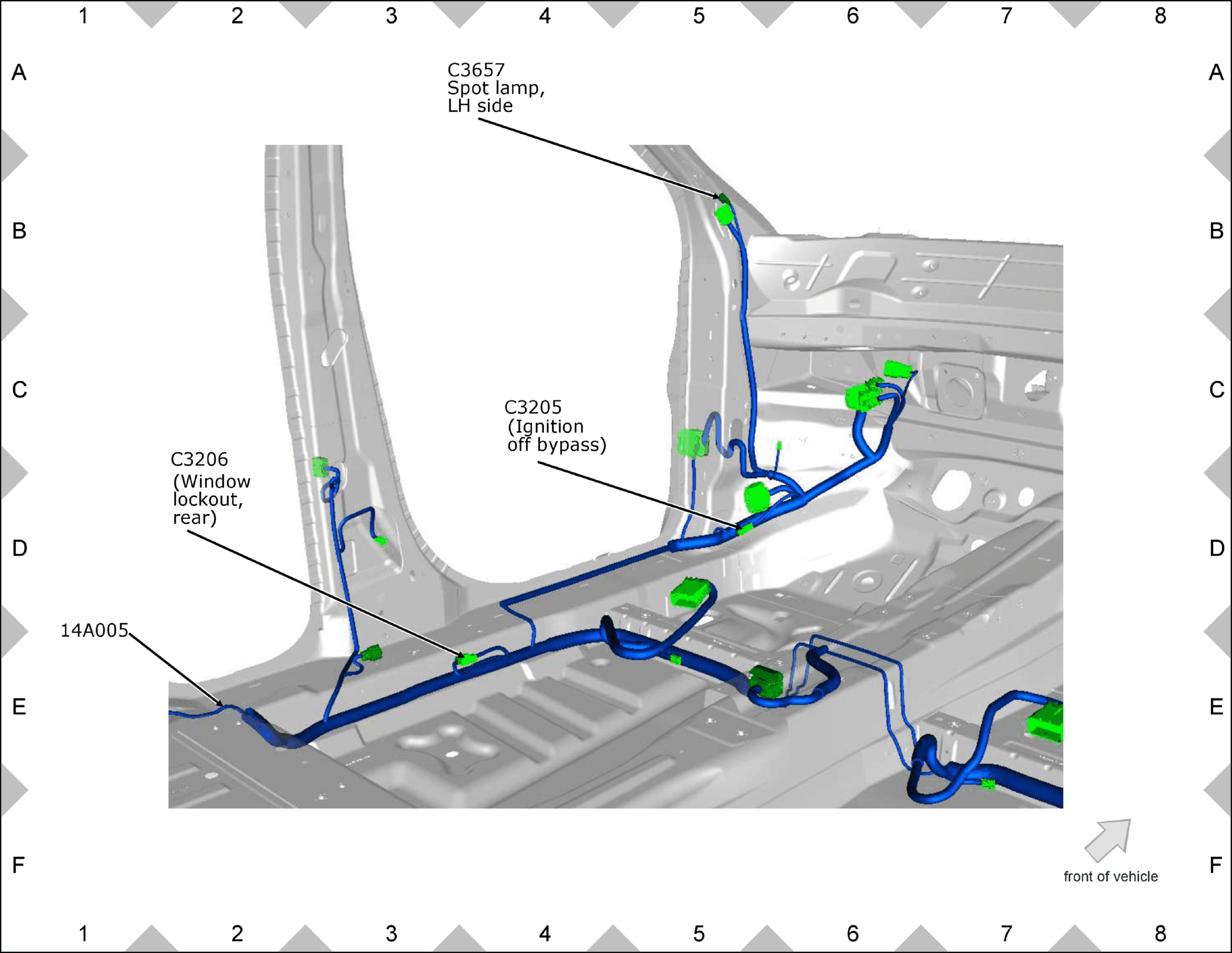

GFDW11833Courtesy of FORD MOTOR COMPANY
GFDW11834Courtesy of FORD MOTOR COMPANY

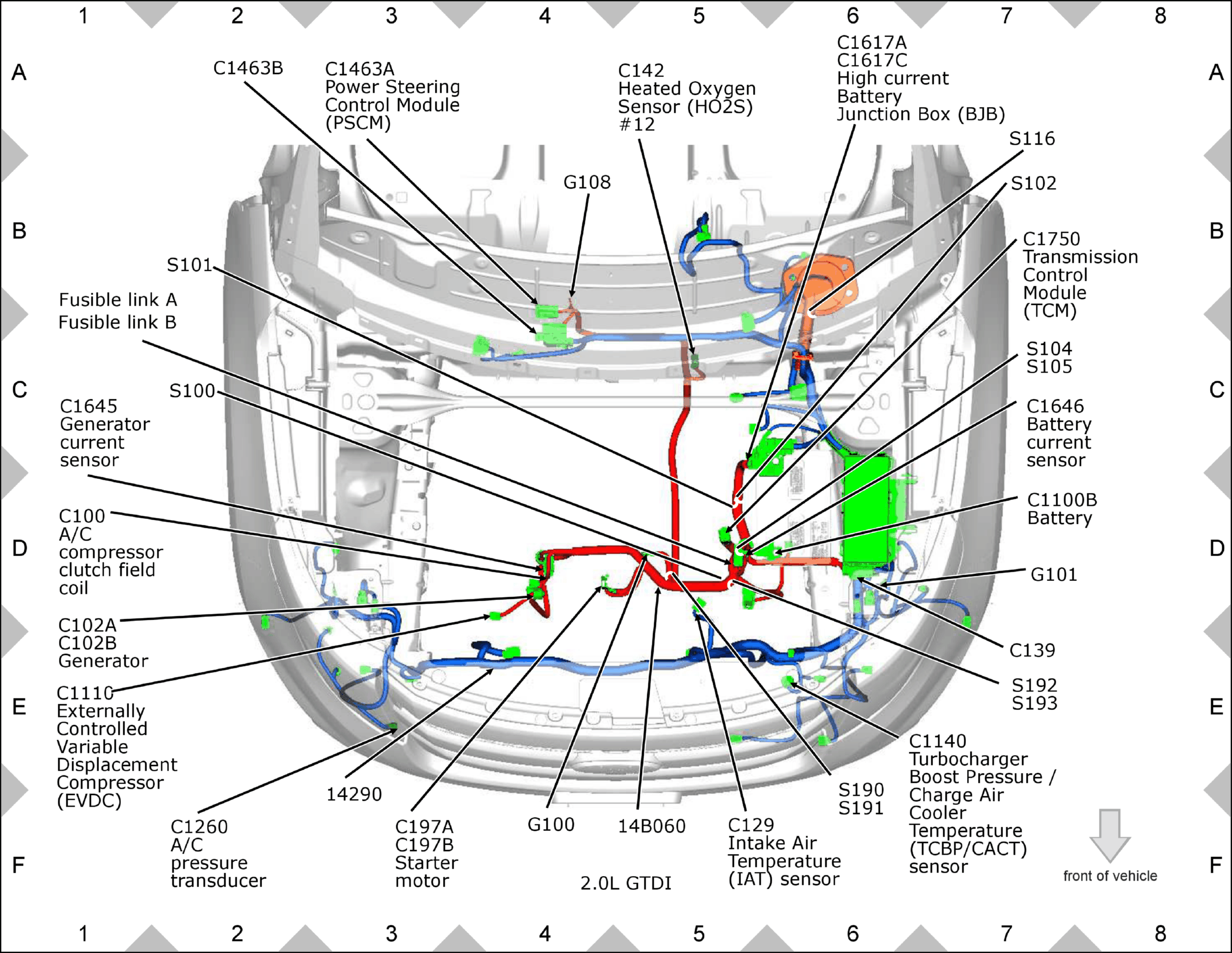

GFDW11835Courtesy of FORD MOTOR COMPANY

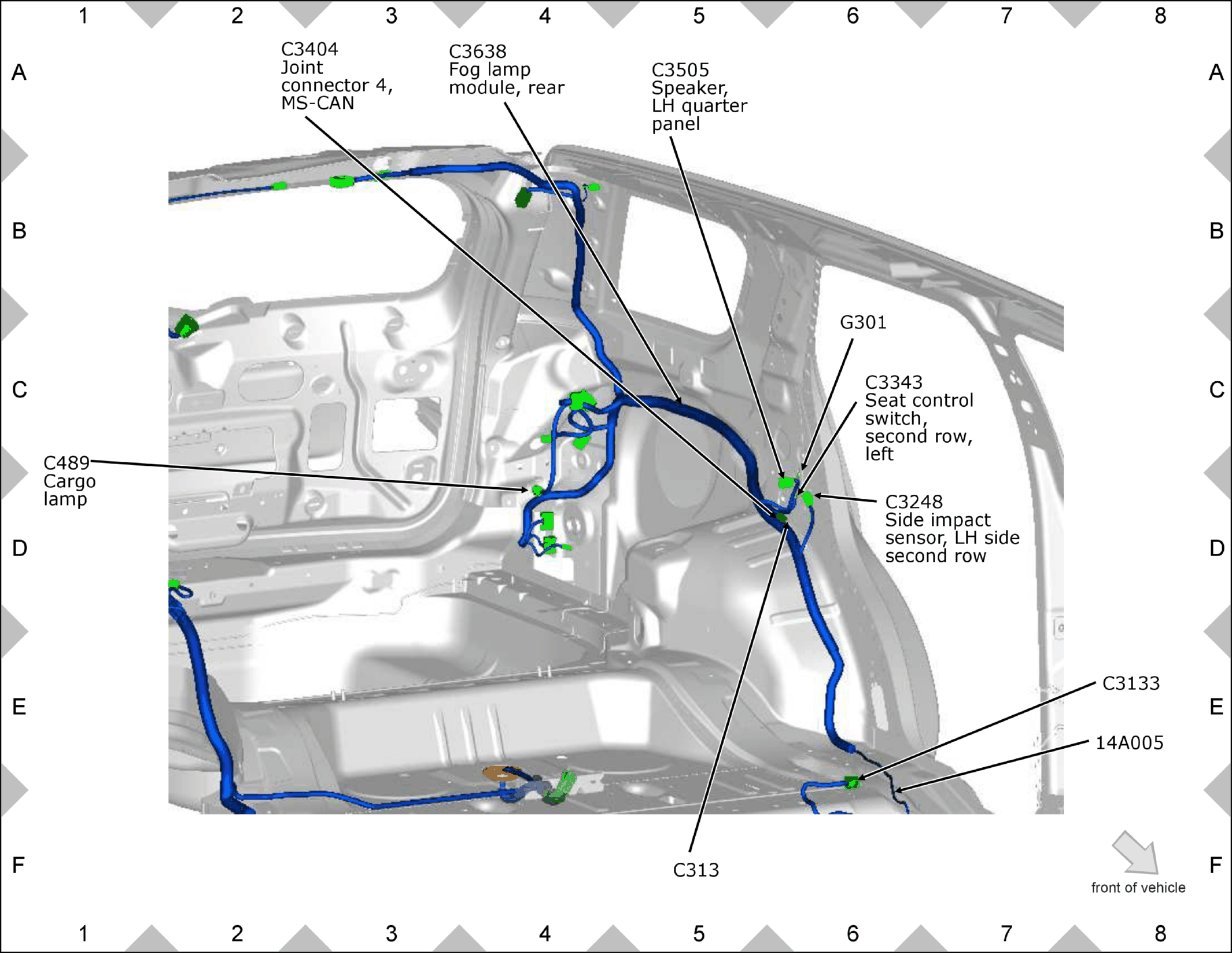

GFDW11836Courtesy of FORD MOTOR COMPANY

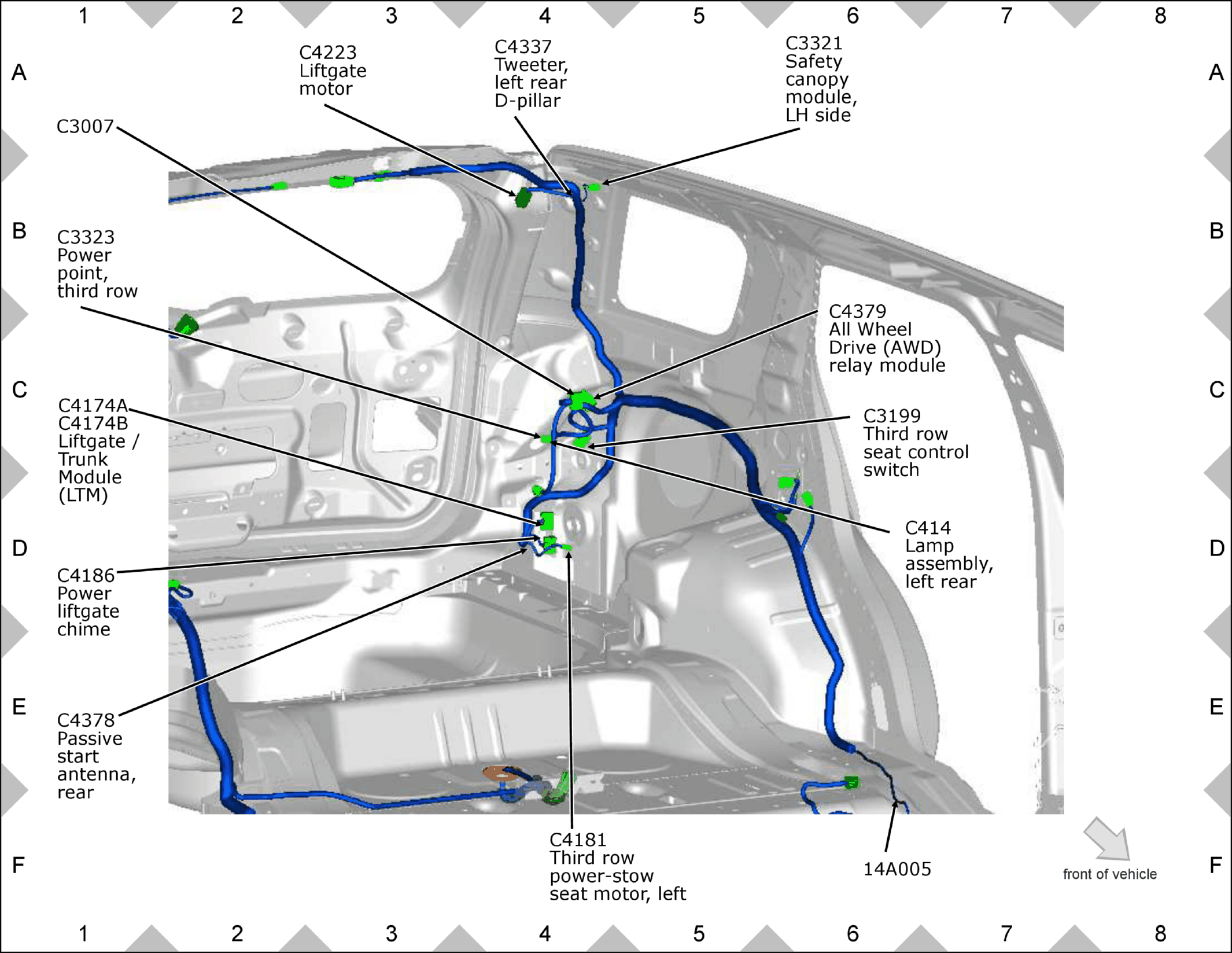

GFDW11837Courtesy of FORD MOTOR COMPANY
GFDW11838Courtesy of FORD MOTOR COMPANY

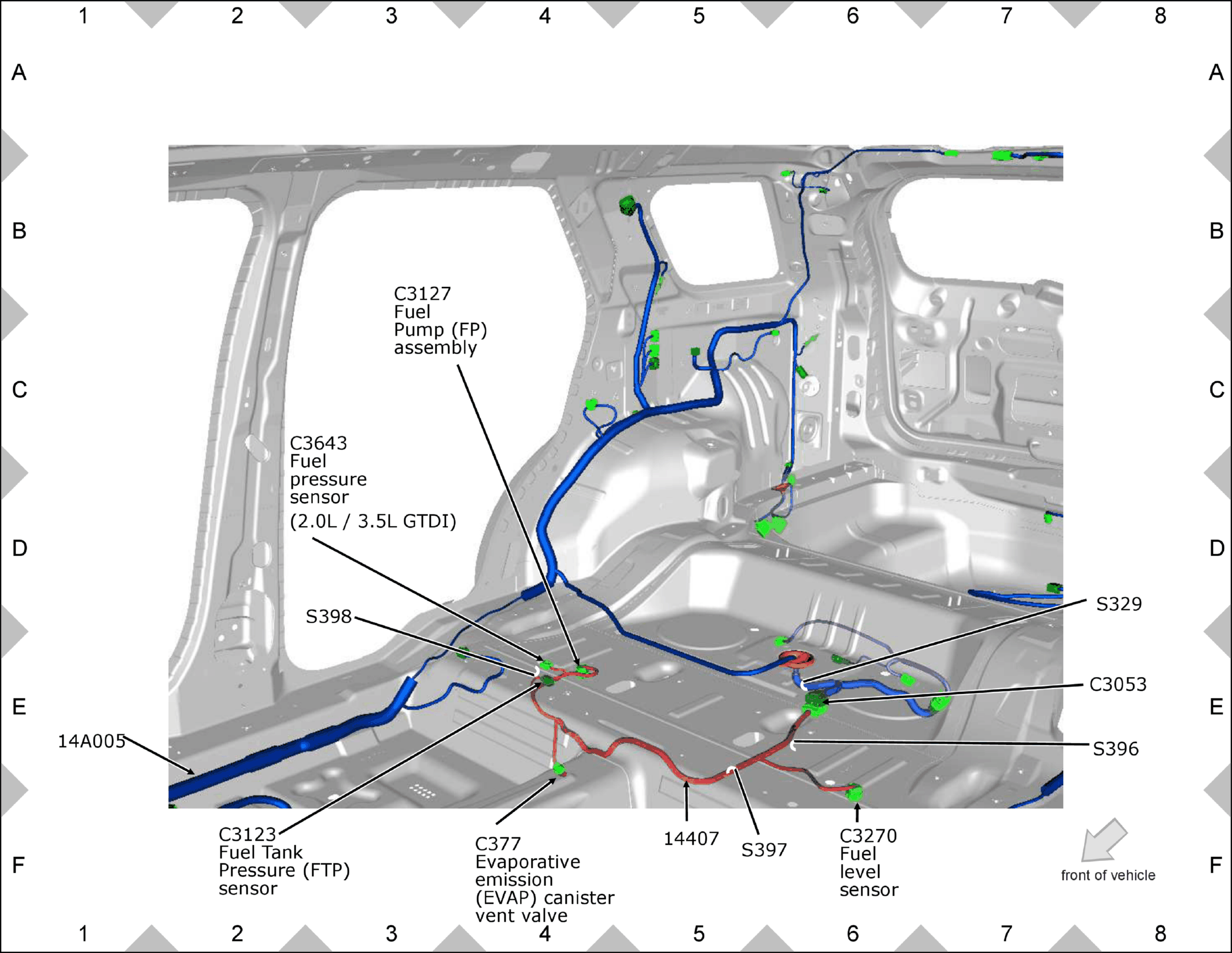

GFDW11839Courtesy of FORD MOTOR COMPANY
GFDW11840Courtesy of FORD MOTOR COMPANY

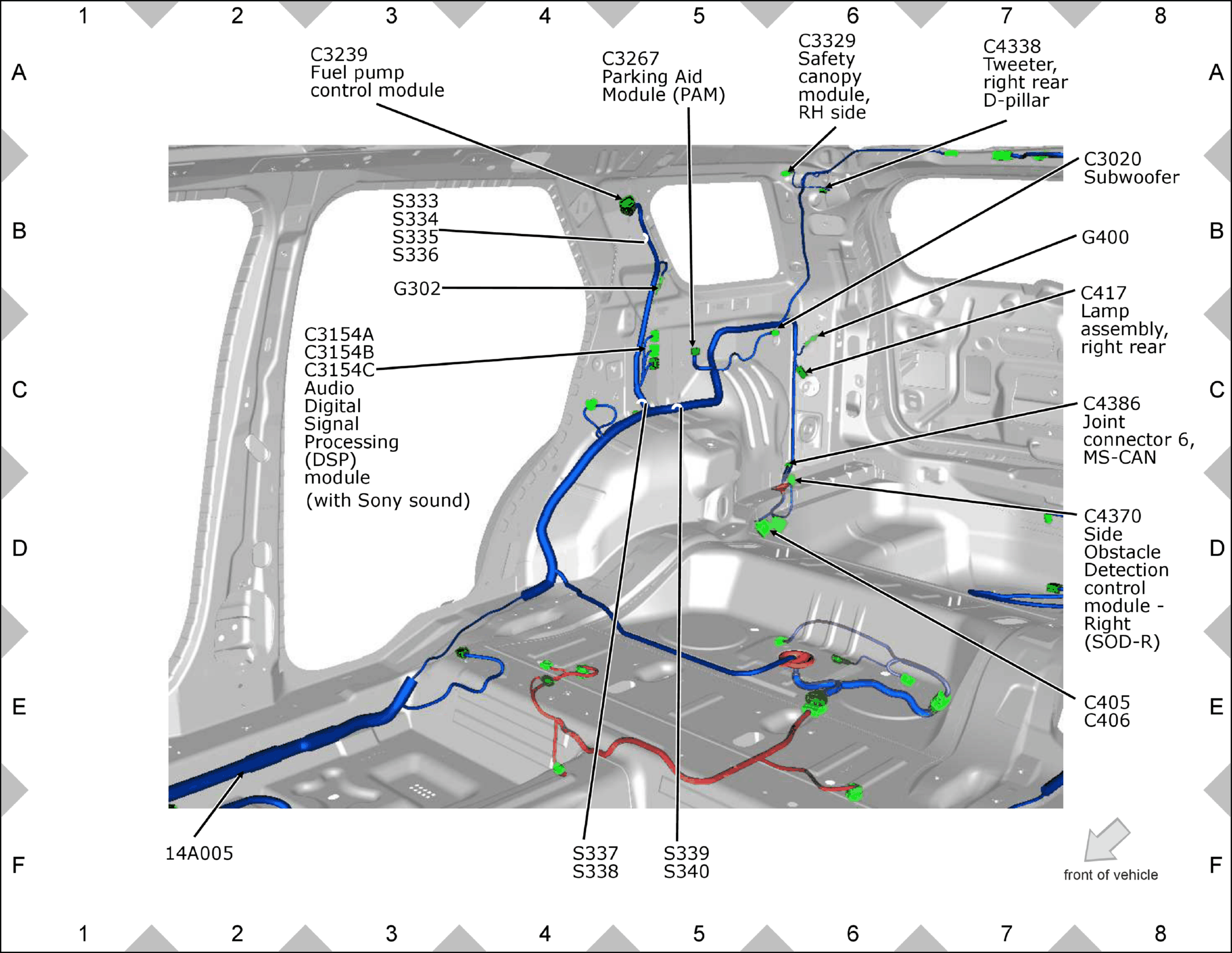

GFDW11841Courtesy of FORD MOTOR COMPANY

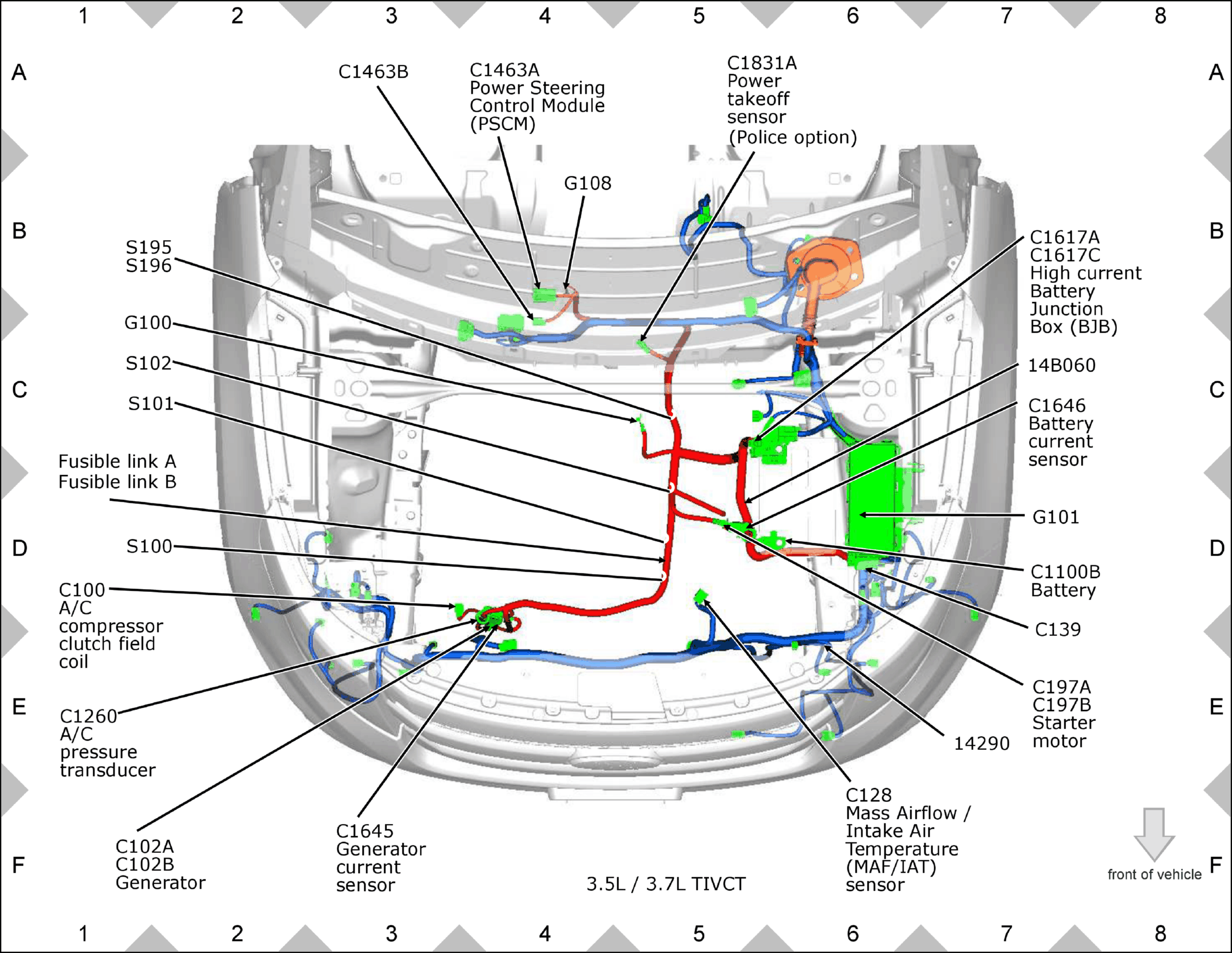

GFDW11842Courtesy of FORD MOTOR COMPANY
GFDW11843Courtesy of FORD MOTOR COMPANY

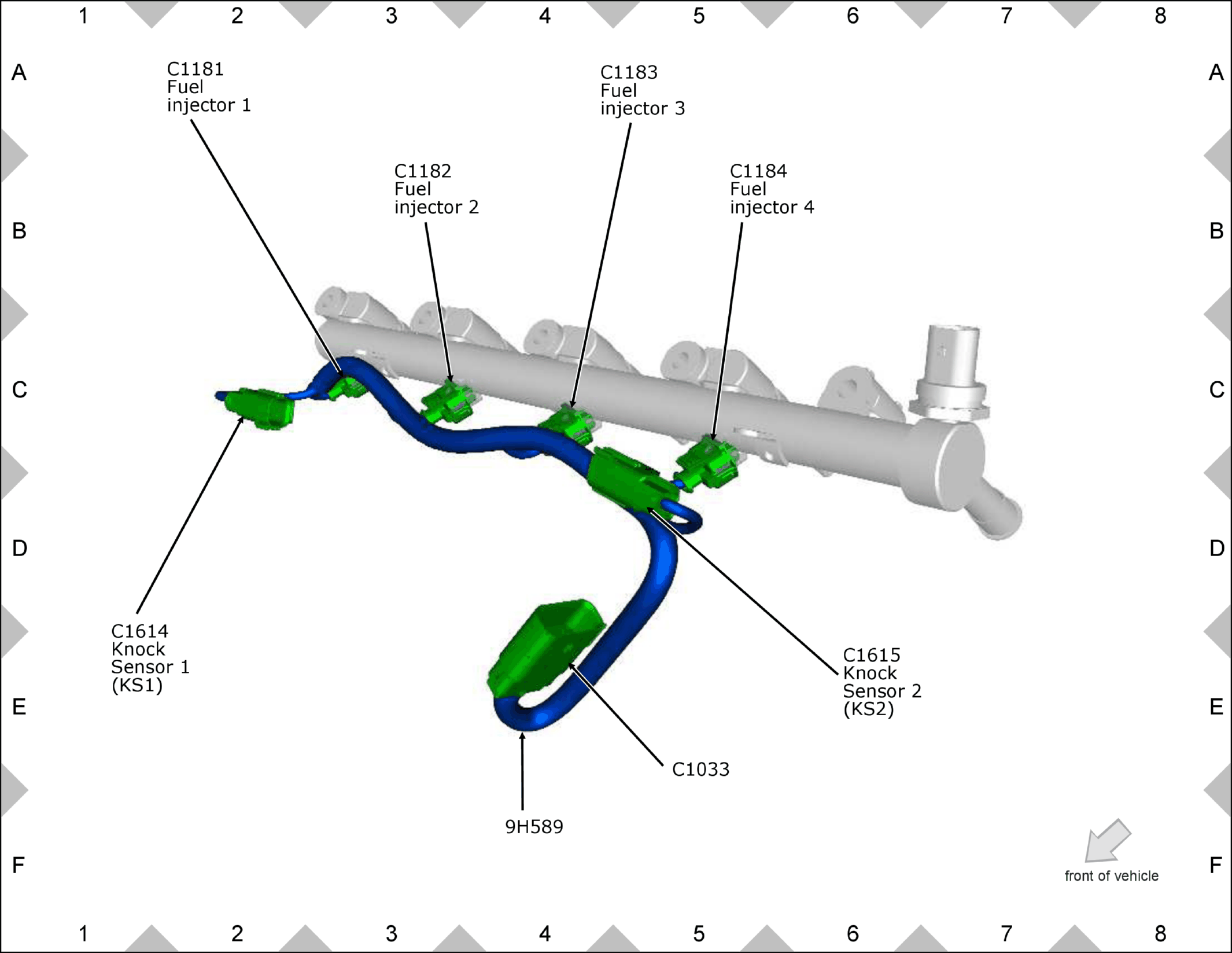

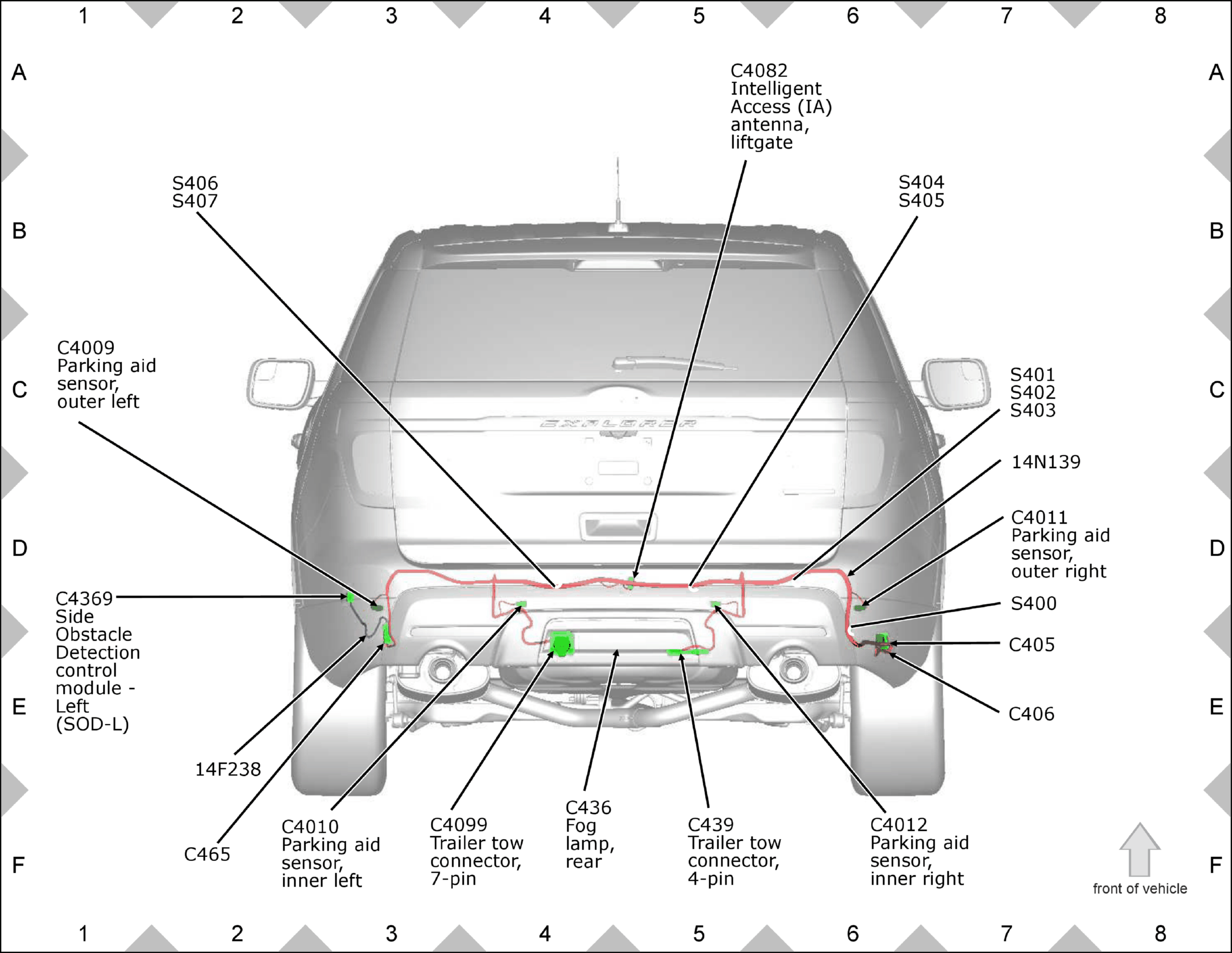

GFDW11844Courtesy of FORD MOTOR COMPANY

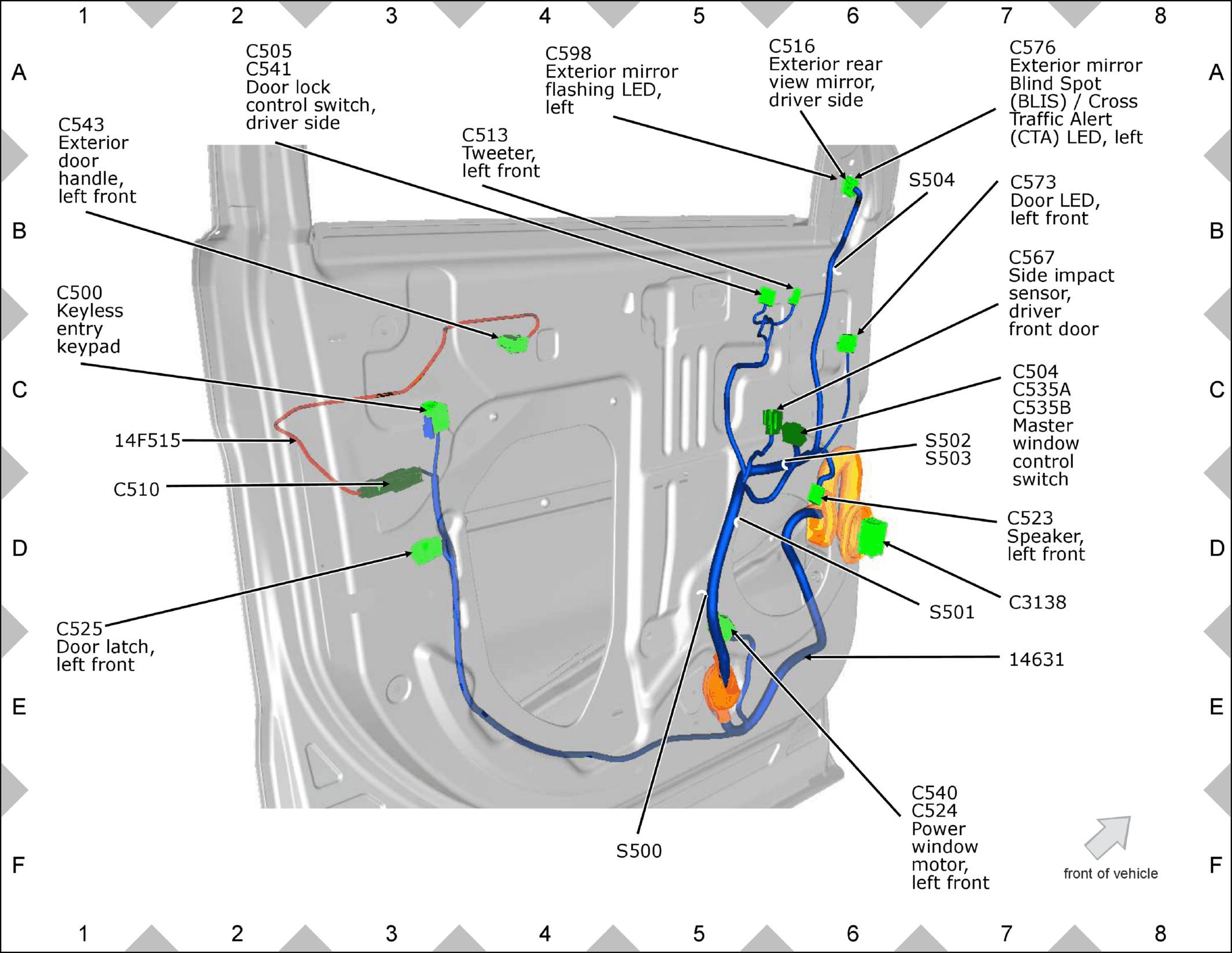

GFDW11845Courtesy of FORD MOTOR COMPANY
GFDW11846Courtesy of FORD MOTOR COMPANY
GFDW11847Courtesy of FORD MOTOR COMPANY
GFDW11848Courtesy of FORD MOTOR COMPANY
GFDW11849Courtesy of FORD MOTOR COMPANY

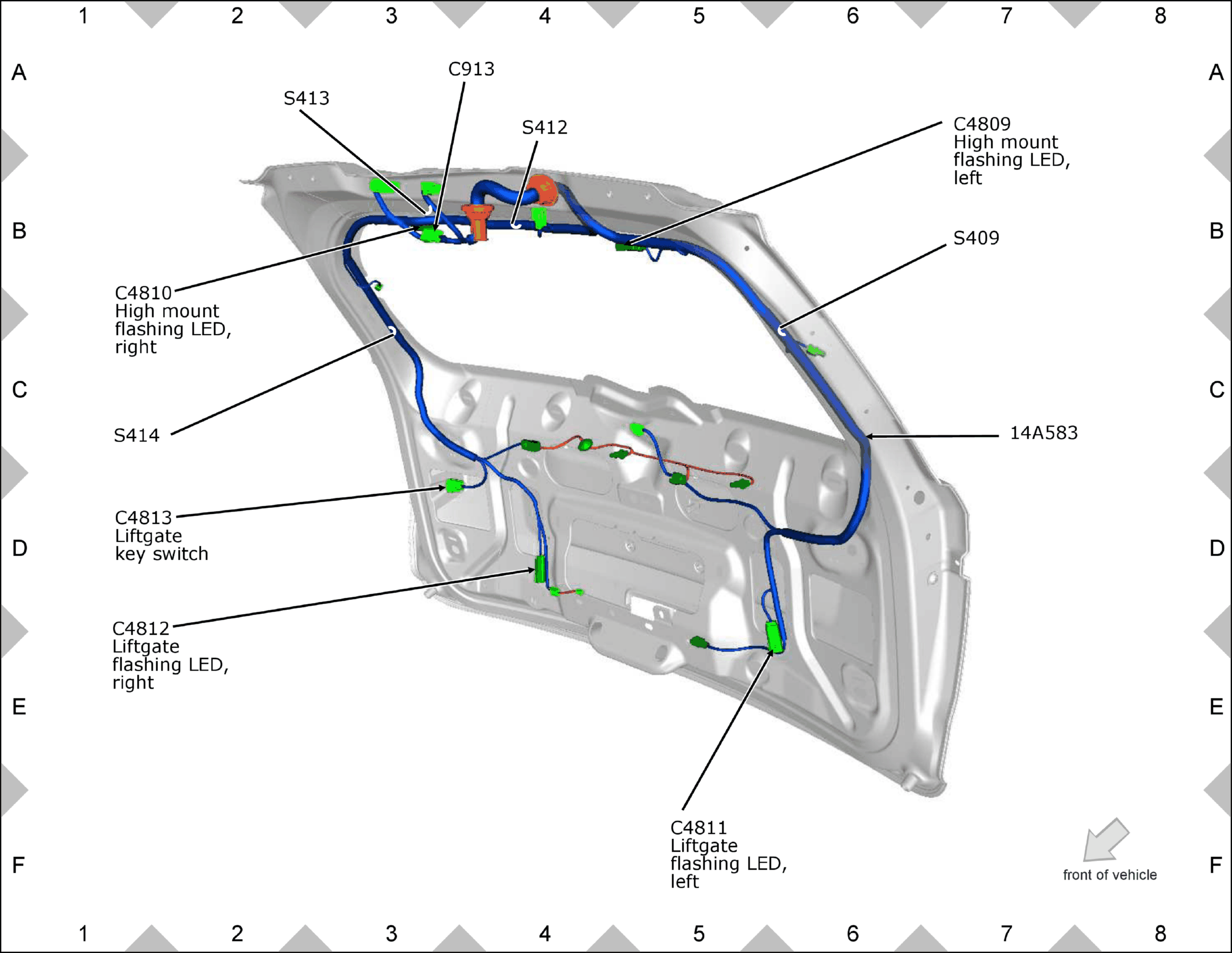

GFDW11850Courtesy of FORD MOTOR COMPANY

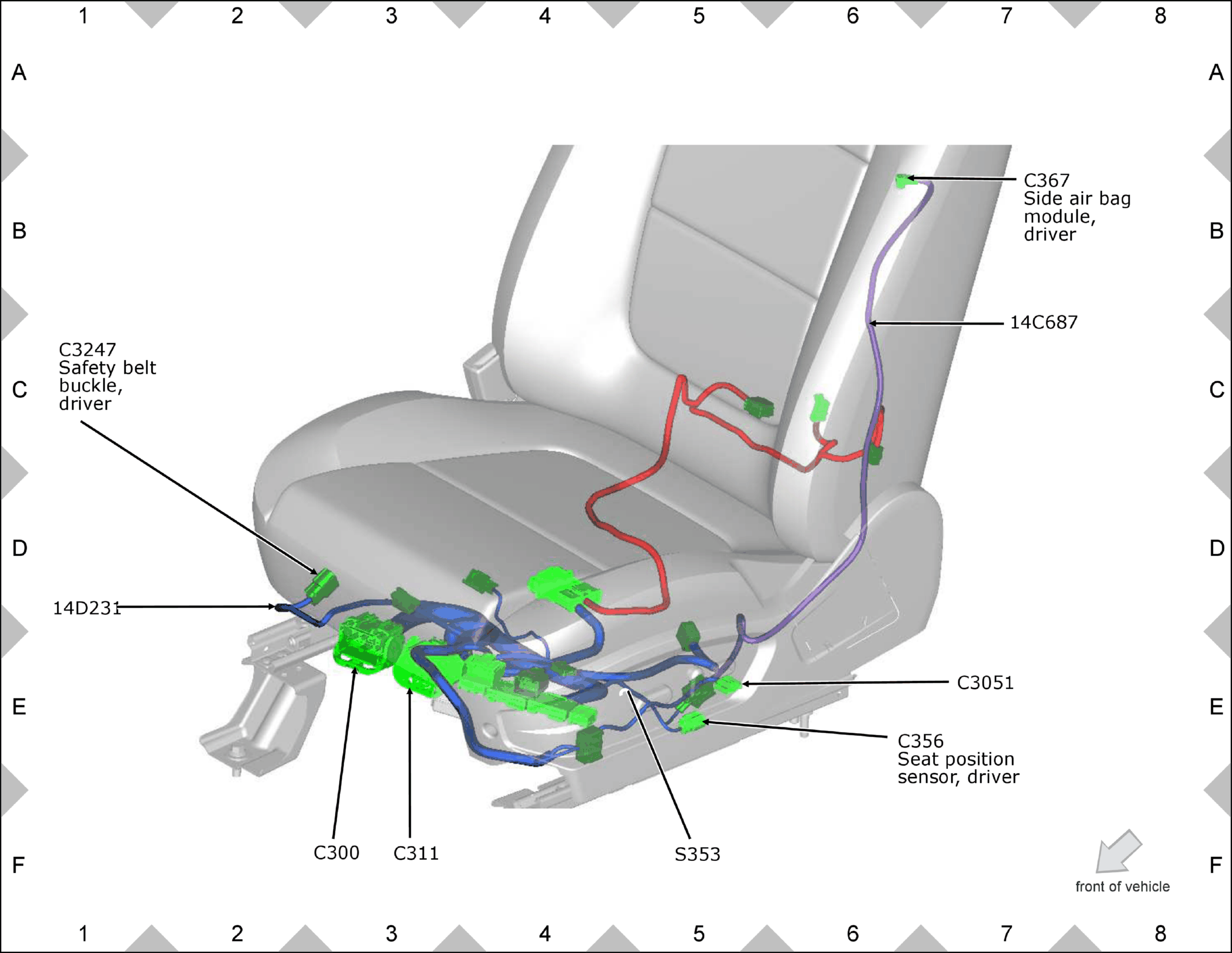

GFDW11851Courtesy of FORD MOTOR COMPANY
GFDW11852Courtesy of FORD MOTOR COMPANY

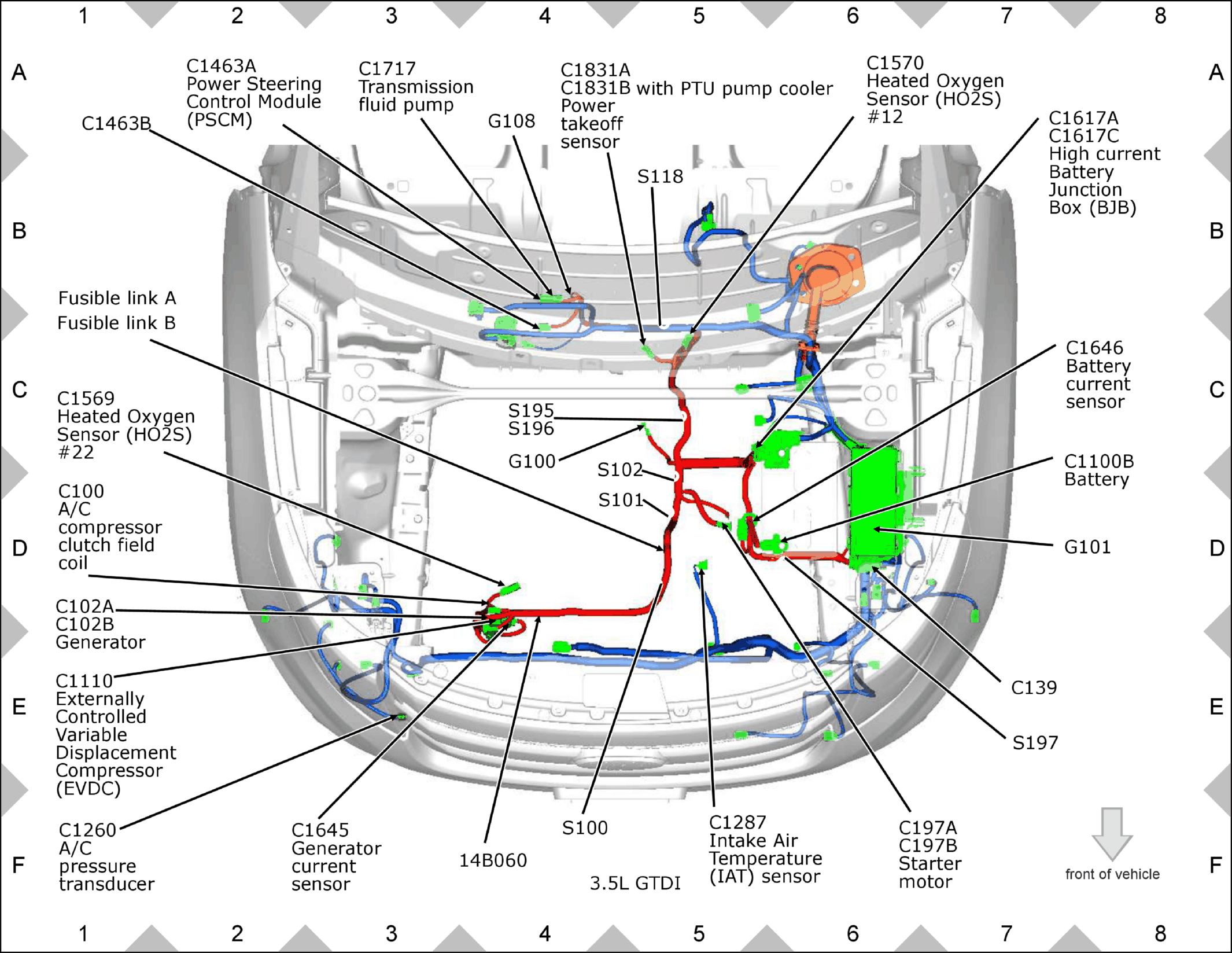

GFDW11853Courtesy of FORD MOTOR COMPANY

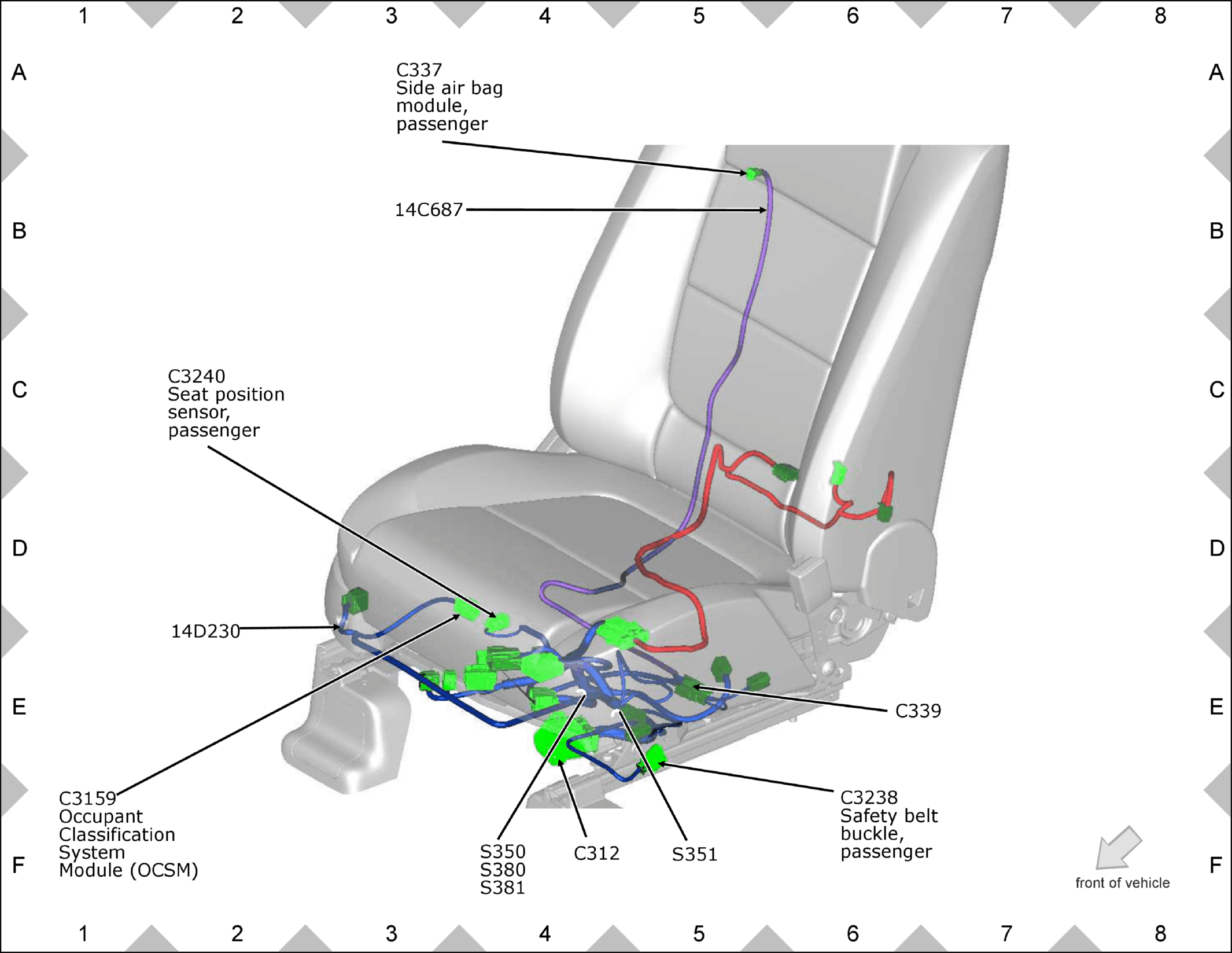

GFDW11854Courtesy of FORD MOTOR COMPANY

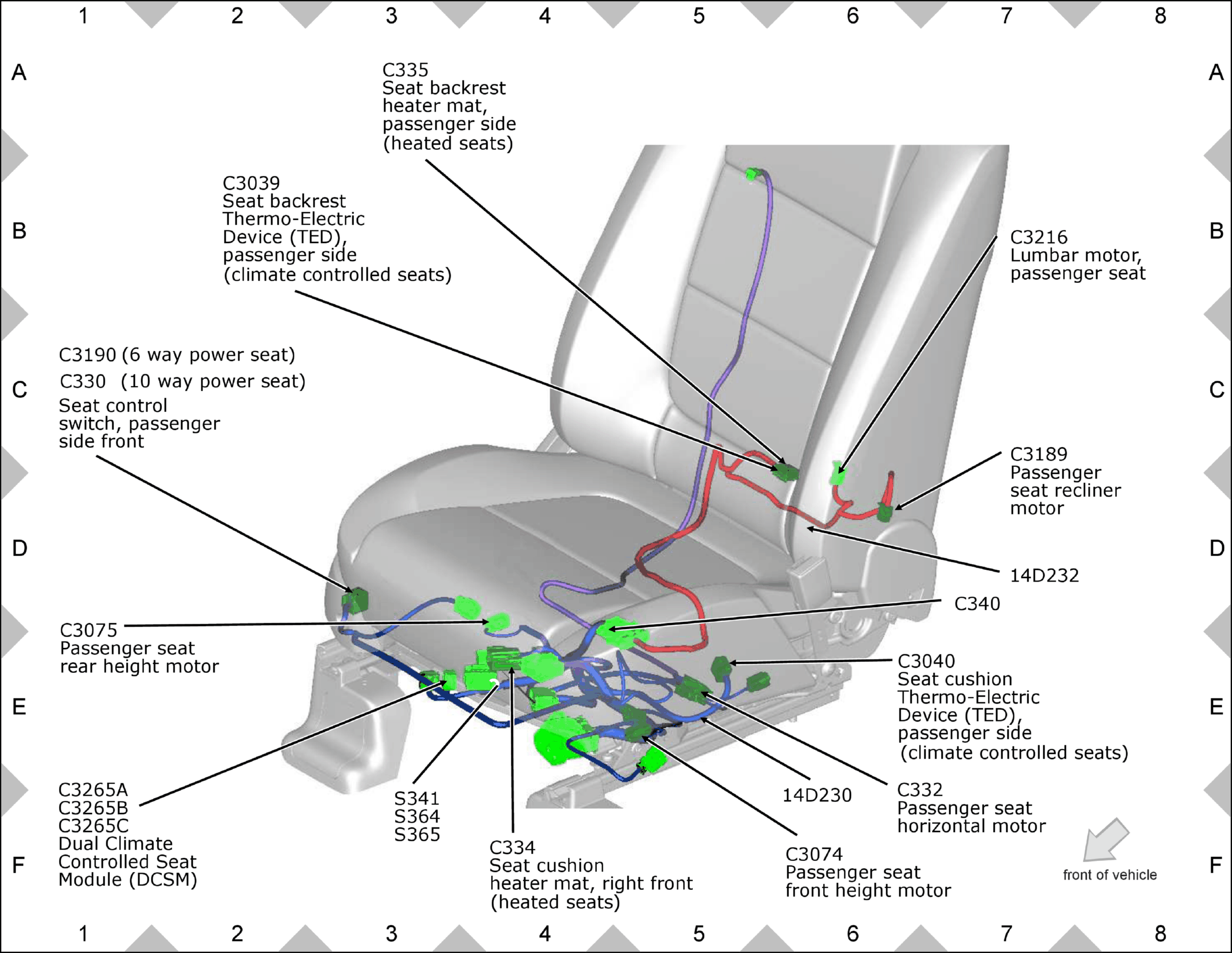

GFDW11855Courtesy of FORD MOTOR COMPANY

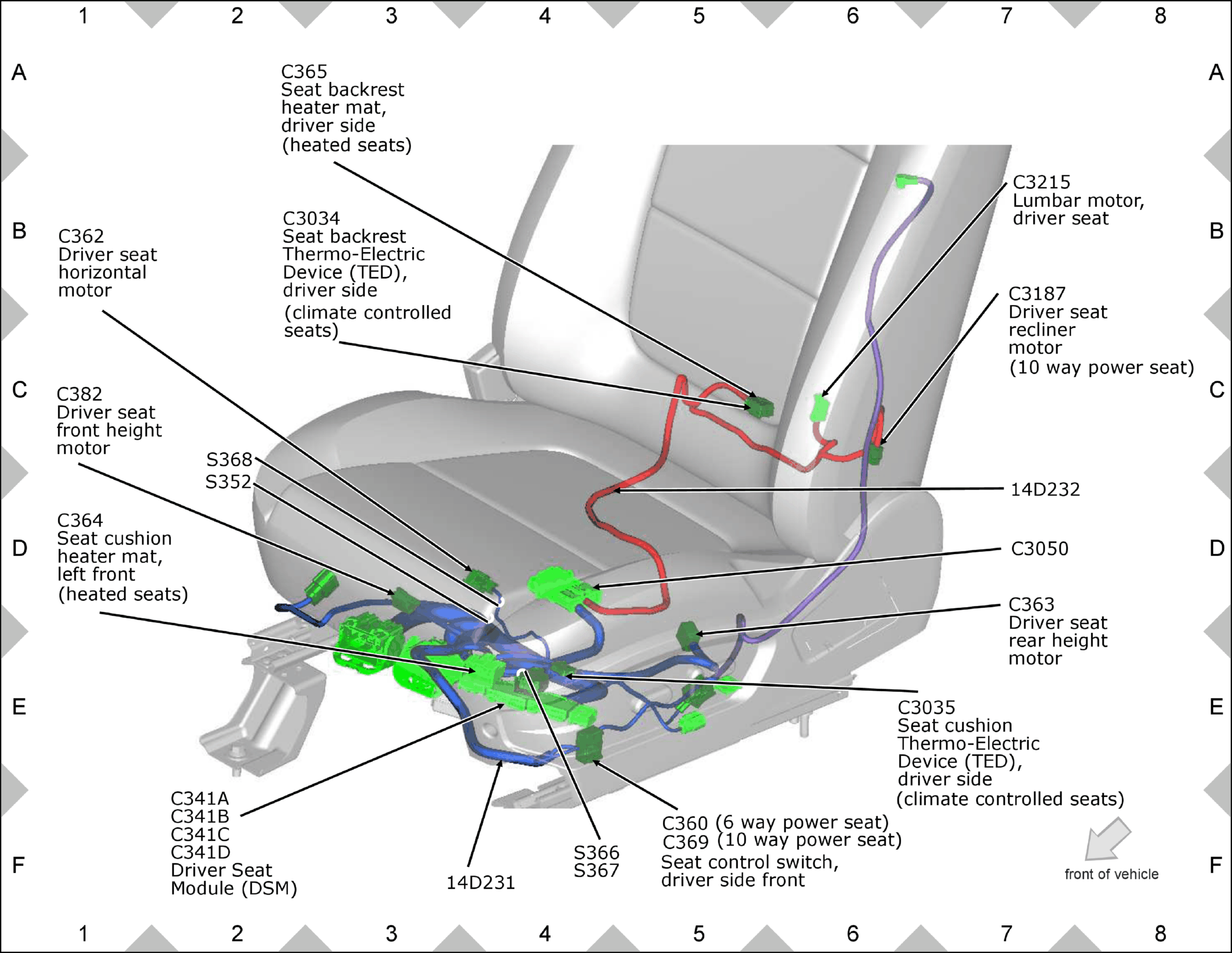

GFDW11856Courtesy of FORD MOTOR COMPANY

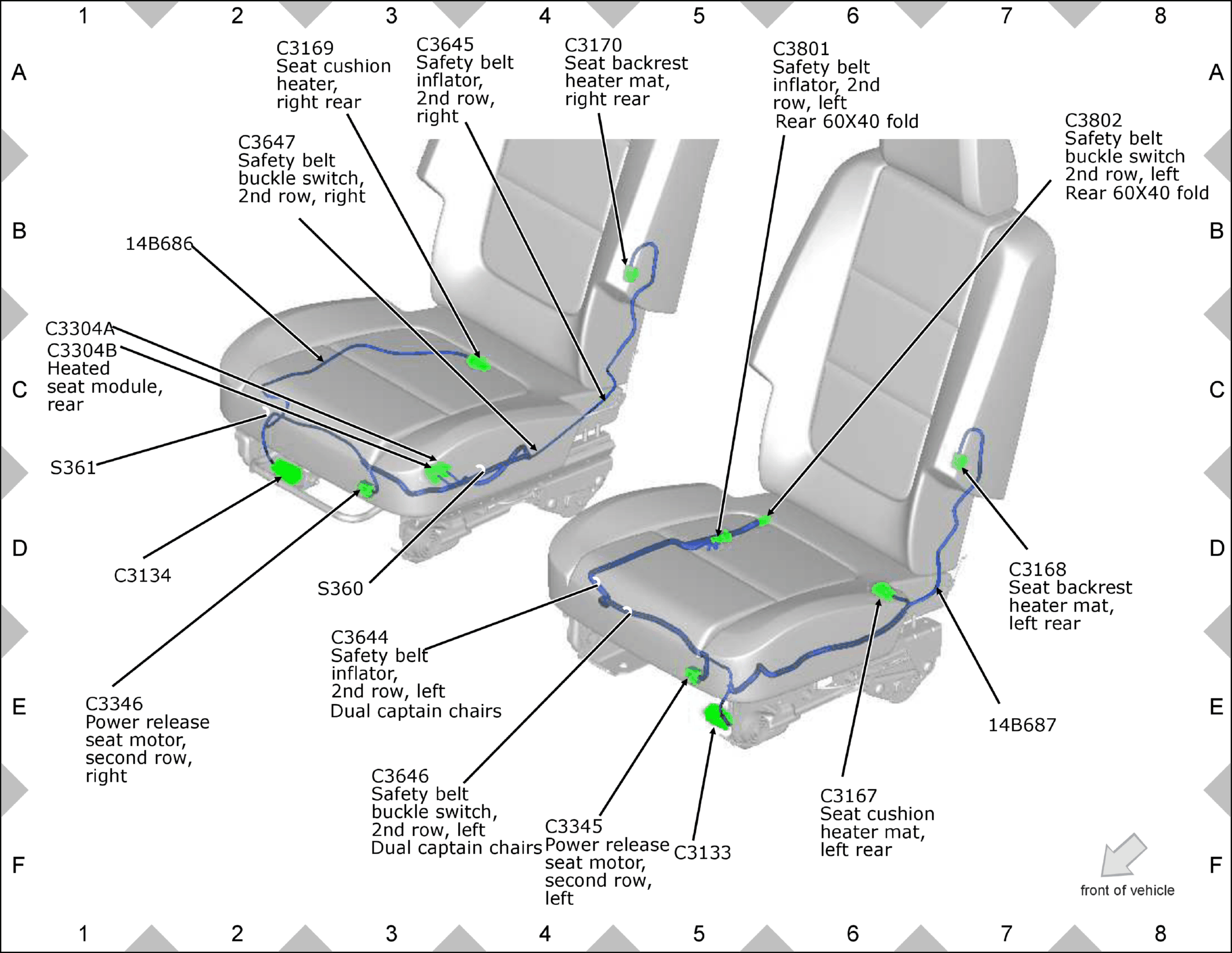

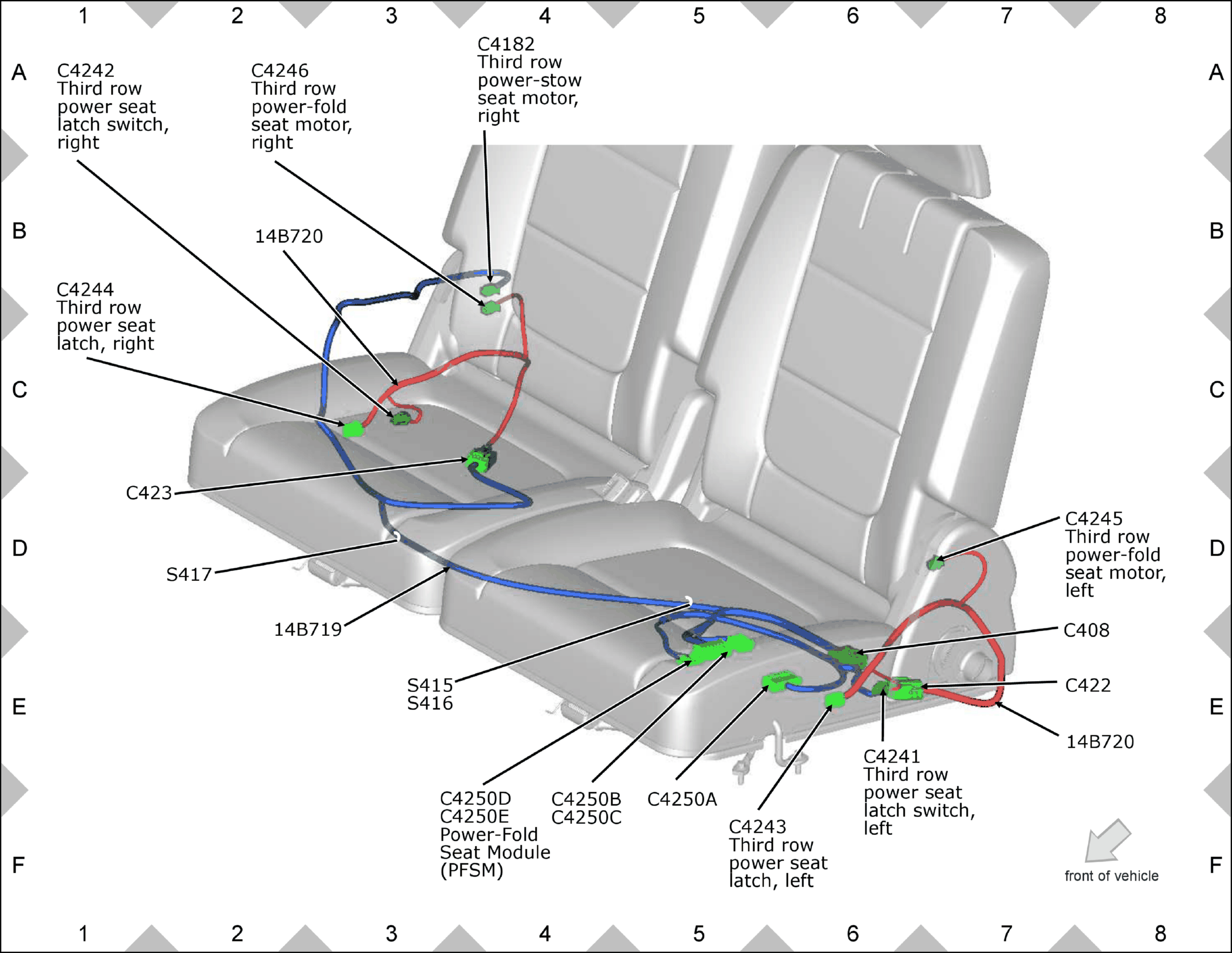

GFDW11857Courtesy of FORD MOTOR COMPANY

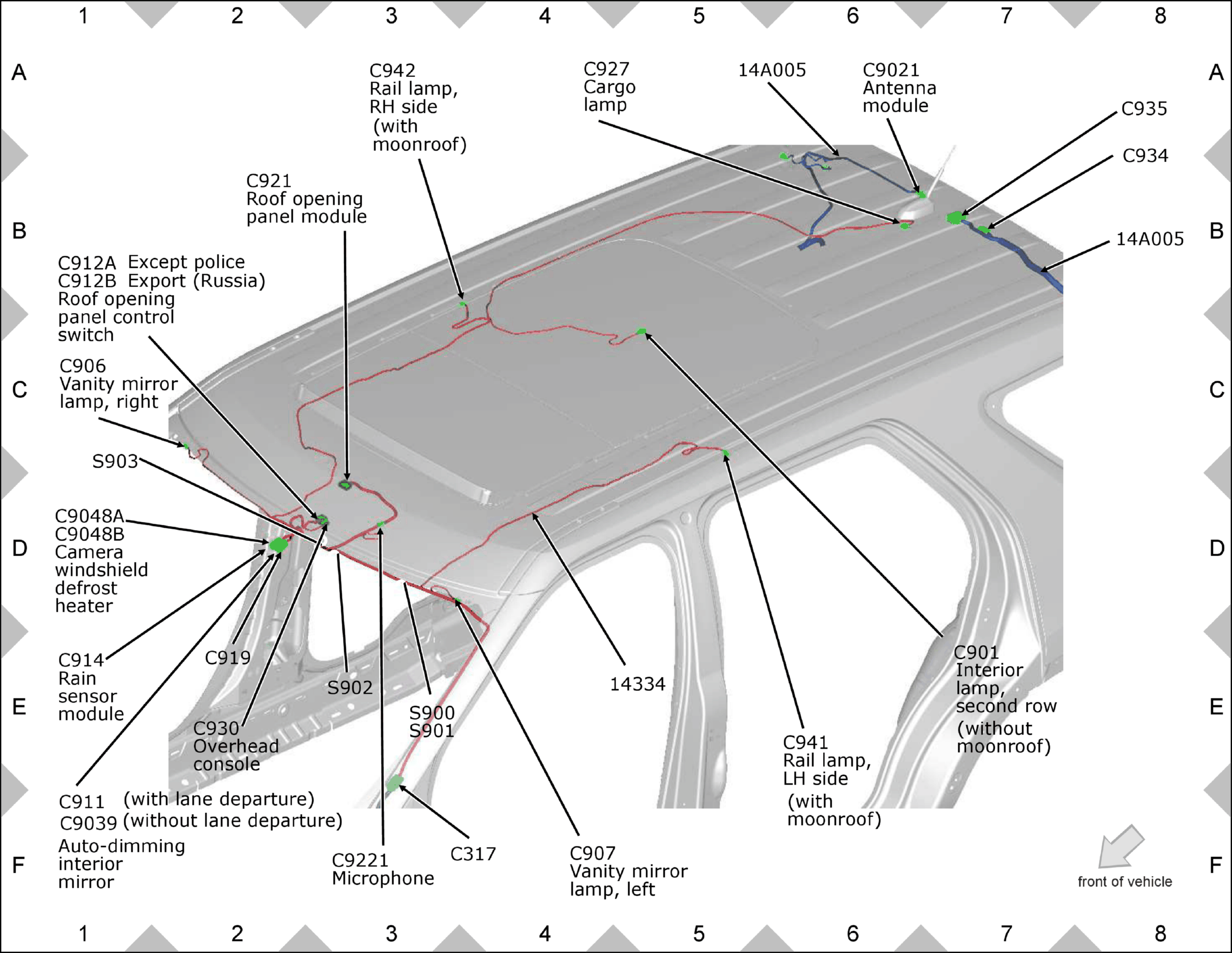

GFDW11858Courtesy of FORD MOTOR COMPANY
GFDW11859Courtesy of FORD MOTOR COMPANY
GFDW11860Courtesy of FORD MOTOR COMPANY

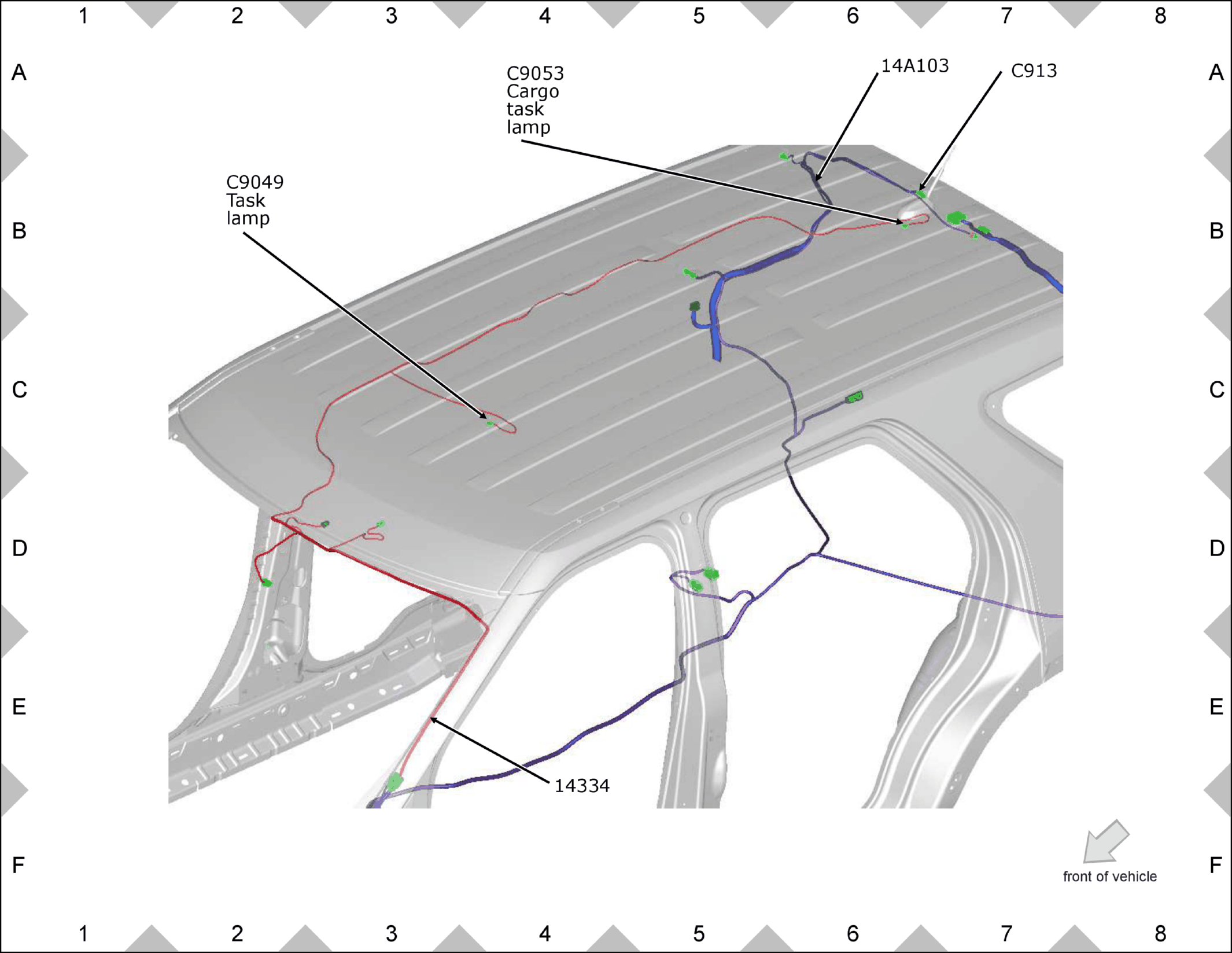

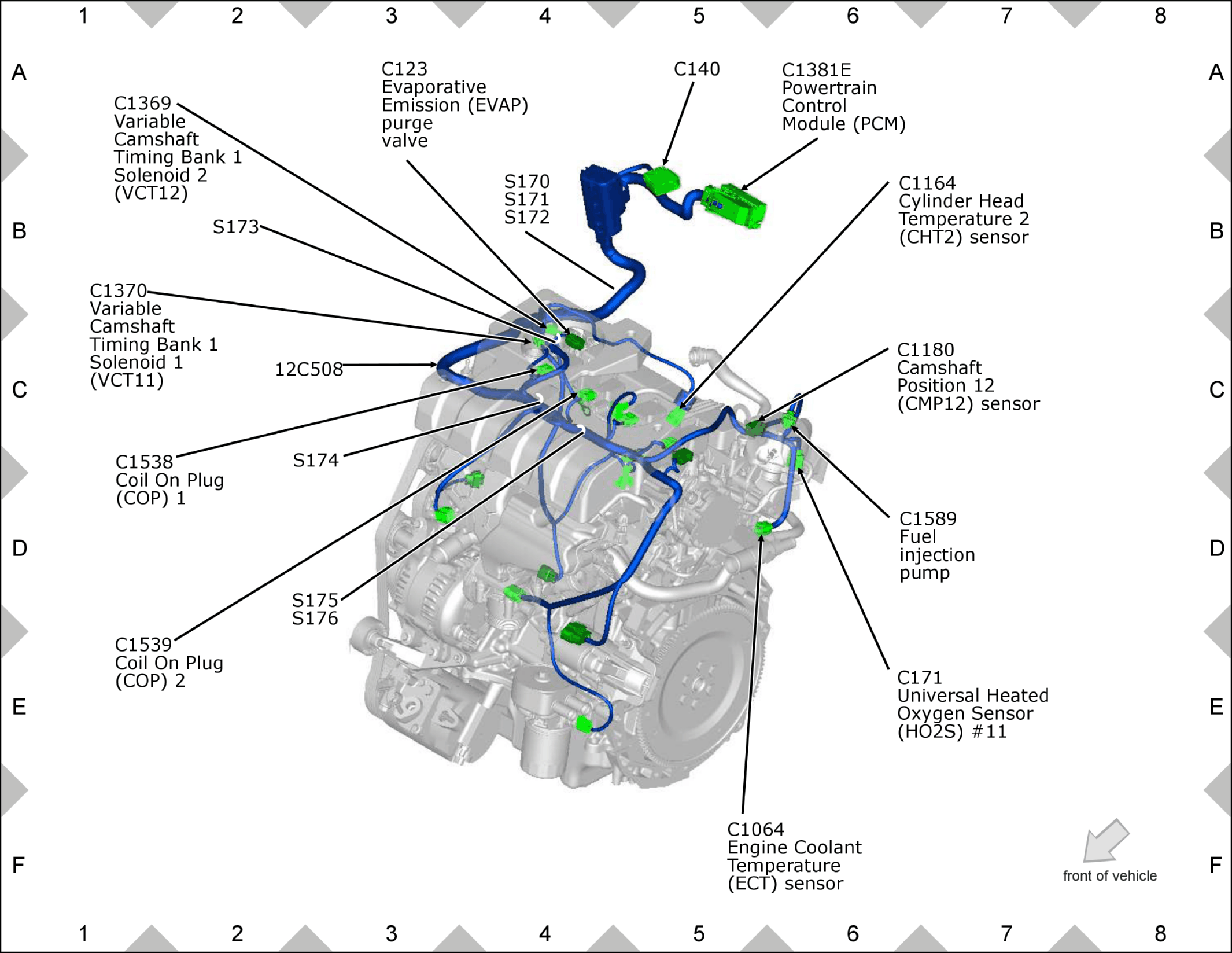

GFDW11861Courtesy of FORD MOTOR COMPANY
GFDW11862Courtesy of FORD MOTOR COMPANY

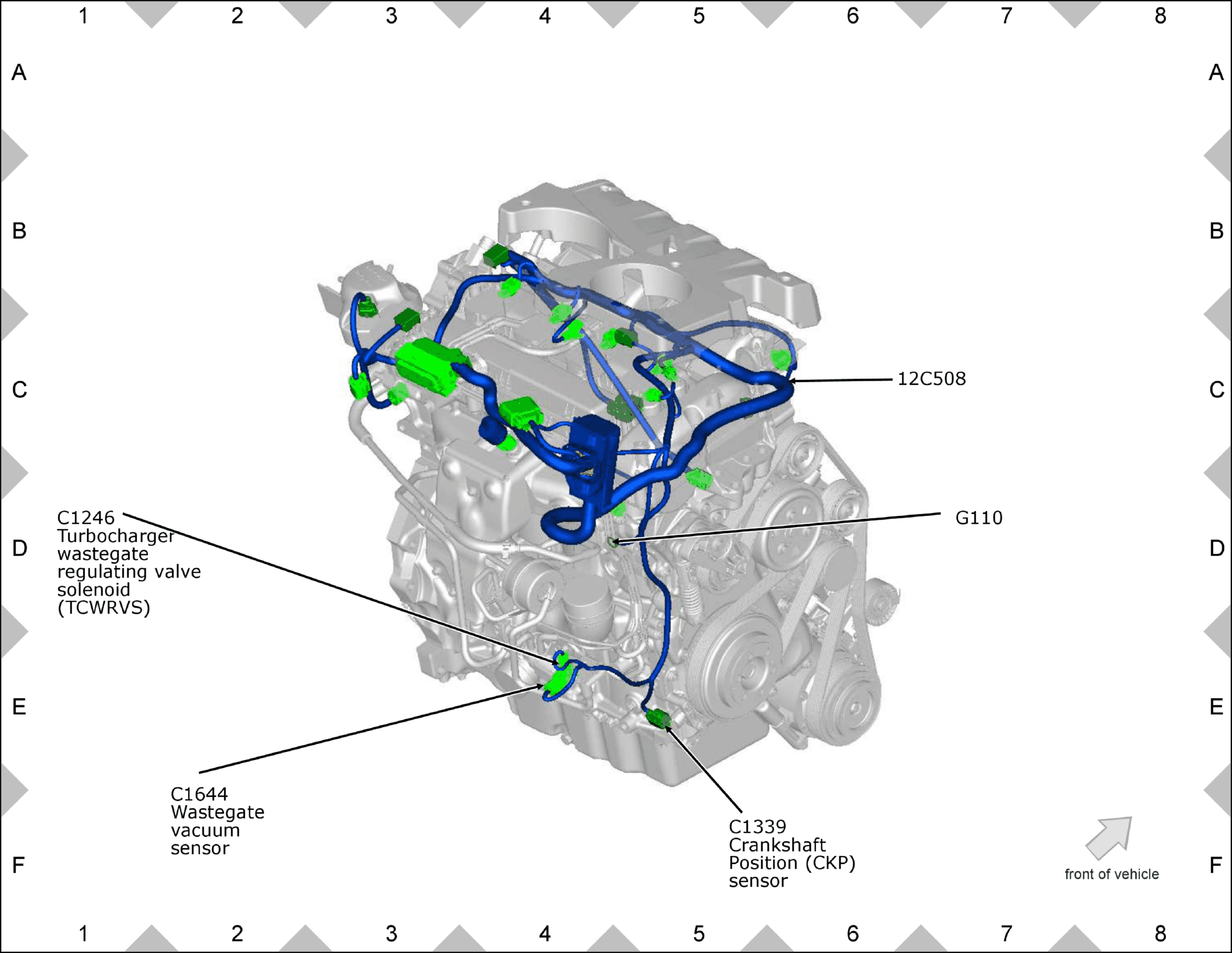

GFDW11863Courtesy of FORD MOTOR COMPANY
