Connector End View (C109) - KNOCK SENSOR (KS)
Connector: C109
Description
KNOCK SENSOR (KS)
Color
BK
Harness
12C508
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
VE801 (VT-OG) |
18 |
SENSOR - KNOCK 1ST BANK 1ST OR UNIQUE (KS1+) |
|
|
2 |
RE323 (WH-BN) |
18 |
CTRL MOD. - POWERTRAIN # KNOCK SENSOR 1ST BANK 1ST OR UNIQUE (KS1-) |
|
|
3 |
VE802 (BN-BU) |
18 |
SENSOR - KNOCK 2ND (KS2+) |
|
|
4 |
RE324 (BN-GN) |
18 |
CTRL MOD. - POWERTRAIN # KNOCK SENSOR 2ND (KS2-) |
|

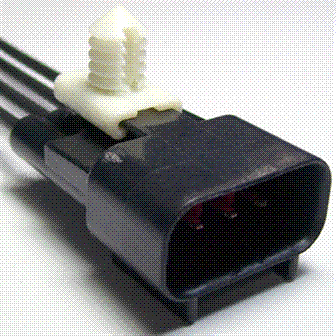

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1220 |
Service Part Number: BU2Z-14S411-AXA Gauge: 16 Pin material: Silver Cavities: 4 Vehicle Uses Sensor - Knock |
