Connector End View (C132) - AMBIENT AIR TEMPERATURE (AAT) SENSOR
Connector: C132
Description
AMBIENT AIR TEMPERATURE (AAT) SENSOR
Color
Harness
14290
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
VH407 (YE-GN) |
20 |
SENSOR - AMBIENT AIR TEMPERATURE (AAT) |
|
|
2 |
RE407 (YE-VT) |
20 |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (SIGRTN) |
|
Available Pigtail Kits |
|
|

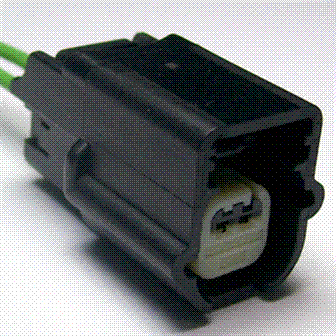

Pigtail Kit Part Number WPT-1306 |
Service Part Number: AU2Z-14S411-AGB Gauge: 20 Pin material: Silver Cavities: 2 Vehicle Uses Sensor - Ambient Temp Sensor - Side Impact |
