Connector End View (C152) - FOG LAMP, LEFT FRONT
Connector: C152
Description
FOG LAMP, LEFT FRONT
Color
BK
Harness
15A211
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
A |
GD120 (BK-GN) |
20 |
GROUND - FENDER FRONT LEFT |
|
|
B |
CLF12 (BN-YE) |
20 |
RELAY - FOG LAMPS FRONT |
|

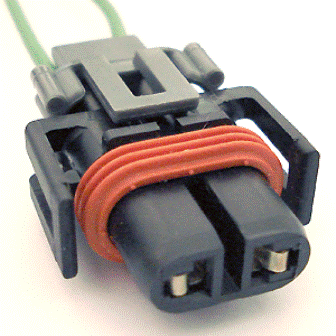

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-952 |
Service Part Number: 3U2Z-14S411-VZB Gauge: 16 Pin material: Silver Cavities: 2 Vehicle Uses Lamp - Fog/Driving Lamp - Headlamp - Low Beam |
