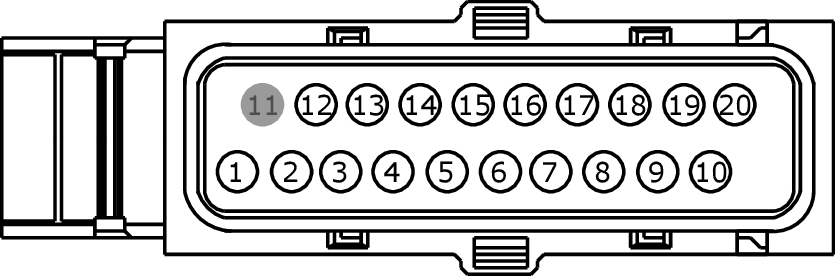

Connector End View (C168) - 6F50 / 6F55 TRANSMISSION
Connector: C168
Description
6F50 / 6F55 TRANSMISSION
Color
BK
Harness
12C508
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CET19 (VT-GY) |
20 |
CTRL MOD. - POWERTRAIN # SHIFT SOLENOID E (SSE) |
|
|
2 |
VET27 (BN-YE) |
20 |
SENSOR - TRANSMISSION FLUID TEMPERATURE (TFT) |
|
|
3 |
RE406 (GY-VT) |
20 |
TRANSMISSION FLUID TEMPERATURE SENSOR SIGNAL RETURN |
3.5L / 3.7L TIVCT |
|
3 |
RE405 (GN-WH) |
20 |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN) |
3.5L GTDI |
|
4 |
VET29 (VT-WH) |
20 |
SENSOR - TRANSMISSION RANGE # 1 (TR1) [DTRS] |
|
|
5 |
VET30 (YE) |
20 |
SENSOR - TRANSMISSION RANGE # 2 (TR2) [DTRS] |
|
|
6 |
VET31 (BU-OG) |
20 |
SENSOR - TRANSMISSION RANGE # 3 (TR3) [DTRS] |
|
|
7 |
VET32 (VT) |
20 |
SENSOR - TRANSMISSION RANGE # 4 (TR4) [DTRS] |
|
|
8 |
RET24 (BN-BU) |
20 |
TRANSMISSION RANGE SIGNAL RETURN (TR GND) |
|
|
9 |
RET24 (BN-BU) |
20 |
TSS / OSS SIGNAL RETURN (TSS / OSS GND) |
|
|
10 |
RET04 (YE-OG) |
20 |
CTRL MOD. - POWERTRAIN # SENSOR OUTPUT SHAFT SPEED (OSS) |
|
|
11 |
* |
* |
Not Used |
|
|
12 |
CET08 (BN-WH) |
20 |
CTRL MOD. - POWERTRAIN # SHIFT SOLENOID D (SSD) |
|
|
13 |
CET05 (BU-GN) |
20 |
CTRL MOD. - POWERTRAIN # SHIFT SOLENOID A (SSA) |
|
|
14 |
CET10 (BU-GY) |
20 |
TORQUE CONVERTER CLUTCH (TCC) SOLENOID |
|
|
15 |
CET25 (BU-GN) |
18 |
TRANSAXLE SOLENOID POWER CONTROL (TSPC) |
|
|
16 |
CET06 (GN-BN) |
20 |
CTRL MOD. - POWERTRAIN # SHIFT SOLENOID B (SSB) |
|
|
17 |
CET07 (GY-OG) |
20 |
CTRL MOD. - POWERTRAIN # SHIFT SOLENOID C (SSC) |
|
|
18 |
CET09 (YE-VT) |
20 |
LINE PRESSURE CONTROL (LPC) |
|
|
19 |
RET33 (WH-VT) |
20 |
SENSOR - TURBINE/TRANSMISSION SHAFT SPEED (TSS) |
|
|
20 |
LE111 (VT-GN) |
20 |
TSS / OSS POWER SUPPLY |
|

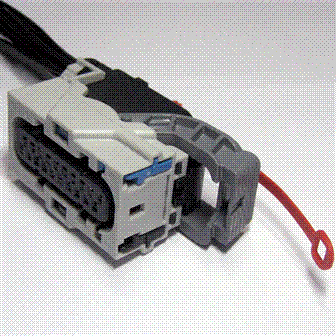

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1203 |
Service Part Number: 8U2Z-14S411-ACB Gauge: 18 Pin material: Tin (greased) Cavities: 20 Vehicle Uses Sensor - Transmission Range Transmission - Bulkhead |
