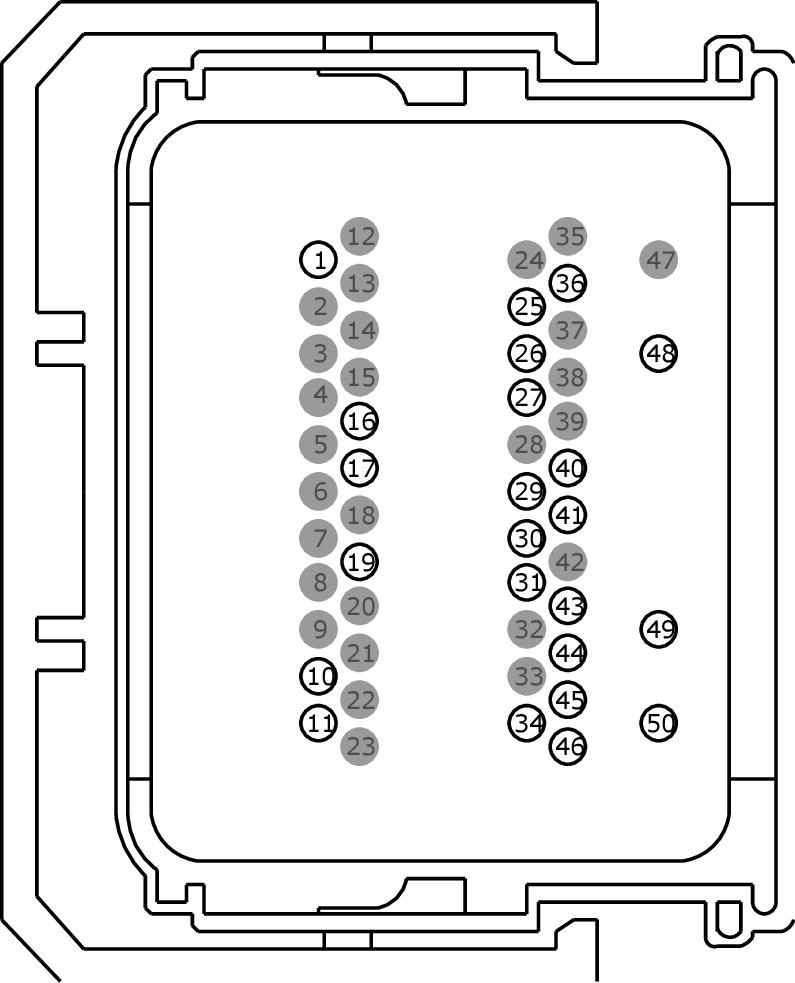

Connector End View (C175T) - POWERTRAIN CONTROL MODULE (PCM)
Connector: C175T
Description
POWERTRAIN CONTROL MODULE (PCM)
Color
BK
Harness
12C508
Base Part #
part# N/A
Service Pigtail
Not Available
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
LE111 (VT-GN) |
20 |
CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE (VREF) |
|
|
2 |
* |
* |
Not Used |
|
|
3 |
* |
* |
Not Used |
|
|
4 |
* |
* |
Not Used |
|
|
5 |
* |
* |
Not Used |
|
|
6 |
* |
* |
Not Used |
|
|
7 |
* |
* |
Not Used |
|
|
8 |
* |
* |
Not Used |
|
|
9 |
* |
* |
Not Used |
|
|
10 |
CET08 (BN-WH) |
20 |
CTRL MOD. - POWERTRAIN # SHIFT SOLENOID D (SSD) |
|
|
11 |
CET19 (VT-GY) |
20 |
CTRL MOD. - POWERTRAIN # SHIFT SOLENOID E (SSE) |
|
|
12 |
* |
* |
Not Used |
|
|
13 |
* |
* |
Not Used |
|
|
14 |
* |
* |
Not Used |
|
|
15 |
* |
* |
Not Used |
|
|
16 |
RET33 (WH-VT) |
20 |
SENSOR - TURBINE/TRANSMISSION SHAFT SPEED (TSS) |
|
|
17 |
VET32 (VT) |
20 |
SENSOR - TRANSMISSION RANGE # 4 (TR4) [DTRS] |
|
|
18 |
* |
* |
Not Used |
|
|
19 |
VET27 (BN-YE) |
20 |
SENSOR - TRANSMISSION FLUID TEMPERATURE (TFT) |
|
|
20 |
* |
* |
Not Used |
|
|
21 |
* |
* |
Not Used |
|
|
22 |
* |
* |
Not Used |
|
|
23 |
* |
* |
Not Used |
|
|
24 |
* |
* |
Not Used |
|
|
25 |
RET04 (YE-OG) |
20 |
CTRL MOD. - POWERTRAIN # SENSOR OUTPUT SHAFT SPEED (OSS) |
|
|
26 |
VET29 (VT-WH) |
20 |
SENSOR - TRANSMISSION RANGE # 1 (TR1) [DTRS] |
|
|
27 |
VET30 (YE) |
20 |
SENSOR - TRANSMISSION RANGE # 2 (TR2) [DTRS] |
|
|
28 |
* |
* |
Not Used |
|
|
29 |
VE731 (YE-GN) |
18 |
SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (HO2S12) |
|
|
30 |
VET31 (BU-OG) |
20 |
SENSOR - TRANSMISSION RANGE # 3 (TR3) [DTRS] |
|
|
31 |
CET34 (BN-GN) |
18 |
SWITCH - TOW MODE CONTROL (TOWS) |
|
|
32 |
* |
* |
Not Used |
|
|
33 |
* |
* |
Not Used |
|
|
34 |
CET09 (YE-VT) |
20 |
LINE PRESSURE CONTROL (LPC) |
|
|
35 |
* |
* |
Not Used |
|
|
36 |
RET24 (BN-BU) |
20 |
TSS / OSS / TR SIGNAL RETURN (TSS / OSS / TR GND) |
|
|
37 |
* |
* |
Not Used |
|
|
38 |
* |
* |
Not Used |
|
|
39 |
* |
* |
Not Used |
|
|
40 |
VE733 (WH) |
18 |
SENSOR - HEATED OXYGEN POST CAT. 2ND (HO2S22) |
|
|
41 |
RE406 (GY-VT) |
20 |
TRANSMISSION FLUID TEMPERATURE SENSOR SIGNAL RETURN |
|
|
42 |
* |
* |
Not Used |
|
|
43 |
CET06 (GN-BN) |
20 |
CTRL MOD. - POWERTRAIN # SHIFT SOLENOID B (SSB) |
|
|
44 |
CET07 (GY-OG) |
20 |
CTRL MOD. - POWERTRAIN # SHIFT SOLENOID C (SSC) |
|
|
45 |
CET05 (BU-GN) |
20 |
CTRL MOD. - POWERTRAIN # SHIFT SOLENOID A (SSA) |
|
|
46 |
CET10 (BU-GY) |
20 |
TORQUE CONVERTER CLUTCH (TCC) SOLENOID |
|
|
47 |
* |
* |
Not Used |
|
|
48 |
CE234 (BU-WH) |
18 |
CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 2ND (HTR22) |
|
|
49 |
CE233 (WH-OG) |
18 |
CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 1ST OR UNIQUE (HTR12) |
|
|
50 |
CET25 (BU-GN) |
18 |
TRANSAXLE SOLENOID POWER CONTROL (TSPC) |
