Connector End View (C210) - Inline
Inline C210
Description
Inline
Color
BK
Base Part #
Service Pigtail
Not Available

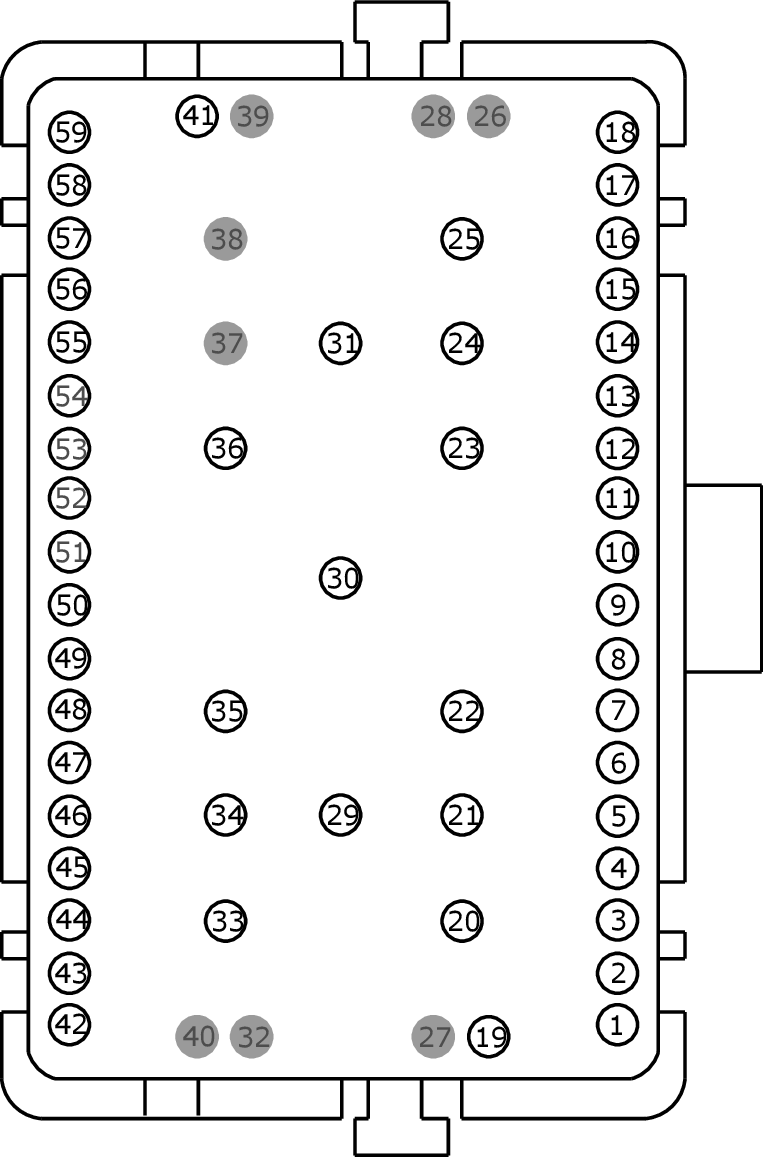

MALE
Harness 14A005

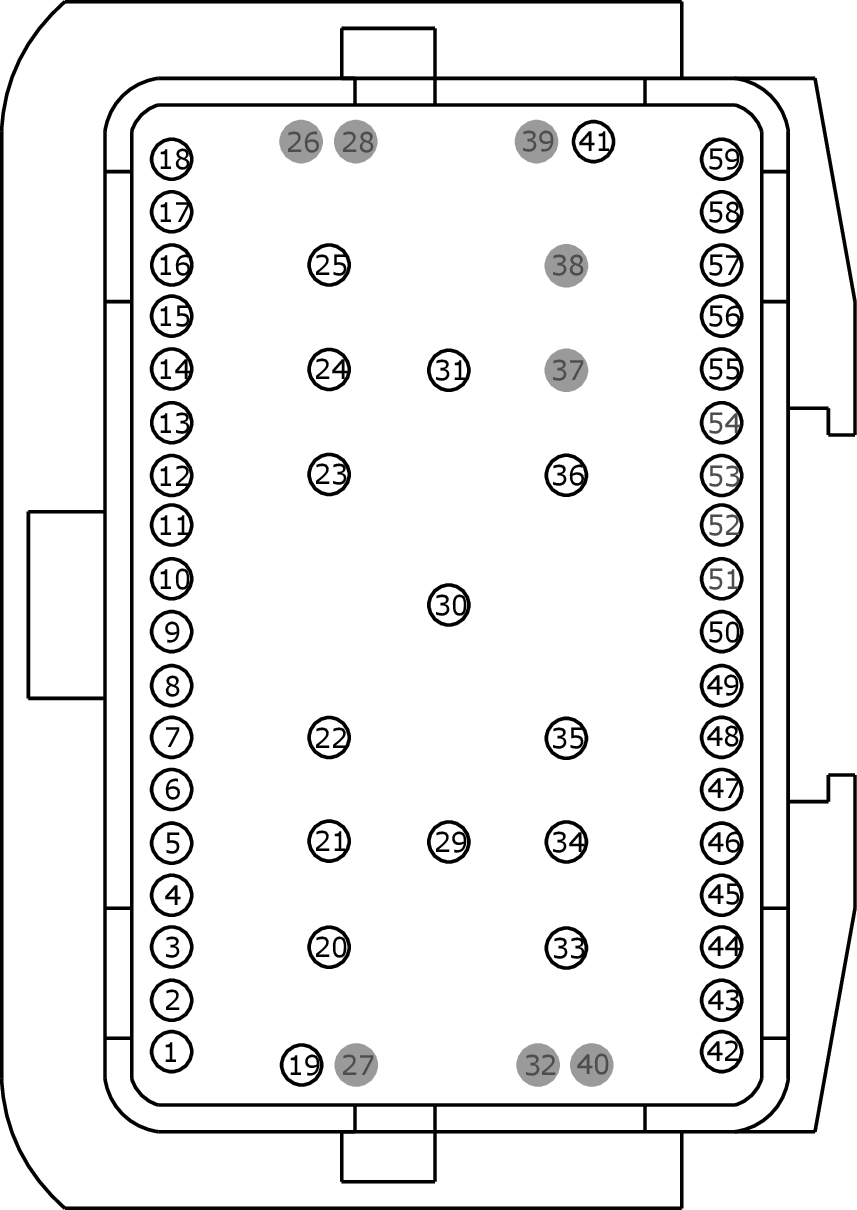

FEMALE
Harness 14401
|
Pin |
Circuit |
Gauge |
Qualifier |
|
1 |
DME80 (*) |
20 |
14A005 |
|
2 |
VME80 (VT-GN) |
22 |
|
|
3 |
RME80 (BU-GY) |
22 |
|
|
4 |
VPK02 (VT) |
26 |
14A005 |
|
5 |
RPK02 (GY) |
26 |
14A005 |
|
6 |
VDB07 (VT-OG) |
18 |
14A005 - BLIS |
|
6 |
VDB07 (VT-OG) |
22 |
14A005 - w/o BLIS |
|
7 |
VDB06 (GY-OG) |
18 |
14A005 - BLIS |
|
7 |
VDB06 (GY-OG) |
22 |
14A005 - w/o BLIS |
|
8 |
VDB05 (WH) |
22 |
|
|
9 |
VDB04 (WH-BU) |
22 |
|
|
10 |
VDB13 (BU-GY) |
22 |
|
|
11 |
VDB14 (VT-GY) |
22 |
|
|
12 |
VME12 (BN-WH) |
18 |
|
|
13 |
RME12 (BN-BU) |
18 |
|
|
14 |
VME10 (WH-VT) |
18 |
|
|
15 |
RME10 (WH-OG) |
18 |
|
|
16 |
VPK07 (VT) |
22 |
|
|
17 |
RPK07 (GN-OG) |
22 |
|
|
18 |
VME43 (BU) |
22 |
|
|
19 |
SME23 (VT-RD) |
22 |
|
|
20 |
CPL11 (GY-BN) |
16 |
14A005 |
|
21 |
CPL52 (VT-GY) |
18 |
|
|
22 |
VLN48 (YE-OG) |
22 |
|
|
23 |
VLN49 (YE-GN) |
22 |
|
|
24 |
VLN50 (YE-BU) |
22 |
|
|
25 |
CAT19 (BU) |
12 |
|
|
26 |
* |
* |
|
|
27 |
* |
* |
|
|
28 |
* |
* |
|
|
29 |
CHS02 (YE-BU) |
16 |
|
|
30 |
CHS07 (GY-BU) |
16 |
|
|
31 |
SBB28 (GN-RD) |
12 |
|
|
32 |
* |
* |
|
|
33 |
VHS26 (VT) |
20 |
14A005 |
|
34 |
VHS27 (WH-OG) |
20 |
14A005 |
|
35 |
VME06 (GN) |
18 |
|
|
36 |
RME06 (GY-YE) |
18 |
|
|
37 |
* |
* |
|
|
38 |
* |
* |
|
|
39 |
* |
* |
|
|
40 |
* |
* |
|
|
41 |
RMC32 (GN-WH) |
20 |
14A005 |
|
42 |
VPK40 (WH) |
26 |
14A005 |
|
43 |
RPK39 (VT) |
26 |
14A005 |
|
44 |
VDN01 (BU-WH) |
22 |
|
|
45 |
CMP18 (GN-BN) |
22 |
|
|
46 |
VDB13 (BU-GY) |
22 |
|
|
47 |
VDB14 (VT-GY) |
22 |
|
|
48 |
VMC23 (GN-OG) |
20 |
14A005 |
|
49 |
VMC11 (YE-GN) |
20 |
14A005 |
|
50 |
RMC33 (WH-VT) |
20 |
14A005 |
|
51 |
* |
* |
|
|
52 |
* |
* |
|
|
53 |
* |
* |
|
|
54 |
* |
* |
|
|
55 |
VME18 (VT) |
22 |
14A005 - Sony |
|
56 |
RME18 (YE) |
22 |
14A005 - Sony |
|
57 |
VME17 (GN) |
22 |
|
|
58 |
RME17 (GY) |
22 |
|
Pin |
Circuit |
Gauge |
Qualifier |
|
1 |
DME80 (*) |
20 |
14401 |
|
2 |
VME80 (VT-GN) |
22 |
|
|
3 |
RME80 (BU-GY) |
22 |
|
|
4 |
VPK02 (VT-WH) |
22 |
14401 |
|
5 |
RPK02 (GY-YE) |
22 |
14401 |
|
6 |
VDB07 (VT-OG) |
22 |
14401 |
|
7 |
VDB06 (GY-OG) |
22 |
14401 |
|
8 |
VDB05 (WH) |
22 |
|
|
9 |
VDB04 (WH-BU) |
22 |
|
|
10 |
VDB13 (BU-GY) |
22 |
|
|
11 |
VDB14 (VT-GY) |
22 |
|
|
12 |
VME12 (BN-WH) |
18 |
|
|
13 |
RME12 (BN-BU) |
18 |
|
|
14 |
VME10 (WH-VT) |
18 |
|
|
15 |
RME10 (WH-OG) |
18 |
|
|
16 |
VPK07 (VT) |
22 |
|
|
17 |
RPK07 (GN-OG) |
22 |
|
|
18 |
VME43 (BU) |
22 |
|
|
19 |
SME23 (VT-RD) |
22 |
|
|
20 |
CPL11 (GY-BN) |
18 |
14401 |
|
21 |
CPL52 (VT-GY) |
18 |
|
|
22 |
VLN48 (YE-OG) |
22 |
|
|
23 |
VLN49 (YE-GN) |
22 |
|
|
24 |
VLN50 (YE-BU) |
22 |
|
|
25 |
CAT19 (BU) |
12 |
|
|
26 |
* |
* |
|
|
27 |
* |
* |
|
|
28 |
* |
* |
|
|
29 |
CHS02 (YE-BU) |
16 |
|
|
30 |
CHS07 (GY-BU) |
16 |
|
|
31 |
SBB28 (GN-RD) |
12 |
|
|
32 |
* |
* |
|
|
33 |
VHS26 (VT) |
22 |
14401 |
|
34 |
VHS27 (WH-OG) |
22 |
14401 |
|
35 |
VME06 (GN) |
18 |
|
|
36 |
RME06 (GY-YE) |
18 |
|
|
37 |
* |
* |
|
|
38 |
* |
* |
|
|
39 |
* |
* |
|
|
40 |
* |
* |
|
|
41 |
RMC32 (GN-BU) |
22 |
14401 |
|
42 |
VPK40 (WH-OG) |
22 |
14401 |
|
43 |
RPK39 (VT-OG) |
22 |
14401 |
|
44 |
VDN01 (BU-WH) |
22 |
|
|
45 |
CMP18 (GN-BN) |
22 |
|
|
46 |
VDB13 (BU-GY) |
22 |
|
|
47 |
VDB14 (VT-GY) |
22 |
|
|
48 |
VMC23 (GN-OG) |
22 |
14401 |
|
49 |
VMC11 (YE-VT) |
22 |
14401 |
|
50 |
RMC33 (WH-VT) |
22 |
14401 |
|
51 |
* |
* |
|
|
52 |
* |
* |
|
|
53 |
* |
* |
|
|
54 |
* |
* |
|
|
55 |
VME18 (VT) |
22 |
14401 |
|
56 |
RME18 (YE) |
22 |
14401 |
|
57 |
VME17 (GN) |
22 |
|
|
58 |
RME17 (GY) |
22 |
