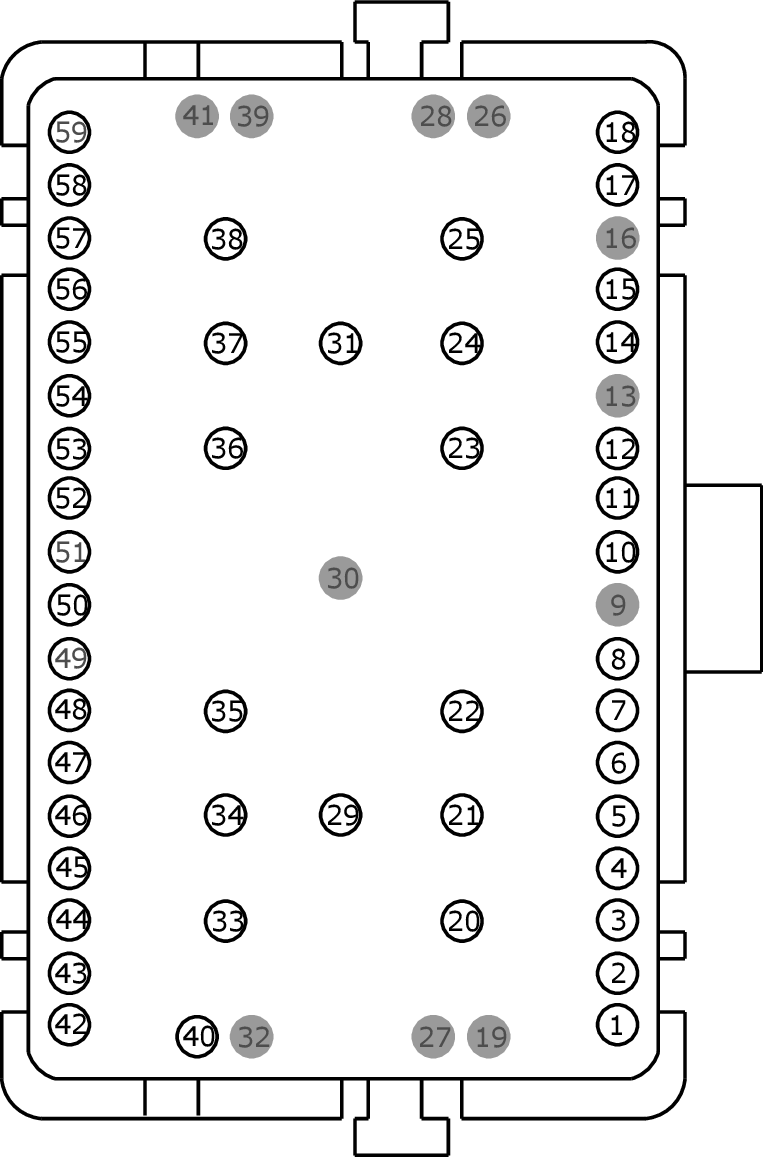

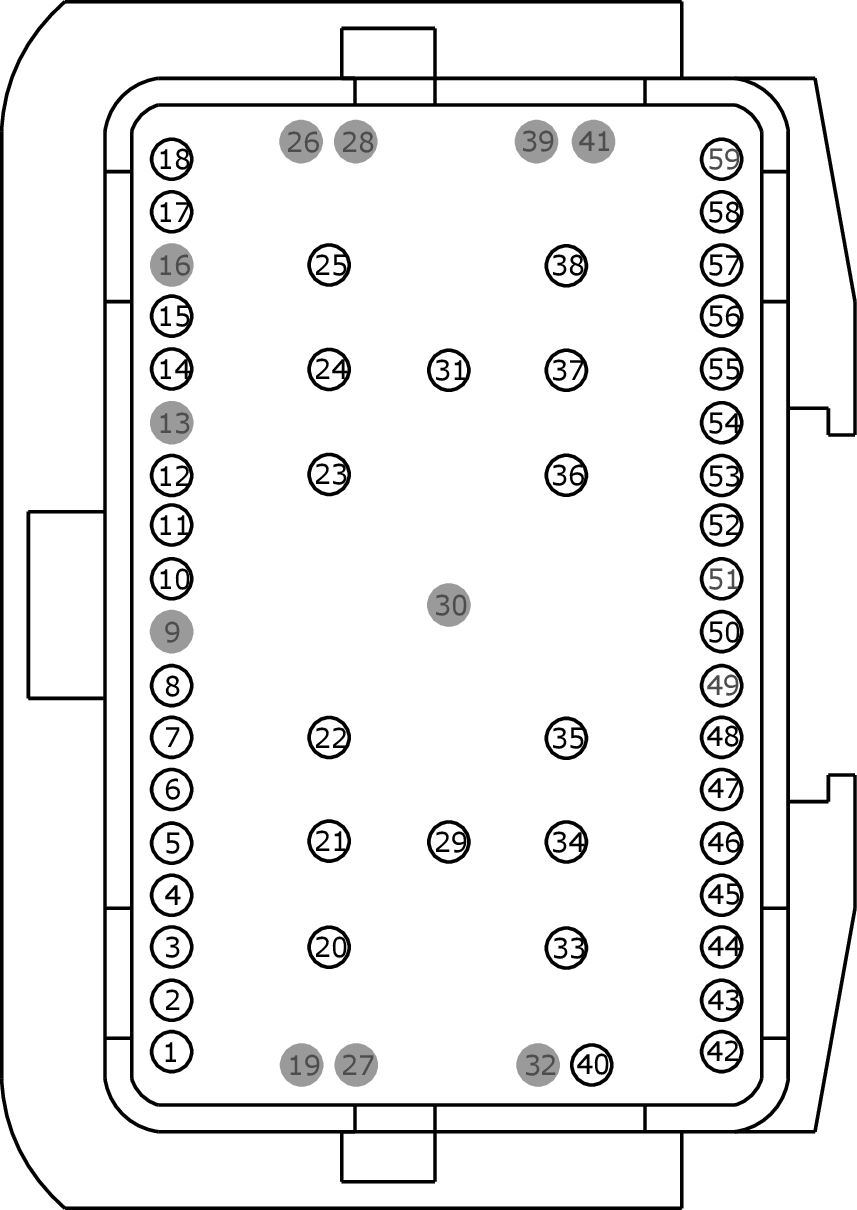

Connector End View (C212) - Inline
InlineC212
Description
Inline
Color
Base Part #
Service Pigtail
Not Available
MALE
Harness 14401
FEMALE
Harness 14290
|
Pin |
Circuit |
Gauge |
Qualifier |
|
1 |
CDC35 (BU-WH) |
22 |
14401 |
|
2 |
CCB08 (VT-WH) |
20 |
|
|
3 |
VDB04 (WH-BU) |
22 |
|
|
4 |
VDB05 (WH) |
22 |
|
|
5 |
CAP06 (GY-OG) |
22 |
14401 |
|
6 |
CAP14 (GY-BN) |
22 |
14401 |
|
7 |
CET42 (GN-VT) |
22 |
14401 |
|
8 |
VDN05 (YE) |
26 |
14401 |
|
9 |
* |
* |
|
|
10 |
CH112 (VT-WH) |
22 |
14401 |
|
11 |
VR213 (VT-GN) |
20 |
14401 |
|
12 |
RR129 (YE-GY) |
20 |
14401 |
|
13 |
* |
* |
|
|
14 |
CH122 (WH) |
26 |
14401 |
|
15 |
CH123 (VT) |
26 |
14401 |
|
16 |
* |
* |
|
|
17 |
CE436 (VT-OG) |
22 |
14401 |
|
18 |
CDC32 (BN-YE) |
20 |
|
|
19 |
* |
* |
|
|
20 |
SBB20 (GN-RD) |
16 |
14401 |
|
21 |
SBB09 (RD) |
16 |
14401 |
|
22 |
SBB28 (GN-RD) |
12 |
14401 |
|
23 |
SBB27 (BU-RD) |
16 |
14401 |
|
24 |
CBB74 (VT-BN) |
14 |
|
|
25 |
CBB73 (WH-BN) |
14 |
|
|
26 |
* |
* |
|
|
27 |
* |
* |
|
|
28 |
* |
* |
|
|
29 |
CH402 (YE-GN) |
10 |
|
|
30 |
* |
* |
|
|
31 |
CAT18 (YE-OG) |
12 |
14401 |
|
32 |
* |
* |
|
|
33 |
CAP07 (YE) |
16 |
|
|
34 |
RAP07 (BU-WH) |
16 |
|
|
35 |
VAP08 (BN) |
16 |
|
|
36 |
RAP08 (GN-BU) |
16 |
|
|
37 |
CPP01 (WH-OG) |
20 |
|
|
38 |
CAP22 (BN-YE) |
16 |
|
|
39 |
* |
* |
|
|
40 |
CPP05 (WH-VT) |
20 |
|
|
41 |
* |
* |
|
|
42 |
CE336 (GN) |
26 |
14401 |
|
43 |
CAP12 (VT-OG) |
18 |
|
|
44 |
VR214 (WH-BU) |
20 |
14401 |
|
45 |
RR130 (GN-BU) |
20 |
14401 |
|
46 |
VLF22 (VT) |
26 |
14401 - all others |
|
46 |
ZAP99 (*) |
20 |
14401 - police |
|
47 |
CRW15 (BN) |
26 |
14401 |
|
48 |
VMC05 (VT-OG) |
22 |
14401 |
|
49 |
* |
* |
|
|
50 |
SAP05 (VT) |
18 |
|
|
51 |
* |
* |
|
|
52 |
CMC20 (VT) |
26 |
14401 |
|
53 |
CET34 (BN-GN) |
22 |
14401 |
|
54 |
CET43 (GY) |
22 |
14401 |
|
55 |
LPP06 (YE-BU) |
22 |
14401 |
|
56 |
RPP06 (GN) |
22 |
14401 |
|
57 |
RE407 (YE-VT) |
20 |
|
|
58 |
RES09 (GN-VT) |
22 |
14401 |
|
Pin |
Circuit |
Gauge |
Qualifier |
|
1 |
CDC35 (BU-WH) |
18 |
14290 |
|
2 |
CCB08 (VT-WH) |
20 |
|
|
3 |
VDB04 (WH-BU) |
22 |
|
|
4 |
VDB05 (WH) |
22 |
|
|
5 |
CAP06 (GY-OG) |
20 |
14290 |
|
6 |
CAP14 (GY-BN) |
20 |
14290 |
|
7 |
CET42 (GN-VT) |
20 |
14290 |
|
8 |
VDN05 (YE-GY) |
20 |
14290 |
|
9 |
* |
* |
|
|
10 |
CH112 (VT-WH) |
20 |
14290 |
|
11 |
VR213 (VT-GN) |
18 |
14290 |
|
12 |
RR129 (YE-GY) |
18 |
14290 |
|
13 |
* |
* |
|
|
14 |
CH122 (WH-OG) |
20 |
14290 |
|
15 |
CH123 (VT-GN) |
20 |
14290 |
|
16 |
* |
* |
|
|
17 |
CE436 (VT-OG) |
20 |
14290 |
|
18 |
CDC32 (BN-YE) |
20 |
|
|
19 |
* |
* |
|
|
20 |
SBB20 (GN-RD) |
14 |
14290 |
|
21 |
SBB09 (RD) |
14 |
14290 |
|
22 |
SBB28 (GN-RD) |
14 |
14290 |
|
23 |
SBB27 (BU-RD) |
14 |
14290 |
|
24 |
CBB74 (VT-BN) |
14 |
|
|
25 |
CBB73 (WH-BN) |
14 |
|
|
26 |
* |
* |
|
|
27 |
* |
* |
|
|
28 |
* |
* |
|
|
29 |
CH402 (YE-GN) |
10 |
|
|
30 |
* |
* |
|
|
31 |
CAT18 (YE-OG) |
12 |
14290 |
|
32 |
* |
* |
|
|
33 |
CAP07 (YE) |
16 |
|
|
34 |
RAP07 (BU-WH) |
16 |
|
|
35 |
VAP08 (BN) |
16 |
|
|
36 |
RAP08 (GN-BU) |
16 |
|
|
37 |
CPP01 (WH-OG) |
20 |
|
|
38 |
CAP22 (BN-YE) |
16 |
|
|
39 |
* |
* |
|
|
40 |
CPP05 (WH-VT) |
20 |
|
|
41 |
* |
* |
|
|
42 |
CE336 (GN-WH) |
20 |
14290 |
|
43 |
CAP12 (VT-OG) |
18 |
|
|
44 |
VR214 (WH-BU) |
18 |
14290 |
|
45 |
RR130 (GN-BU) |
18 |
14290 |
|
46 |
VLF22 (VT-GN) |
20 |
14290 - all others |
|
46 |
ZAP99 (*) |
20 |
14290 - police |
|
47 |
CRW15 (BN-WH) |
20 |
14290 |
|
48 |
VMC05 (VT-OG) |
20 |
14290 |
|
49 |
* |
* |
|
|
50 |
SAP05 (VT) |
18 |
|
|
51 |
* |
* |
|
|
52 |
CMC20 (VT) |
20 |
14290 |
|
53 |
CET34 (BN-GN) |
20 |
14290 |
|
54 |
CET43 (GY) |
20 |
14290 |
|
55 |
LPP06 (YE-BU) |
22 |
14290 |
|
56 |
RPP06 (GN) |
22 |
14290 |
|
57 |
RE407 (YE-VT) |
20 |
|
|
58 |
RES09 (GN-VT) |
20 |
14290 |
