Connector End View (C213) - Inline
Inline C213
Description
Inline
Color
BK
Base Part #
Service Pigtail
Not Available

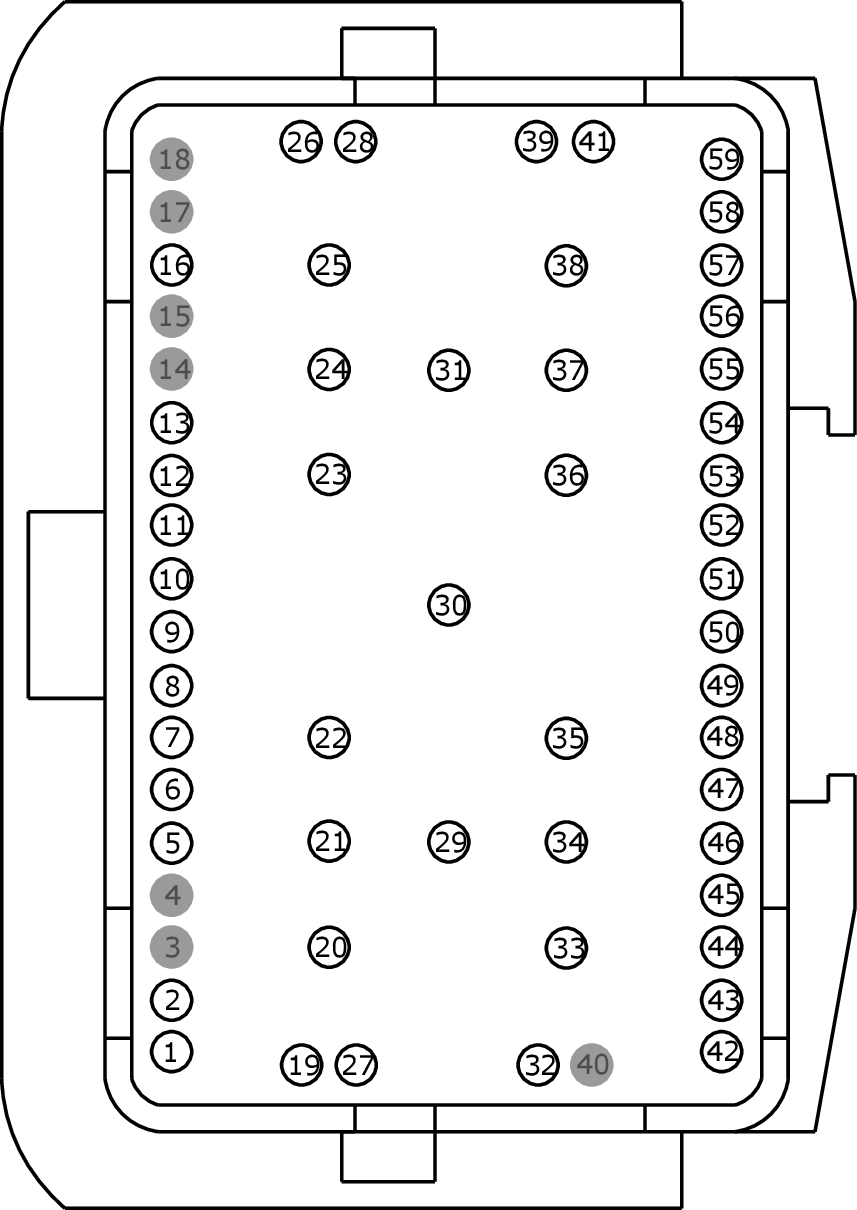

MALE
Harness 14A005

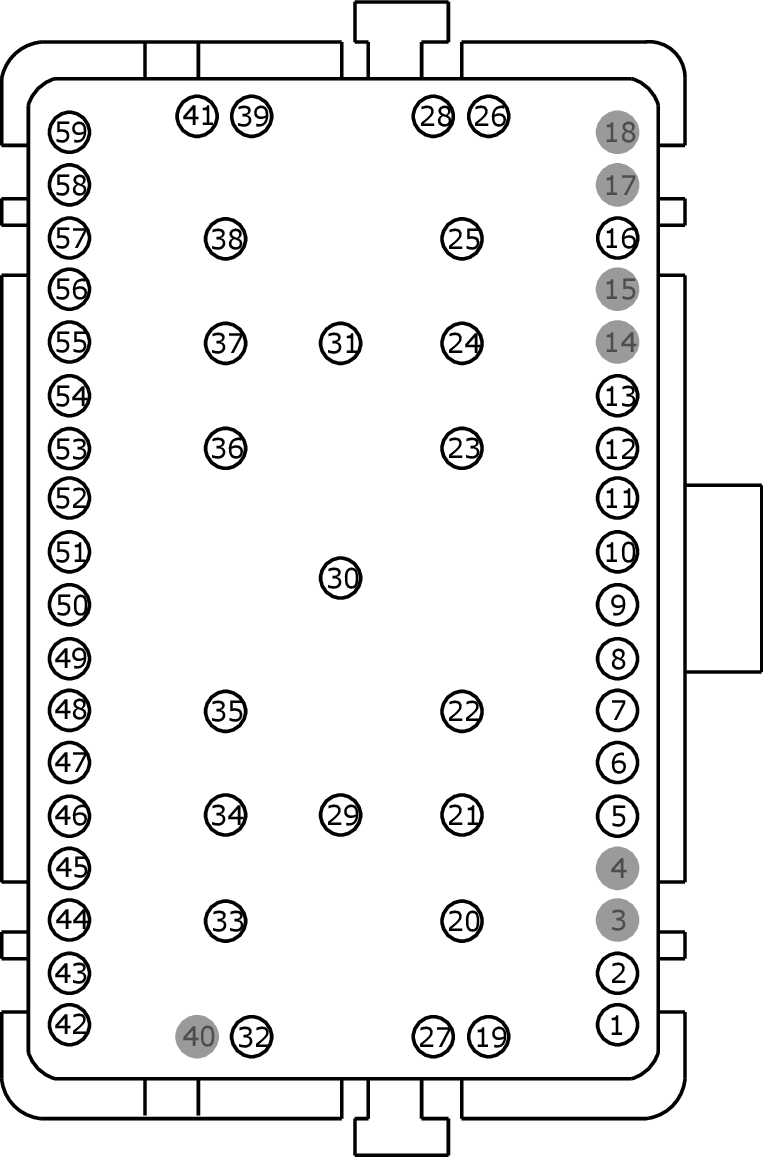

FEMALE
Harness 14290
|
Pin |
Circuit |
Gauge |
Qualifier |
|
1 |
VDB05 (WH) |
20 |
|
|
2 |
VDB04 (WH-BU) |
20 |
|
|
3 |
* |
* |
|
|
4 |
* |
* |
|
|
5 |
VCA24 (GN-OG) |
20 |
|
|
6 |
VCA23 (BU-WH) |
20 |
|
|
7 |
RE407 (YE-VT) |
20 |
14A005 |
|
8 |
VCA06 (WH-OG) |
20 |
|
|
9 |
RCA20 (BN) |
20 |
|
|
10 |
VCA04 (BU-OG) |
20 |
|
|
11 |
RCA18 (BN-GN) |
20 |
|
|
12 |
LE230 (BN-BU) |
20 |
|
|
13 |
VE922 (VT-GN) |
20 |
|
|
14 |
* |
* |
|
|
15 |
* |
* |
|
|
16 |
CBP40 (YE-GN) |
20 |
|
|
17 |
* |
* |
|
|
18 |
* |
* |
|
|
19 |
CRD17 (GY) |
18 |
14A005 |
|
20 |
SBB08 (VT-RD) |
16 |
14A005 |
|
21 |
SBB07 (WH-RD) |
12 |
|
|
22 |
SBB23 (WH-RD) |
12 |
|
|
23 |
CBK03 (GY) |
14 |
|
|
24 |
CPS53 (VT-BN) |
12 |
14A005 |
|
25 |
CAT14 (OG) |
12 |
14A005 |
|
26 |
CAT09 (GN) |
18 |
|
|
27 |
SBB86 (BN-RD) |
20 |
|
|
28 |
CAT16 (GY-BN) |
18 |
14A005 |
|
29 |
CRD06 (BN-YE) |
10 |
|
|
30 |
CE608 (VT-GN) |
10 |
|
|
31 |
SBB17 (RD) |
10 |
|
|
32 |
CAT06 (YE) |
18 |
|
|
33 |
CAP12 (VT-OG) |
18 |
police |
|
33 |
SBB61 (GY-RD) |
16 |
14A005 - with second row folding seats |
|
34 |
SBB81 (RD) |
14 |
14A005 - police |
|
34 |
SBP41 (RD) |
16 |
|
|
35 |
CAT17 (BN) |
16 |
|
|
36 |
SBB42 (YE-RD) |
12 |
|
|
37 |
CHA02 (BN-GN) |
12 |
14A005 |
|
38 |
SBB21 (GY-RD) |
14 |
|
|
39 |
VE830 (GN-WH) |
18 |
14A005 |
|
40 |
* |
* |
|
|
41 |
RMP07 (GN-WH) |
20 |
|
|
42 |
CLN09 (YE-GN) |
20 |
|
|
43 |
CLS18 (GY-BN) |
18 |
14A005 |
|
44 |
CLS19 (VT-OG) |
18 |
14A005 |
|
45 |
CLF06 (BN-GN) |
18 |
14A005 |
|
46 |
CLF07 (GY-OG) |
18 |
14A005 |
|
47 |
CRW02 (GY-BU) |
18 |
|
|
48 |
LMP07 (BU-WH) |
20 |
|
|
49 |
SBB64 (VT-RD) |
18 |
|
|
50 |
VMP21 (WH-BN) |
20 |
14A005 |
|
51 |
VCF35 (GN) |
20 |
|
|
52 |
VCF34 (WH) |
20 |
|
|
53 |
VE225 (YE-OG) |
20 |
|
|
54 |
VE518 (BN-WH) |
20 |
|
|
55 |
VDN05 (YE-GY) |
22 |
14A005 |
|
56 |
VMP20 (GY-OG) |
20 |
14A005 |
|
57 |
CE114 (GN-BU) |
20 |
|
|
58 |
CAP06 (GY-OG) |
20 |
police |
|
58 |
CBB45 (YE) |
22 |
14A005 - with rain sensor |
|
59 |
CAP14 (GY-BN) |
20 |
police |
|
Pin |
Circuit |
Gauge |
Qualifier |
|
1 |
VDB05 (WH) |
20 |
|
|
2 |
VDB04 (WH-BU) |
20 |
|
|
3 |
* |
* |
|
|
4 |
* |
* |
|
|
5 |
VCA24 (GN-OG) |
20 |
|
|
6 |
VCA23 (BU-WH) |
20 |
|
|
7 |
RE230 (WH-VT) |
20 |
14290 - 3.5L GTDI |
|
7 |
RE407 (YE-VT) |
20 |
14290 - all others |
|
8 |
VCA06 (WH-OG) |
20 |
|
|
9 |
RCA20 (BN) |
20 |
|
|
10 |
VCA04 (BU-OG) |
20 |
|
|
11 |
RCA18 (BN-GN) |
20 |
|
|
12 |
LE230 (BN-BU) |
20 |
|
|
13 |
VE922 (VT-GN) |
20 |
|
|
14 |
* |
* |
|
|
15 |
* |
* |
|
|
16 |
CBP40 (YE-GN) |
20 |
|
|
17 |
* |
* |
|
|
18 |
* |
* |
|
|
19 |
CRD17 (GY) |
20 |
14290 |
|
20 |
SBB08 (VT-RD) |
14 |
14290 |
|
21 |
SBB07 (WH-RD) |
12 |
|
|
22 |
SBB23 (WH-RD) |
12 |
|
|
23 |
CBK03 (GY) |
14 |
|
|
24 |
CPS53 (VT-BN) |
10 |
14290 |
|
25 |
CAT14 (OG) |
10 |
14290 |
|
26 |
CAT09 (GN) |
18 |
|
|
27 |
SBB86 (BN-RD) |
20 |
|
|
28 |
CAT16 (GY-BN) |
20 |
14290 |
|
29 |
CRD06 (BN-YE) |
10 |
|
|
30 |
CE608 (VT-GN) |
10 |
|
|
31 |
SBB17 (RD) |
10 |
|
|
32 |
CAT06 (YE) |
18 |
|
|
33 |
CAP12 (VT-OG) |
18 |
police |
|
33 |
SBB61 (GY-RD) |
18 |
14290 - with second row folding seats |
|
34 |
SBB81 (RD) |
16 |
14290 - police |
|
34 |
SBP41 (VT-RD) |
14 |
|
|
35 |
CAT17 (BN) |
16 |
|
|
36 |
SBB42 (YE-RD) |
12 |
|
|
37 |
CHA02 (BN-GN) |
10 |
14290 |
|
38 |
SBB21 (GY-RD) |
14 |
|
|
39 |
VE830 (GN-WH) |
18 |
14290 - 3.5L GTDI |
|
39 |
VE830 (GN-WH) |
20 |
14290 - 2.0L GTDI |
|
40 |
* |
* |
|
|
41 |
RMP07 (GN-WH) |
20 |
|
|
42 |
CLN09 (YE-GN) |
20 |
|
|
43 |
CLS18 (GY-BN) |
20 |
14290 |
|
44 |
CLS19 (VT-OG) |
20 |
14290 |
|
45 |
CLF06 (BN-GN) |
20 |
14290 |
|
46 |
CLF07 (GY-OG) |
20 |
14290 |
|
47 |
CRW02 (GY-BU) |
18 |
|
|
48 |
LMP07 (BU-WH) |
20 |
|
|
49 |
SBB64 (VT-RD) |
18 |
|
|
50 |
VMP21 (WH-BN) |
18 |
14290 |
|
51 |
VCF35 (GN) |
20 |
|
|
52 |
VCF34 (WH) |
20 |
|
|
53 |
VE225 (YE-OG) |
20 |
|
|
54 |
VE518 (BN-WH) |
20 |
|
|
55 |
VDN05 (YE-GY) |
20 |
14290 |
|
56 |
VMP20 (GY-OG) |
18 |
14290 |
|
57 |
CE114 (GN-BU) |
20 |
|
|
58 |
CAP06 (GY-OG) |
20 |
police |
|
58 |
CBB45 (YE) |
20 |
14290 - with rain sensor |
|
59 |
CAP14 (GY-BN) |
20 |
police |
