Connector End View (C217) - HORN SWITCH
Connector: C217
Description
HORN SWITCH
Color
BK
Harness
PIA
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CRH02 (BU) |
20 |
SWITCH - HORN |
|
|
2 |
RRH02 (PK) |
20 |
GROUND - INSTRUMENT PANEL STRUCTURE |
|

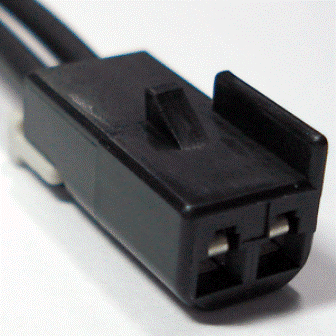

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-967 |
Service Part Number: 3U2Z-14S411-CZB Gauge: 16 Pin material: Tin Cavities: 2 Vehicle Uses Module - Auto Lamps Sensor - EATC In Car Temperature Sensor - Sunload Switch - Overdrive Cancel |
