Connector End View (C254) - GLOVE BOX LAMP

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CLN09 (YE-GN)

20

RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING)

2

GD215 (BK-GY)

20

GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT

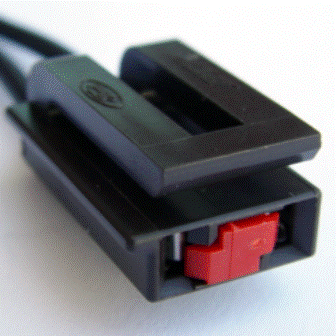

Available Pigtail Kits

Pigtail Kit Part Number

WPT-314

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-EHA

Gauge:

14

Pin material:

Tin

Cavities:

2

Vehicle Uses

Lamp - CHMSL (Center High Mount Stop Lamp)

Lamp - Courtesy - Door

Lamp - Glove Box

Motor - Rear Quarter Flip Window

Sensor - Sunload

Speaker - Tweeter - LH - Front

Speaker - Tweeter - RH - Front

Switch - Courtesy Lamp - LH

Switch - Moon Roof/Sun Roof

Switch - Power Window - Quarter Glass

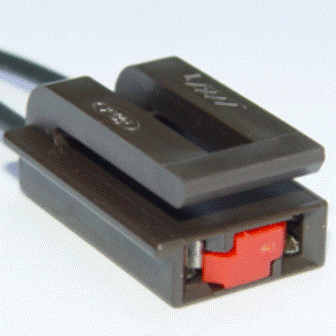

Pigtail Kit Part Number

WPT-841

Courtesy of FORD MOTOR COMPANY

Service Part Number:

5U2Z-14S411-AA

Gauge:

18

Pin material:

Tin

Cavities:

2

Vehicle Uses

Lamp - Courtesy Lamp - RH
