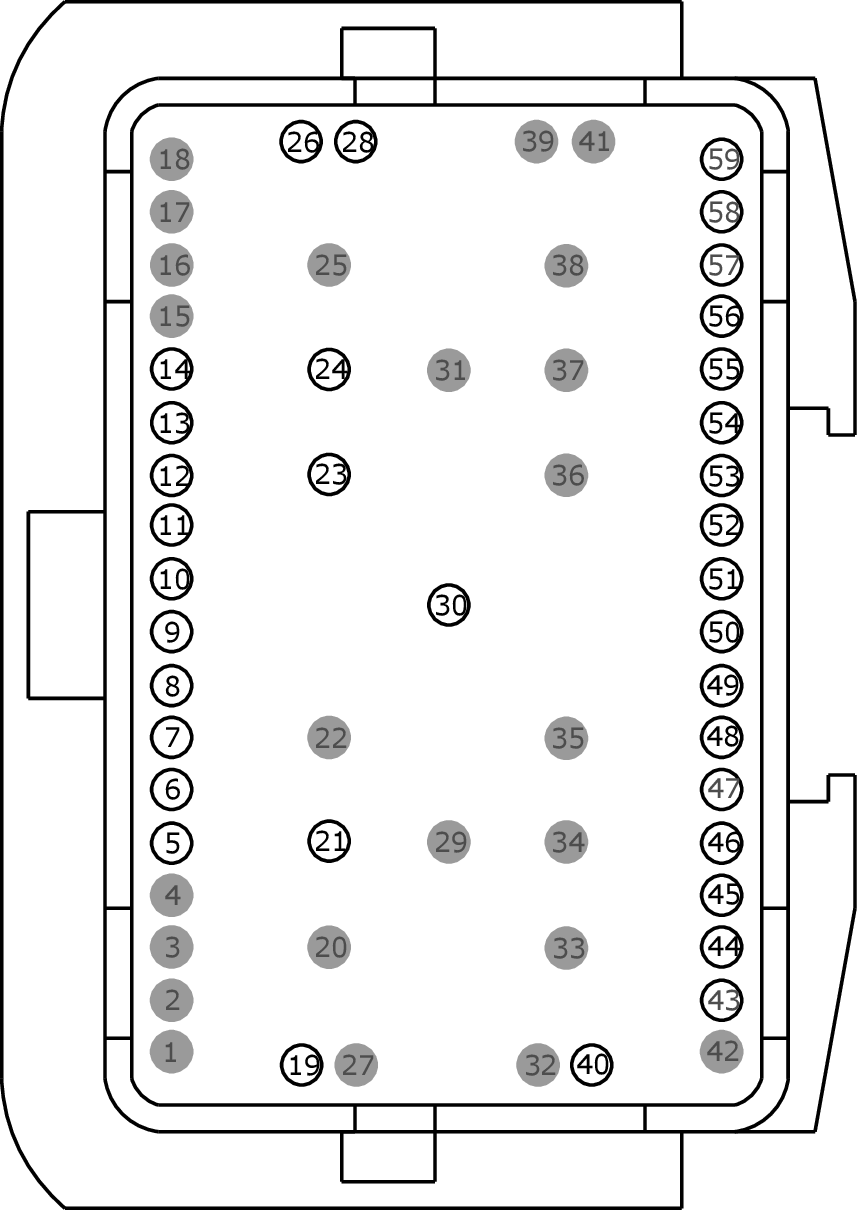

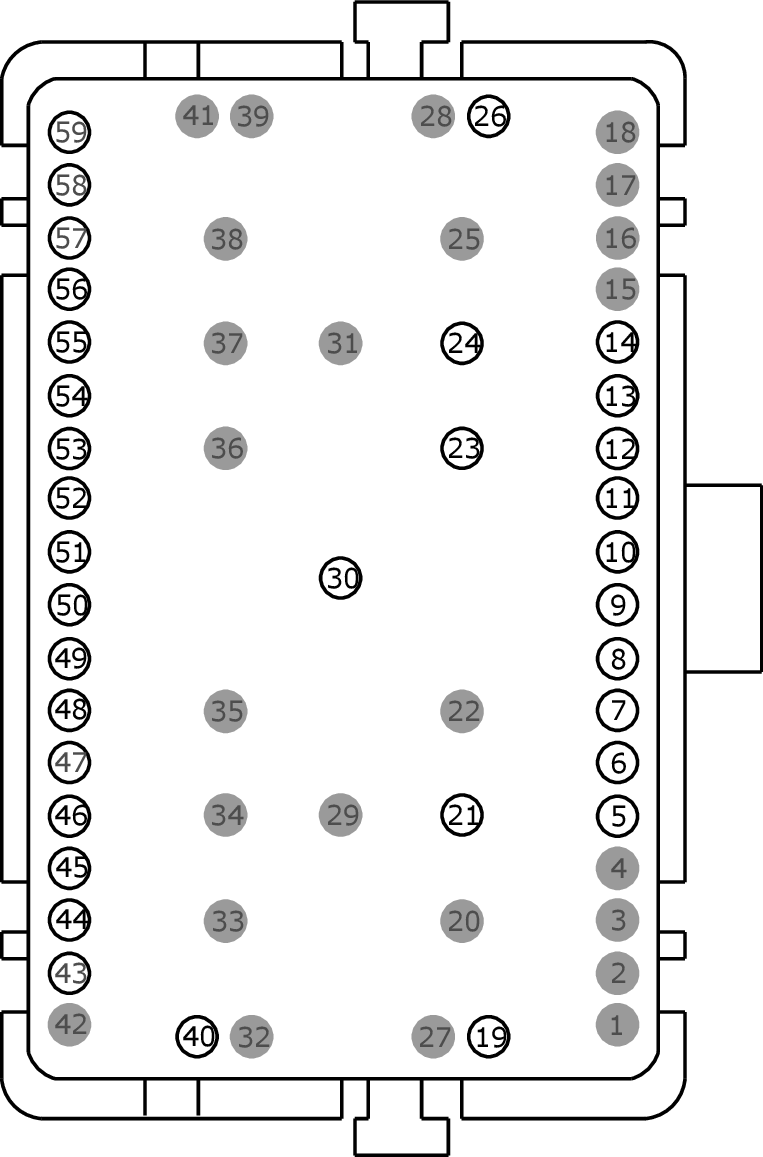

Connector End View (C300) - Inline
Inline C300
Description
Inline
Color
BK
Base Part #
Service Pigtail
Not Available
MALE
Harness 14D231
FEMALE
Harness 14A005
|
Pin |
Circuit |
Gauge |
Qualifier |
|
1 |
* |
* |
|
|
2 |
* |
* |
|
|
3 |
* |
* |
|
|
4 |
* |
* |
|
|
5 |
VDB06 (GY-OG) |
20 |
14D231 |
|
6 |
VDB07 (VT-OG) |
20 |
14D231 |
|
7 |
VPM35 (YE-BU) |
20 |
14D231 |
|
8 |
VPM36 (BN-YE) |
20 |
14D231 |
|
9 |
VPM38 (BN-GN) |
20 |
14D231 |
|
10 |
RPM30 (YE) |
20 |
14D231 |
|
11 |
CPM28 (BU-BN) |
18 |
14D231 |
|
12 |
CPM26 (WH) |
18 |
14D231 |
|
13 |
CPM33 (WH-VT) |
18 |
14D231 |
|
14 |
LPM30 (GY-VT) |
20 |
14D231 |
|
15 |
* |
* |
|
|
16 |
* |
* |
|
|
17 |
* |
* |
|
|
18 |
* |
* |
|
|
19 |
CBX03 (BU-RD) |
20 |
14D231 |
|
20 |
* |
* |
|
|
21 |
CBX04 (WH-RD) |
18 |
14D231 |
|
22 |
* |
* |
|
|
23 |
CPM04 (VT-BN) |
18 |
14D231 |
|
24 |
CPM39 (GN-VT) |
18 |
14D231 |
|
25 |
* |
* |
|
|
26 |
GD905 (BK-GN) |
20 |
14D231 |
|
27 |
* |
* |
|
|
28 |
CPM22 (GY-BN) |
18 |
14D231 |
|
29 |
* |
* |
|
|
30 |
GD906 (BK-GY) |
14 |
14D231 |
|
31 |
* |
* |
|
|
32 |
* |
* |
|
|
33 |
* |
* |
|
|
34 |
* |
* |
|
|
35 |
* |
* |
|
|
36 |
* |
* |
|
|
37 |
* |
* |
|
|
38 |
* |
* |
|
|
39 |
* |
* |
|
|
40 |
CPP09 (VT-OG) |
20 |
14D231 |
|
41 |
* |
* |
|
|
42 |
* |
* |
|
|
43 |
* |
* |
|
|
44 |
CPS15 (VT-WH) |
20 |
14D231 |
|
45 |
CPS16 (YE) |
20 |
14D231 |
|
46 |
CPS14 (GY-VT) |
20 |
14D231 |
|
47 |
* |
* |
|
|
48 |
CPM31 (YE-GY) |
18 |
14D231 |
|
49 |
RPM11 (YE-OG) |
20 |
14D231 |
|
50 |
CPM29 (GN) |
18 |
14D231 |
|
51 |
CPM16 (BN-BU) |
20 |
14D231 |
|
52 |
CPM20 (BN-WH) |
20 |
14D231 |
|
53 |
VPM37 (BU-OG) |
20 |
14D231 |
|
54 |
CPM17 (BU-GN) |
20 |
14D231 |
|
55 |
CPM21 (YE-VT) |
20 |
14D231 |
|
56 |
CPM34 (WH-BN) |
18 |
14D231 |
|
57 |
* |
* |
|
|
58 |
* |
* |
|
Pin |
Circuit |
Gauge |
Qualifier |
|
1 |
* |
* |
|
|
2 |
* |
* |
|
|
3 |
* |
* |
|
|
4 |
* |
* |
|
|
5 |
VDB06 (GY-OG) |
22 |
14A005 |
|
6 |
VDB07 (VT-OG) |
22 |
14A005 |
|
7 |
VPM35 (YE-BU) |
22 |
14A005 |
|
8 |
VPM36 (BN-YE) |
22 |
14A005 |
|
9 |
VPM38 (BN-GN) |
22 |
14A005 |
|
10 |
RPM30 (YE) |
22 |
14A005 |
|
11 |
CPM28 (BU-BN) |
22 |
14A005 |
|
12 |
CPM26 (WH) |
22 |
14A005 |
|
13 |
CPM33 (WH-VT) |
22 |
14A005 |
|
14 |
LPM30 (GY-VT) |
22 |
14A005 |
|
15 |
* |
* |
|
|
16 |
* |
* |
|
|
17 |
* |
* |
|
|
18 |
* |
* |
|
|
19 |
SBP07 (WH-RD) |
20 |
14A005 |
|
20 |
* |
* |
|
|
21 |
SBP19 (BU-RD) |
16 |
14A005 |
|
22 |
* |
* |
|
|
23 |
CPM02 (BU) |
22 |
14A005 |
|
24 |
CPM01 (YE-GN) |
22 |
14A005 |
|
25 |
* |
* |
|
|
26 |
GD233 (BK) |
22 |
14A005 |
|
27 |
* |
* |
|
|
28 |
* |
* |
14A005 |
|
29 |
* |
* |
|
|
30 |
GD233 (BK) |
12 |
14A005 |
|
31 |
* |
* |
|
|
32 |
* |
* |
|
|
33 |
* |
* |
|
|
34 |
* |
* |
|
|
35 |
* |
* |
|
|
36 |
* |
* |
|
|
37 |
* |
* |
|
|
38 |
* |
* |
|
|
39 |
* |
* |
|
|
40 |
CPM22 (GY-BN) |
22 |
14A005 |
|
41 |
* |
* |
|
|
42 |
* |
* |
|
|
43 |
* |
* |
|
|
44 |
CPS15 (VT-WH) |
22 |
14A005 |
|
45 |
CPS16 (YE) |
22 |
14A005 |
|
46 |
CPS14 (GY-VT) |
22 |
14A005 |
|
47 |
* |
* |
|
|
48 |
CPM31 (YE-GY) |
22 |
14A005 |
|
49 |
RPM11 (YE-OG) |
22 |
14A005 |
|
50 |
CPM29 (GN) |
22 |
14A005 |
|
51 |
CPM16 (BN-BU) |
22 |
14A005 |
|
52 |
CPM20 (BN-WH) |
22 |
14A005 |
|
53 |
VPM37 (BU-OG) |
22 |
14A005 |
|
54 |
CPM17 (BU-GN) |
22 |
14A005 |
|
55 |
CPM21 (YE-VT) |
22 |
14A005 |
|
56 |
CPM34 (WH-BN) |
22 |
14A005 |
|
57 |
* |
* |
|
|
58 |
* |
* |
