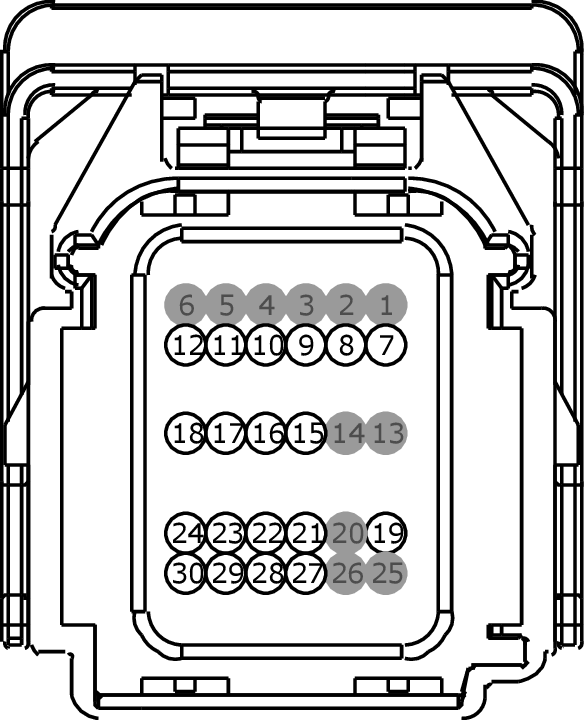

Connector End View (C310A) - RESTRAINTS CONTROL MODULE (RCM)
Connector: C310A
Description
RESTRAINTS CONTROL MODULE (RCM)
Color
BK
Harness
14401
Base Part #
14B312
Service Pigtail
Not Available
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
* |
* |
Not Used |
|
|
2 |
* |
* |
Not Used |
|
|
3 |
* |
* |
Not Used |
|
|
4 |
* |
* |
Not Used |
|
|
5 |
* |
* |
Not Used |
|
|
6 |
* |
* |
Not Used |
|
|
7 |
CR169 (VT) |
20 |
CTRL MOD. - AIR BAG PASSENGER KNEE + |
|
|
8 |
RR169 (GY-VT) |
20 |
CTRL MOD. - AIR BAG PASSENGER KNEE - |
|
|
9 |
RR103 (VT-GN) |
20 |
CTRL MOD. - AIR BAG FRONT PASSENGER ADAPTIVE VENTING - |
|
|
10 |
CR103 (GY-BU) |
20 |
CTRL MOD. - AIR BAG FRONT PASSENGER ADAPTIVE VENTING + |
|
|
11 |
CR168 (WH-GN) |
20 |
CTRL MOD. - PYROTECHNIC STEERING COLUMN + |
|
|
12 |
RR168 (BU-WH) |
20 |
CTRL MOD. - PYROTECHNIC STEERING COLUMN - |
|
|
13 |
* |
* |
Not Used |
|
|
14 |
* |
* |
Not Used |
|
|
15 |
RR130 (GN-BU) |
20 |
CTRL MOD. - SENSOR IMPACT FRONT RH RTN |
|
|
16 |
VR214 (WH-BU) |
20 |
SENSOR - IMPACT FRONT RH FEED |
|
|
17 |
VR213 (VT-GN) |
20 |
SENSOR - IMPACT FRONT LH FEED |
|
|
18 |
RR129 (YE-GY) |
20 |
CTRL MOD. - SENSOR IMPACT FRONT LH RTN |
|
|
19 |
CBP37 (WH) |
20 |
FUSE - 37 OR CIRCUIT BREAKER |
|
|
20 |
* |
* |
Not Used |
|
|
21 |
RR102 (WH) |
20 |
CTRL MOD. - AIR BAG DRIVER 2 - |
|
|
22 |
CR102 (BU) |
20 |
CTRL MOD. - AIR BAG DRIVER 2 + |
|
|
23 |
CR104 (YE-GY) |
20 |
CTRL MOD. - AIR BAG FRONT PASSENGER 2 + |
|
|
24 |
RR104 (WH-BU) |
20 |
CTRL MOD. - AIR BAG FRONT PASSENGER 2 - |
|
|
25 |
* |
* |
Not Used |
|
|
26 |
* |
* |
Not Used |
|
|
27 |
RR144 (VT-GN) |
20 |
CTRL MOD. - AIR BAG FRONT PASSENGER 1 - |
|
|
28 |
CR144 (GY-OG) |
20 |
CTRL MOD. - AIR BAG FRONT PASSENGER 1 + |
|
|
29 |
CR101 (VT-BN) |
20 |
CTRL MOD. - AIR BAG DRIVER 1 + |
|
|
30 |
RR101 (YE-GN) |
20 |
CTRL MOD. - AIR BAG DRIVER 1 - |
