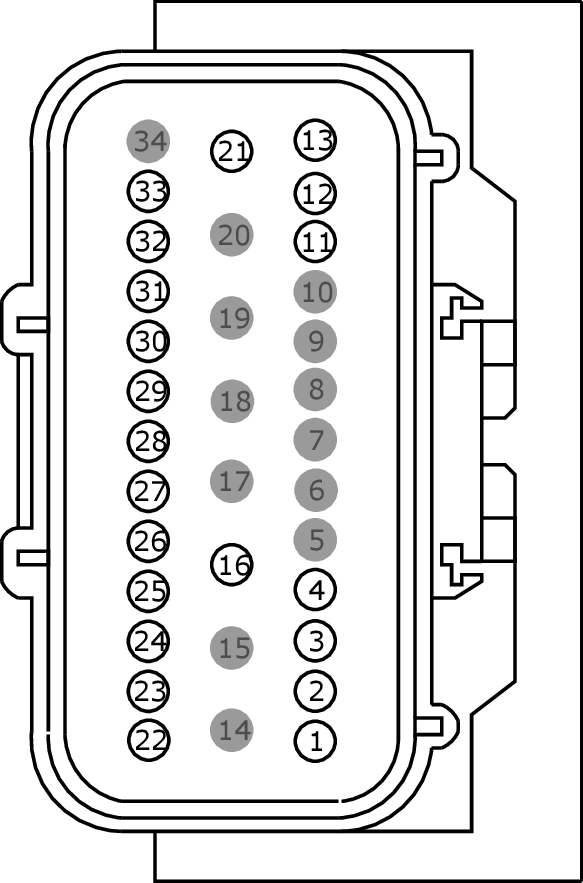

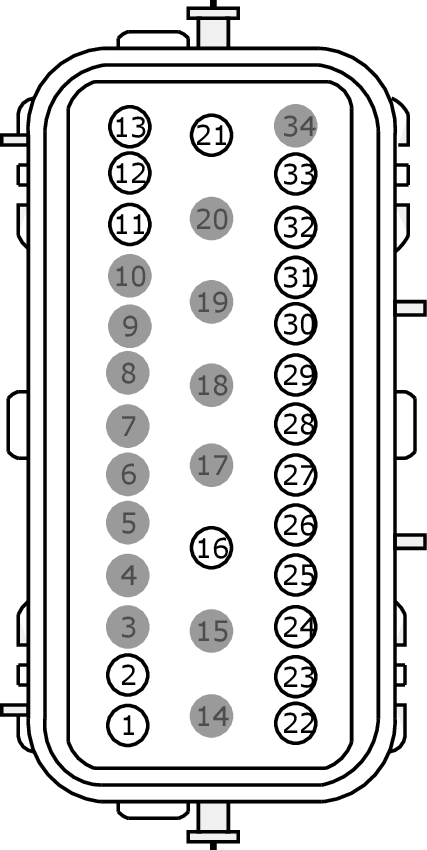

Connector End View (C311) - Inline
Inline C311
Description
Inline
Color
BK
Base Part #
Service Pigtail
Not Available
MALE
Harness 14A005
FEMALE
Harness 14D231
|
Pin |
Circuit |
Gauge |
Qualifier |
|
1 |
CR105 (GN-BU) |
20 |
|
|
2 |
RR105 (GY-YE) |
20 |
|
|
3 |
* |
* |
14A005 |
|
4 |
* |
* |
14A005 |
|
5 |
* |
* |
|
|
6 |
* |
* |
|
|
7 |
* |
* |
|
|
8 |
* |
* |
|
|
9 |
* |
* |
|
|
10 |
* |
* |
|
|
11 |
CR201 (GN-BU) |
20 |
|
|
12 |
RR137 (BU-GY) |
20 |
14A005 |
|
13 |
VR215 (YE-VT) |
20 |
|
|
14 |
* |
* |
|
|
15 |
* |
* |
|
|
16 |
GD349 (BK-GY) |
12 |
14A005 |
|
17 |
* |
* |
|
|
18 |
* |
* |
|
|
19 |
* |
* |
|
|
20 |
* |
* |
|
|
21 |
SBB23 (WH-RD) |
12 |
14A005 |
|
22 |
CHS02 (YE-BU) |
16 |
|
|
23 |
VHS26 (VT) |
20 |
|
|
24 |
RH111 (GY-BU) |
20 |
14A005 - with heated seats |
|
24 |
RHS05 (YE-VT) |
20 |
with climate controlled seats |
|
25 |
RHS02 (BU-OG) |
16 |
|
|
26 |
RHS03 (GY-OG) |
16 |
|
|
27 |
VHS18 (BN-GN) |
20 |
|
|
28 |
RHS15 (GY-BN) |
20 |
|
|
29 |
RHS01 (WH-VT) |
16 |
|
|
30 |
VHS16 (BU-GN) |
20 |
|
|
31 |
CHS01 (GY-VT) |
16 |
|
|
32 |
CHS03 (GN-BN) |
16 |
|
|
33 |
VHS35 (VT-OG) |
20 |
|
Pin |
Circuit |
Gauge |
Qualifier |
|
1 |
CR105 (GN-BU) |
20 |
|
|
2 |
RR105 (GY-YE) |
20 |
|
|
3 |
CR120 (BU-OG) |
20 |
14D231 |
|
4 |
RR120 (BN-GN) |
20 |
14D231 |
|
5 |
* |
* |
|
|
6 |
* |
* |
|
|
7 |
* |
* |
|
|
8 |
* |
* |
|
|
9 |
* |
* |
|
|
10 |
* |
* |
|
|
11 |
CR201 (GN-BU) |
20 |
|
|
12 |
RR137 (BU-GY) |
22 |
14D231 |
|
13 |
VR215 (YE-VT) |
20 |
|
|
14 |
* |
* |
|
|
15 |
* |
* |
|
|
16 |
GD904 (BK-BU) |
14 |
14D231 |
|
17 |
* |
* |
|
|
18 |
* |
* |
|
|
19 |
* |
* |
|
|
20 |
* |
* |
|
|
21 |
CBX05 (VT-RD) |
14 |
14D231 |
|
22 |
CHS02 (YE-BU) |
16 |
|
|
23 |
VHS26 (VT) |
20 |
|
|
24 |
RHS05 (YE-VT) |
20 |
14D231 - with heated seats |
|
24 |
RHS05 (YE-VT) |
20 |
with climate controlled seats |
|
25 |
RHS02 (BU-OG) |
16 |
|
|
26 |
RHS03 (GY-OG) |
16 |
|
|
27 |
VHS18 (BN-GN) |
20 |
|
|
28 |
RHS15 (GY-BN) |
20 |
|
|
29 |
RHS01 (WH-VT) |
16 |
|
|
30 |
VHS16 (BU-GN) |
20 |
|
|
31 |
CHS01 (GY-VT) |
16 |
|
|
32 |
CHS03 (GN-BN) |
16 |
|
|
33 |
VHS35 (VT-OG) |
20 |
