Connector End View (C1077) - ENGINE COOLING FAN MOTOR 2

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CBB29 (WH-VT)

8

FUSE - 29 OR CIRCUIT BREAKER (FANPWR)

TIVCT, 3.5L GTDI

1

CBB31 (BU-OG)

8

FUSE - 31 OR CIRCUIT BREAKER (FANPWR) HFC #2

2.0L GTDI

2

GD123 (BK-GY)

8

GROUND - FENDER FRONT RIGHT

2.0L GTDI

2

CBB31 (BU-OG)

8

FUSE - 31 OR CIRCUIT BREAKER

TIVCT, 3.5L GTDI

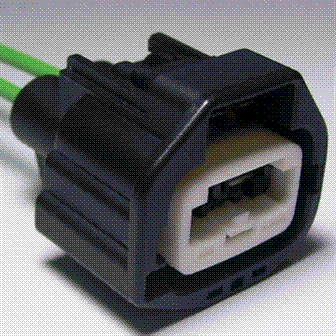

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1417

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-EUAB

Gauge:

14

Pin material:

Silver

Cavities:

2

Vehicle Uses

Motor - Engine Cooling Fan

Pump - Fuel (External)

Resistor - Fan Dropping

Trailer Tow - Vehicle Side
