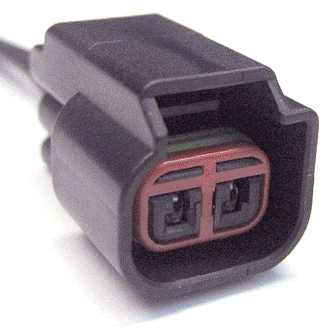

Connector End View (C1196) - EVAPORATIVE EMISSION (EVAP) PURGE VALVE

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CE113 (WH-BN)

18

CTRL MOD. - POWERTRAIN # EVAPORATIVE EMISSION (EVAP) PURGE VALVE (EVAPCP)

2

CBK02 (GN)

18

FUSE - 67 OR CIRCUIT BREAKER (VPWR)

Available Pigtail Kits

Pigtail Kit Part Number

WPT-905

Courtesy of FORD MOTOR COMPANY

Service Part Number:

8U2Z-14S411-EA

Gauge:

16

Pin material:

Tin

Cavities:

2

Vehicle Uses

Relay - Daytime Running Lamp (DRL)

Switch - Heater / A/C Blower (Front)
