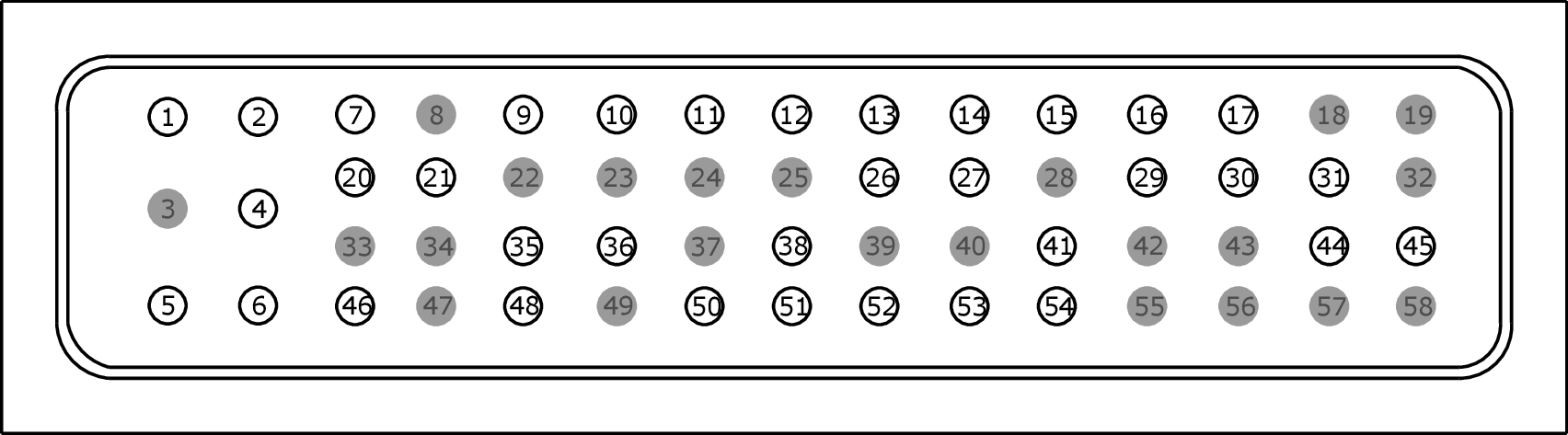

Connector End View (C1381B) - POWERTRAIN CONTROL MODULE (PCM)
Connector: C1381B
Description
POWERTRAIN CONTROL MODULE (PCM)
Color
Harness
14290
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
GD113 (BK-YE) |
16 |
GROUND - COWL TOP RIGHT (PWRGND) |
|
|
2 |
GD113 (BK-YE) |
16 |
GROUND - COWL TOP RIGHT (PWRGND) |
|
|
3 |
* |
* |
Not Used |
|
|
4 |
GD113 (BK-YE) |
16 |
GROUND - COWL TOP RIGHT (PWRGND) |
|
|
5 |
CBB69 (WH-VT) |
16 |
FUSE - 69 OR CIRCUIT BREAKER (VPWR) |
|
|
6 |
CBB69 (WH-VT) |
16 |
FUSE - 69 OR CIRCUIT BREAKER (VPWR) |
|
|
7 |
LE230 (BN-BU) |
20 |
CTRL MOD. - POWERTRAIN # REFERENCE VOLTAGE (VREF) |
|
|
8 |
* |
* |
Not Used |
|
|
9 |
CDC12 (YE) |
20 |
CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL (SMC) |
|
|
10 |
CH302 (WH-BN) |
20 |
CTRL MOD. - POWERTRAIN # A/C CLUTCH CONTROL RELAY / WOT AC CUTOFF (ACCR) |
|
|
11 |
CE336 (GN-WH) |
18 |
CTRL MOD. - POWERTRAIN # STARTER MOTOR RELAY ONE TOUCH START (SMRC) |
|
|
12 |
VE518 (BN-WH) |
20 |
MONITOR - FUEL PUMP (FPM) |
|
|
13 |
CET40 (GN-OG) |
20 |
SWITCH - TRANSMISSION RANGE # PARK/NEUTRAL (TRSW-PN) |
|
|
14 |
CE436 (VT-OG) |
20 |
CTRL MOD. -WAKE UP PCM |
|
|
15 |
CBB90 (YE-OG) |
20 |
FUSE - 90 OR CIRCUIT BREAKER (ISP-R) |
|
|
16 |
CES09 (VT-OG) |
20 |
SWITCH - BRAKE PEDAL # SPEED CONTROL DEACTIVATION (BPS) |
|
|
17 |
CDC35 (BU-WH) |
18 |
SWITCH - IGNITION # START |
|
|
18 |
* |
* |
Not Used |
|
|
19 |
* |
* |
Not Used |
|
|
20 |
CE233 (WH-OG) |
20 |
CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 1ST OR UNIQUE (HTR12) |
|
|
21 |
RE407 (YE-VT) |
20 |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (SIGRTN) |
|
|
22 |
* |
* |
Not Used |
|
|
23 |
* |
* |
Not Used |
|
|
24 |
* |
* |
Not Used |
|
|
25 |
* |
* |
Not Used |
|
|
26 |
VE702 (BU-WH) |
20 |
SENSOR - ACCELERATOR PEDAL POSITION # 2 (APP2) |
|
|
27 |
CE237 (BN-WH) |
18 |
CTRL MOD. - POWERTRAIN # HOLD PCM RELAY (PCMRC) |
|
|
28 |
* |
* |
Not Used |
|
|
29 |
CDC15 (VT) |
20 |
GENERATOR (ALTERNATOR) # LOAD INPUT (GENLI) |
|
|
30 |
CCB08 (VT-WH) |
20 |
SWITCH - BRAKE PEDAL POSITION (BPP) NORMAL OPEN |
|
|
31 |
LE424 (YE-GN) |
20 |
CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE COWL (VREF) |
|
|
32 |
* |
* |
Not Used |
|
|
33 |
* |
* |
Not Used |
|
|
34 |
* |
* |
Not Used |
|
|
35 |
VH407 (YE-GN) |
20 |
SENSOR - AMBIENT AIR TEMPERATURE (AAT) |
|
|
36 |
RE136 (VT-GN) |
20 |
CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APPRTN1) |
|
|
37 |
* |
* |
Not Used |
|
|
38 |
RE137 (YE-GN) |
20 |
CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APPRTN2) |
|
|
39 |
* |
* |
Not Used |
|
|
40 |
* |
* |
Not Used |
|
|
41 |
VDB05 (WH) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW |
|
|
42 |
* |
* |
Not Used |
|
|
43 |
* |
* |
Not Used |
|
|
44 |
CE114 (GN-BU) |
20 |
CTRL MOD. - POWERTRAIN # EVAPORATIVE EMISSION (EVAP) CANISTER VENT VALVE (CANV) |
|
|
45 |
VE225 (YE-OG) |
20 |
FUEL PUMP COMMAND (FPC) |
|
|
46 |
LE137 (BU-GY) |
18 |
CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APPVREF2) |
|
|
47 |
* |
* |
Not Used |
|
|
48 |
VE731 (YE-GN) |
20 |
SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (HO2S12) |
|
|
49 |
* |
* |
Not Used |
|
|
50 |
VDC61 (VT-GN) |
20 |
SENSOR - BATTERY MONITORING SYSTEM # ALTERNATOR |
|
|
51 |
VH433 (VT-OG) |
20 |
TRANSDUCER - A/C PRESSURE (ACPT) |
|
|
52 |
VE701 (YE-OG) |
20 |
SENSOR - ACCELERATOR PEDAL POSITION # 1 (APP1) |
|
|
53 |
LE136 (GN-OG) |
20 |
CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APPVREF1) |
|
|
54 |
VDB04 (WH-BU) |
20 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH |
|
|
55 |
* |
* |
Not Used |
|
|
56 |
* |
* |
Not Used |
|
|
57 |
* |
* |
Not Used |
|
|
58 |
* |
* |
Not Used |
|

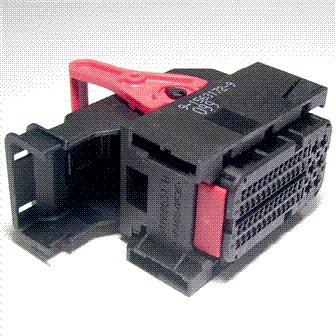

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1445 |
Service Part Number: FU2Z-14S411-VA Gauge: 14 18 Pin material: Silver Cavities: 58 Vehicle Uses Transmission |
