Connector End View (C1452) - VARIABLE CAMSHAFT TIMING 21 (VCT21) SOLENOID
Connector: C1452
Description
VARIABLE CAMSHAFT TIMING 21 (VCT21) SOLENOID
Color
Harness
12C508
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CBK02 (GN) |
18 |
FUSE - 67 OR CIRCUIT BREAKER (VPWR) |
|
|
2 |
CE422 (WH-OG) |
20 |
CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING 21 (VCT21) |
|
Available Pigtail Kits |
|
|

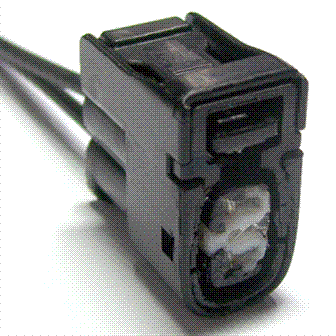

Pigtail Kit Part Number WPT-1094 |
Service Part Number: AU2Z-14S411-ADA Gauge: 16 Pin material: Tin (greased) Cavities: 2 Vehicle Uses Solenoid - Engine Variable Timing |
