Connector End View (C1471) - SIREN SPEAKER
Connector: C1471
Description
SIREN SPEAKER
Color
BK
Harness
14290
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CAP07 (YE) |
16 |
SIREN - POLICE + |
|
|
2 |
* |
* |
Not Used |
|
|
3 |
* |
* |
Not Used |
|
|
4 |
RAP07 (BU-WH) |
16 |
SIREN - POLICE - |
|

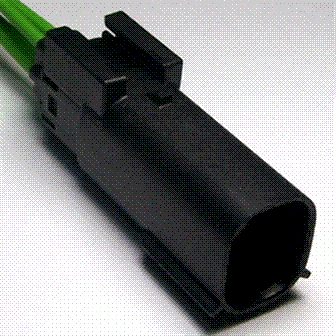

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1288 |
Service Part Number: CU2Z-14S411-ZA Gauge: 16 Pin material: Silver Cavities: 4 Vehicle Uses Sensor - Catalyst Monitor Sensor - O2 (HEGO/ EGO) |
