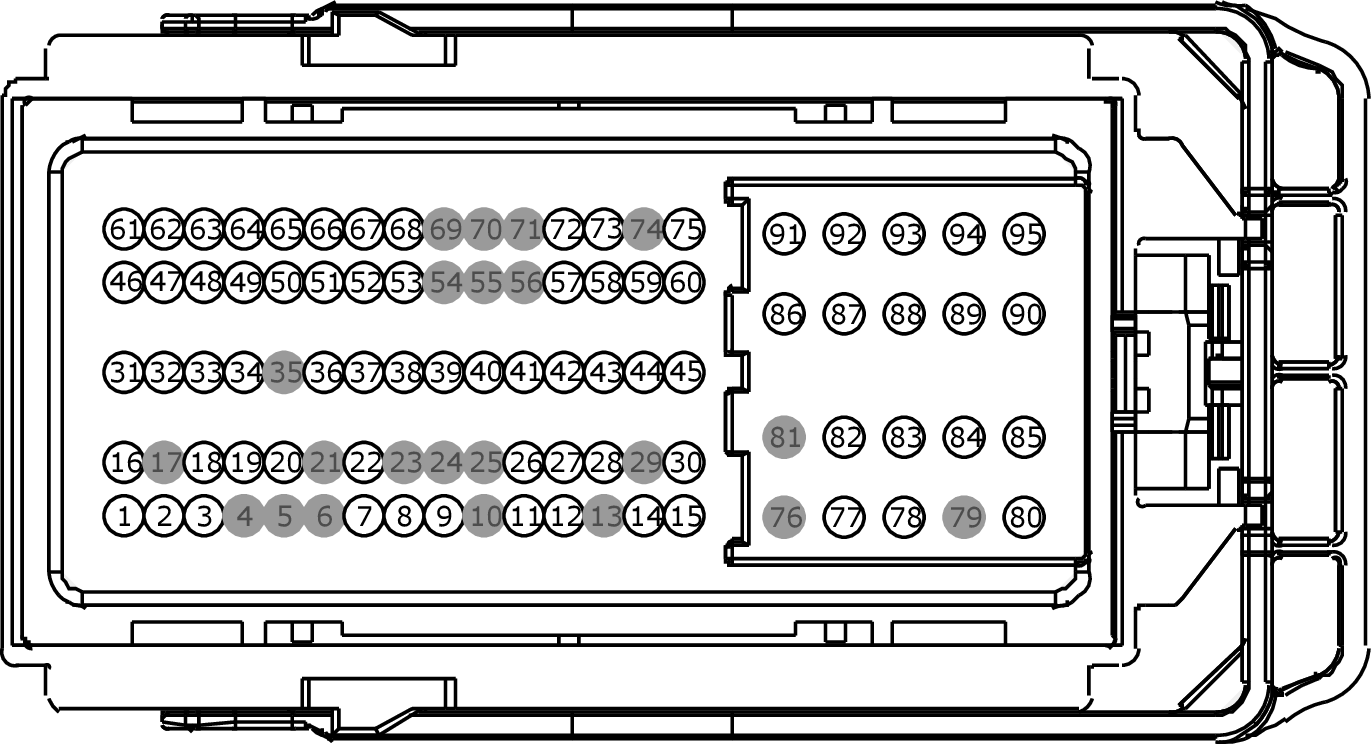

Connector End View (C1551E) - POWERTRAIN CONTROL MODULE (PCM)
Connector: C1551E
Description
POWERTRAIN CONTROL MODULE (PCM)
Color
Harness
12C508
Base Part #
part# N/A
Service Pigtail
Not Available
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CE421 (VT) |
20 |
CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING 11 (VCT11) |
|
|
2 |
CET19 (VT-GY) |
20 |
CTRL MOD. - POWERTRAIN # SHIFT SOLENOID E (SSE) |
|
|
3 |
CE435 (YE-BU) |
20 |
SENSOR - TURBOCHARGER BYPASS VALVE (TCBY) |
|
|
4 |
* |
* |
Not Used |
|
|
5 |
* |
* |
Not Used |
|
|
6 |
* |
* |
Not Used |
|
|
7 |
LE134 (YE) |
20 |
CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF) |
|
|
8 |
LE423 (GN-VT) |
20 |
CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) |
|
|
9 |
CMC24 (GY) |
18 |
SWITCH - OIL PRESSURE |
|
|
10 |
* |
* |
Not Used |
|
|
11 |
VE711 (YE-VT) |
18 |
SENSOR - CRANKSHAFT POSITION (CKP) |
|
|
12 |
RET04 (YE-OG) |
20 |
CTRL MOD. - POWERTRAIN # SENSOR OUTPUT SHAFT SPEED (OSS) |
|
|
13 |
* |
* |
Not Used |
|
|
14 |
CE235 (GN-BN) |
18 |
CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. PRE CAT. 1ST OR UNIQUE (UO2SHTR11) |
|
|
15 |
CE236 (GY-VT) |
18 |
CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. PRE CAT. 2ND (UO2SHTR21) |
|
|
16 |
VE824 (YE-GN) |
18 |
CTRL MOD. - POWERTRAIN # TURBOCHARGER (TC) WASTEGATE REGULATING VALVE SOLENOID (TCWRVS) |
|
|
17 |
* |
* |
Not Used |
|
|
18 |
CE422 (WH-OG) |
20 |
CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING 21 (VCT21) |
|
|
19 |
CE435 (YE-BU) |
20 |
SENSOR - TURBOCHARGER BYPASS VALVE 2 (TCBY2) |
|
|
20 |
RE405 (GN-WH) |
20 |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN) |
|
|
21 |
* |
* |
Not Used |
|
|
22 |
LE111 (VT-GN) |
20 |
CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE (VREF) |
|
|
23 |
* |
* |
Not Used |
|
|
24 |
* |
* |
Not Used |
|
|
25 |
* |
* |
Not Used |
|
|
26 |
VE707 (GN-VT) |
18 |
SENSOR - CAMSHAFT POSITION BANK 2 IN+EX / IN (CMP21) |
|
|
27 |
RET33 (WH-VT) |
20 |
SENSOR - TURBINE/TRANSMISSION SHAFT SPEED (TSS) |
|
|
28 |
VE706 (BN-BU) |
18 |
SENSOR - CAMSHAFT POSITION BANK 1 IN+EX / IN (CMP11) |
|
|
29 |
* |
* |
Not Used |
|
|
30 |
CET08 (BN-WH) |
20 |
CTRL MOD. - POWERTRAIN # SHIFT SOLENOID D (SSD) |
|
|
31 |
RE134 (BU-OG) |
20 |
CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCRTN) |
|
|
32 |
RET24 (BN-BU) |
20 |
TSS / OSS / TR SIGNAL RETURN (TSS / OSS / TR GND) |
|
|
33 |
VE804 (GN-BN) |
18 |
CTRL MOD. - POWERTRAIN # MANIFOLD PRESSURE SENSOR (MAP) |
|
|
34 |
VE740 (VT-GY) |
18 |
SENSOR - INTAKE AIR TEMPERATURE 2 (IAT2) |
|
|
35 |
* |
* |
Not Used |
|
|
36 |
VE712 (BU-GY) |
20 |
SENSOR - CYLINDER HEAD TEMPERATURE (CHT) |
|
|
37 |
VE727 (BU-BN) |
20 |
SENSOR - FUEL RAIL PRESSURE (FRP) |
|
|
38 |
VET32 (VT) |
20 |
SENSOR - TRANSMISSION RANGE # 4 (TR4) [DTRS] |
|
|
39 |
VET30 (YE) |
20 |
SENSOR - TRANSMISSION RANGE # 2 (TR2) [DTRS] |
|
|
40 |
VET31 (BU-OG) |
20 |
SENSOR - TRANSMISSION RANGE # 3 (TR3) [DTRS] |
|
|
41 |
VET29 (VT-WH) |
20 |
SENSOR - TRANSMISSION RANGE # 1 (TR1) [DTRS] |
|
|
42 |
CE303 (WH-VT) |
18 |
CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 1 (COP1A) |
|
|
43 |
CE306 (GN-VT) |
18 |
CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 4 (COP4B) |
|
|
44 |
CET10 (BU-GY) |
20 |
TORQUE CONVERTER CLUTCH (TCC) SOLENOID |
|
|
45 |
CET06 (GN-BN) |
20 |
CTRL MOD. - POWERTRAIN # SHIFT SOLENOID B (SSB) |
|
|
46 |
LE453 (BN-BU) |
18 |
CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN MEASURED 2ND (UO2SPCT21) |
|
|
47 |
LE449 (VT-GN) |
18 |
CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE UNIVERSAL HEGO 2ND (UO2SGREF21) |
|
|
48 |
LE452 (GN) |
18 |
CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN MEASURED PUMPING CURRENT 1ST (UO2SPCT11) |
|
|
49 |
LE448 (GY-BU) |
18 |
CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE UNIVERSAL HEGO 1ST (UO2SGREF11) |
|
|
50 |
VE802 (BN-BU) |
18 |
SENSOR - KNOCK 2ND (KS2+) |
|
|
51 |
RE324 (BN-GN) |
18 |
CTRL MOD. - POWERTRAIN # KNOCK SENSOR 2ND (KS2-) |
|
|
52 |
VE819 (GN-VT) |
20 |
SENSOR - THROTTLE POSITION # POSITIVE SLOPE (TP2) |
|
|
53 |
RE406 (GY-VT) |
18 |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN) |
|
|
54 |
* |
* |
Not Used |
|
|
55 |
* |
* |
Not Used |
|
|
56 |
* |
* |
Not Used |
|
|
57 |
CE304 (YE-BU) |
18 |
CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 2 (COP2C) |
|
|
58 |
CE307 (WH-BN) |
18 |
CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 5 (COP5D) |
|
|
59 |
CET09 (YE-VT) |
20 |
LINE PRESSURE CONTROL (LPC) |
|
|
60 |
CET05 (BU-GN) |
20 |
CTRL MOD. - POWERTRAIN # SHIFT SOLENOID A (SSA) |
|
|
61 |
LE450 (WH) |
18 |
CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT 2ND (UO2SPC21) |
|
|
62 |
VE827 (WH-GN) |
18 |
SENSOR - UNIVERSAL HEATED OXYGEN 2ND (UO2S21) |
|
|
63 |
LE451 (BN-YE) |
18 |
CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT 1ST (UO2SPC11) |
|
|
64 |
VE826 (BN-VT) |
18 |
SENSOR - UNIVERSAL HEATED OXYGEN 1ST OR UNIQUE (UO2S11) |
|
|
65 |
VE801 (VT-OG) |
18 |
SENSOR - KNOCK 1ST BANK 1ST OR UNIQUE (KS1+) |
|
|
66 |
RE323 (WH-BN) |
18 |
CTRL MOD. - POWERTRAIN # KNOCK SENSOR 1ST BANK 1ST OR UNIQUE (KS1-) |
|
|
67 |
VET27 (BN-YE) |
20 |
SENSOR - TRANSMISSION FLUID TEMPERATURE (TFT) |
|
|
68 |
VE818 (BN) |
20 |
SENSOR - THROTTLE POSITION # NEGATIVE SLOPE (TP1) |
|
|
69 |
* |
* |
Not Used |
|
|
70 |
* |
* |
Not Used |
|
|
71 |
* |
* |
Not Used |
|
|
72 |
CE305 (BU-OG) |
18 |
CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 3 (COP3E) |
|
|
73 |
CE308 (VT-BN) |
18 |
CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 6 (COP6F) |
|
|
74 |
* |
* |
Not Used |
|
|
75 |
CET07 (GY-OG) |
20 |
CTRL MOD. - POWERTRAIN # SHIFT SOLENOID C (SSC) |
|
|
76 |
* |
* |
Not Used |
|
|
77 |
RE226 (GN-VT) |
14 |
CTRL MOD. - POWERTRAIN # FUEL VOLUME REGULATOR RETURN (FVRRTN) |
|
|
78 |
CE226 (YE-VT) |
14 |
CTRL MOD. - POWERTRAIN # FUEL VOLUME REGULATOR (FVR) |
|
|
79 |
* |
* |
Not Used |
|
|
80 |
CET25 (BU-GN) |
18 |
TRANSAXLE SOLENOID POWER CONTROL (TSPC) |
|
|
81 |
* |
* |
Not Used |
|
|
82 |
CE207 (VT-GY) |
18 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) |
|
|
83 |
CE208 (YE-OG) |
18 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ) |
|
|
84 |
CE205 (GN-BU) |
18 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) |
|
|
85 |
CE209 (BN) |
18 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 5 (INJ) |
|
|
86 |
CE412 (YE-VT) |
18 |
CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM+) |
|
|
87 |
RE205 (YE-BU) |
18 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ1RTN) |
|
|
88 |
RE208 (BU) |
18 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ4RTN) |
|
|
89 |
RE206 (BU-OG) |
18 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ2RTN) |
|
|
90 |
CE206 (GY-YE) |
18 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) |
|
|
91 |
CE426 (BU-GN) |
18 |
CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM-) |
|
|
92 |
RE209 (WH-GN) |
18 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 5 (INJ5RTN) |
|
|
93 |
RE207 (GN-VT) |
18 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ3RTN) |
|
|
94 |
RE210 (BN-VT) |
18 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 6 (INJ6RTN) |
|
|
95 |
CE210 (GN-WH) |
18 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 6 (INJ) |
