Connector End View (C1588) - TURBOCHARGER BOOST PRESSURE / CHARGE AIR COOLER TEMPERATURE (TCBP/CACT) SENSOR

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

VE804 (GN-BN)

18

SENSOR - TURBOCHARGER BOOST PRESSURE (TCBP) SENSOR

2

LE423 (GN-VT)

18

CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF)

3

VE740 (VT-GY)

18

SENSOR - CHARGE AIR COOLER TEMPERATURE (CACT) SENSOR

4

RE405 (GN-WH)

18

CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN)

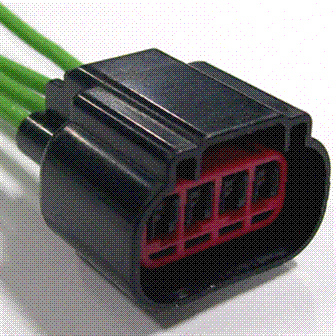

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1339

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-SPC

Gauge:

16

Pin material:

Silver

Cavities:

4

Vehicle Uses

Actuator - Door Lock - Decklid/Liftgate

Actuator - Intake Manifold Valve

Coil - Ignition

Lamp - Front Cornering/Turn

Lamp - Park/Turn

Sensor - Intake Manifold Runner Control

Sensor - Manifold Absolute Pressure (MAP)

Sensor - Manifold Pressure/Intake Temperature

Sensor - Turbine Shaft Speed

Sensor - Turbo Intake Pressure/Temperature

Switch - Sliding Door Contact
