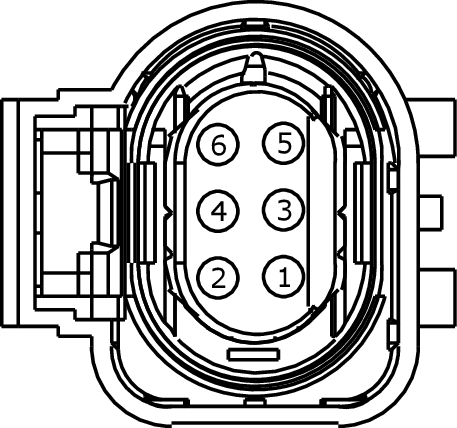

Connector End View (C1632) - UNIVERSAL HEATED OXYGEN SENSOR (HO2S) #21
Connector: C1632
Description
UNIVERSAL HEATED OXYGEN SENSOR (HO2S) #21
Color
Harness
12C508
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
LE450 (WH) |
18 |
CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT 2ND (UO2SPC21) |
3.5L GTDI |
|
2 |
LE449 (VT-GN) |
18 |
CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE UNIVERSAL HEGO 2ND (UO2SGREF21) |
3.5L GTDI |
|
3 |
CE236 (GY-VT) |
18 |
CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. PRE CAT. 2ND (UO2SHTR21) |
3.5L GTDI |
|
4 |
CBK02 (GN) |
18 |
FUSE - 67 OR CIRCUIT BREAKER (VPWR) |
3.5L GTDI |
|
5 |
LE453 (BN-BU) |
18 |
CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN MEASURED 2ND (UO2SPCT21) |
3.5L GTDI |
|
6 |
VE827 (WH-GN) |
18 |
SENSOR - UNIVERSAL HEATED OXYGEN 2ND (UO2S21) |
3.5L GTDI |
|
Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1355 |
Service Part Number: DU2Z-14S411-AFA Gauge: 18 Pin material: Tin (greased) Cavities: 6 Vehicle Uses Control - Electronic Throttle Sensor - O2 (HEGO/ EGO) |
