Connector End View (C1644) - WASTEGATE VACUUM SENSOR
Connector: C1644
Description
WASTEGATE VACUUM SENSOR
Color
Harness
12C508
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
LE458 (BU-WH) |
20 |
CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE 2 (VREF) |
|
|
2 |
RE454 (YE-GN) |
18 |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN (SIGRTN) |
|
|
3 |
VE821 (WH-VT) |
20 |
SENSOR - WASTEGATE VACUUM (WVS) |
|

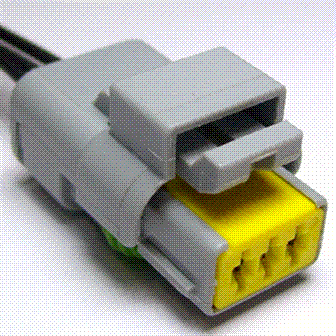

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1317 |
Service Part Number: CU2Z-14S411-BCA Gauge: 18 Pin material: Tin (greased) Cavities: 3 Vehicle Uses Actuator - Turbocharger Waste Gate |
