Connector End View (C1649) - VARIABLE CAMSHAFT TIMING BANK 1 SOLENOID 2 (VCT12)

Connector: C1649

Description

VARIABLE CAMSHAFT TIMING BANK 1 SOLENOID 2 (VCT12)

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBK02 (GN)	18	FUSE - 67 OR CIRCUIT BREAKER (VPWR)
2	CE422 (WH-OG)	18	CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING 12 (VCT12)

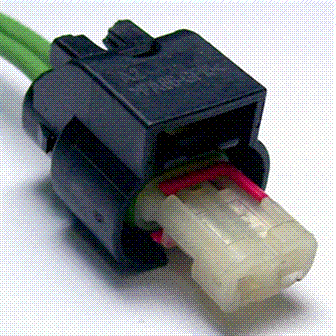

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1250

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-CA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Solenoid - Engine Variable Timing
