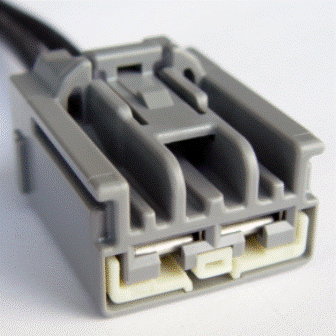

Connector End View (C2004) - BLOWER MOTOR
Connector: C2004
Description
BLOWER MOTOR
Color
Harness
14401
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CH402 (YE-GN) |
10 |
RELAY - FRONT BLOWER |
|
|
2 |
VH301 (YE-BU) |
10 |
CTRL MOD. - BLOWER VARIABLE SPEED # BLOWER MOTOR |
|
Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-236 |
Service Part Number: 3U2Z-14S411-PA Gauge: 10 Pin material: Tin Cavities: 2 Vehicle Uses Mirror - Vanity Module - Seat Memory Motor - Heater/AC Blower (Auxiliary) Motor - Heater/AC Blower (Front) Radio - Amplifier Resistor - Blower Motor (Front) Switch - Heater / A/C Blower (Front) |
