Connector End View (C2092) - TEMPERATURE BLEND DOOR ACTUATOR, RH SIDE
Connector: C2092
Description
TEMPERATURE BLEND DOOR ACTUATOR, RH SIDE
Color
BK
Harness
14B324
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
LH111 (BN-WH) |
20 |
CTRL MOD. - GENERIC VREF |
|
|
2 |
VH411 (VT-GN) |
20 |
SENSOR - DOOR POSITION TEMP. RIGHT |
|
|
3 |
RH111 (GY-BU) |
20 |
CTRL MOD. - GENERIC VREF RETURN |
|
|
4 |
* |
* |
Not Used |
|
|
5 |
CH213 (BN-GN) |
20 |
CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. RIGHT COIL 2 / OPEN (IF PLUS) |
|
|
6 |
CH212 (BU-OG) |
20 |
CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. RIGHT COIL 1 / CLOSE (IF PLUS) |
|

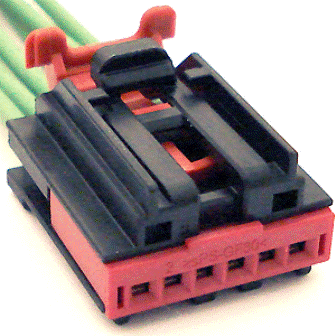

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1049 |
Service Part Number: 9U2Z-14S411-UA Gauge: 18 Pin material: Silver Cavities: 6 Vehicle Uses Actuator - Door Lock - RH - Front Motor - Heater A/C Mode Door Motor - Heater/AC Blend Door Motor - Heater/AC Inlet Door Switch - Heated Back Light (Rear Defrost) Switch - Heated Seat - LH - Rear Switch - Heated Seat - RH - Front Switch - Heated Seat - RH - Rear |
