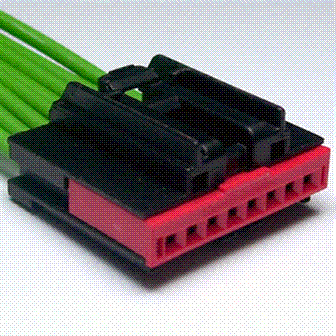

Connector End View (C2114) - CENTER STACK SWITCH ASSEMBLY
Connector: C2114
Description
CENTER STACK SWITCH ASSEMBLY
Color
BK
Harness
14401
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
GD215 (BK-GY) |
18 |
GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT |
|
|
2 |
* |
* |
Not Used |
|
|
3 |
* |
* |
Not Used |
|
|
4 |
CET34 (BN-GN) |
20 |
SWITCH - TOW MODE CONTROL (TOWS) |
|
|
5 |
CMP18 (GN-BN) |
22 |
SWITCH - PARKING AID |
|
|
6 |
VLN04 (VT-GY) |
18 |
CTRL MOD. - IP/SWITCH ILLUMINATION |
|
|
7 |
CPR63 (GY-YE) |
22 |
SWITCH - POWER LIFTGATE # OPEN/CLOSE |
|
|
8 |
CBP41 (BU) |
20 |
FUSE - 41 OR CIRCUIT BREAKER |
|
Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1270 |
Service Part Number: CU2Z-14S411-VA Gauge: 18 Pin material: Silver Cavities: 8 Vehicle Uses Switch - Center Stack (Multipurpose) Switch - Hazard Warning Switch - Traction Control |
