Connector End View (C2123) - FRONT CONTROL / DISPLAY INTERFACE MODULE (FCDIM)
Connector: C2123
Description
FRONT CONTROL / DISPLAY INTERFACE MODULE (FCDIM)
Color
Harness
14401
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
SBP09 (RD) |
22 |
FUSE - 9 OR CIRCUIT BREAKER |
|
|
2 |
* |
* |
Not Used |
|
|
3 |
* |
* |
Not Used |
|
|
4 |
VDB13 (BU-GY) |
22 |
INSTRUMENT CLUSTER # CAN BUS MULTIMEDIA HIGH |
|
|
5 |
VDB14 (VT-GY) |
22 |
INSTRUMENT CLUSTER # CAN BUS MULTIMEDIA LOW |
|
|
6 |
* |
* |
Not Used |
|
|
7 |
* |
* |
Not Used |
|
|
8 |
* |
* |
Not Used |
|
|
9 |
GD214 (BK-BU) |
22 |
GROUND - INSTRUMENT PANEL STRUCTURE |
|
|
10 |
* |
* |
Not Used |
|
|
11 |
* |
* |
Not Used |
|
|
12 |
* |
* |
Not Used |
|

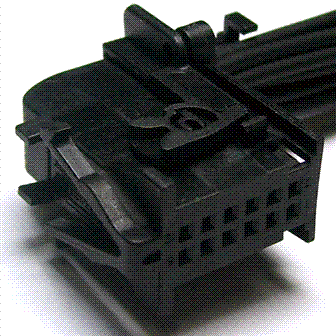

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1278 |
Service Part Number: CU2Z-14S411-ABA Gauge: 18 Pin material: Tin (greased) Cavities: 12 Vehicle Uses Message Center Module - Driver Information Module - Front Interface |
