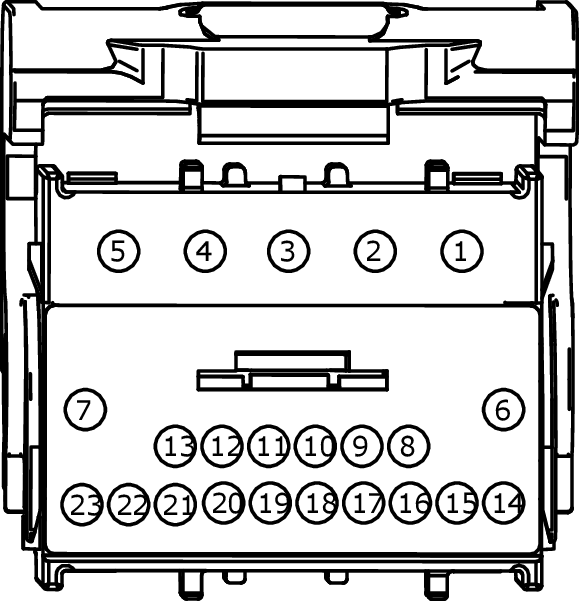

Connector End View (C2153E) - REMOTE FUNCTION ACTUATOR (RFA) MODULE

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

VPL56 (BU-GY)

22

RECEIVER - REMOTE RF

2

*

*

Not Used

3

*

*

Not Used

4

VDB07 (VT-OG)

22

CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW

5

VDB06 (GY-OG)

22

CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH

6

*

*

Not Used

7

*

*

Not Used

8

*

*

Not Used

9

*

*

Not Used

10

*

*

Not Used

11

*

*

Not Used

12

*

*

Not Used

13

*

*

Not Used

14

GD214 (BK-BU)

20

GROUND - INSTRUMENT PANEL STRUCTURE

15

*

*

Not Used

16

*

*

Not Used

17

*

*

Not Used

18

*

*

Not Used

19

*

*

Not Used

20

*

*

Not Used

21

*

*

Not Used

22

*

*

Not Used

23

*

*

Not Used

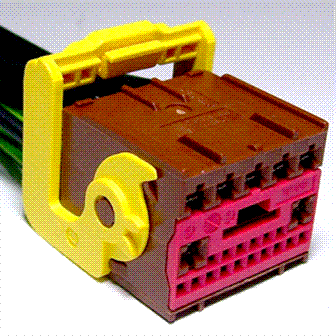

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1454

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-AMA

Gauge:

14 20

Pin material:

Tin & Silver

Cavities:

23

Vehicle Uses

Module - Remote Functions Actuator

Module - Remote Functions Receiver

Module - Remote Keyless Entry

Valve - Damper
