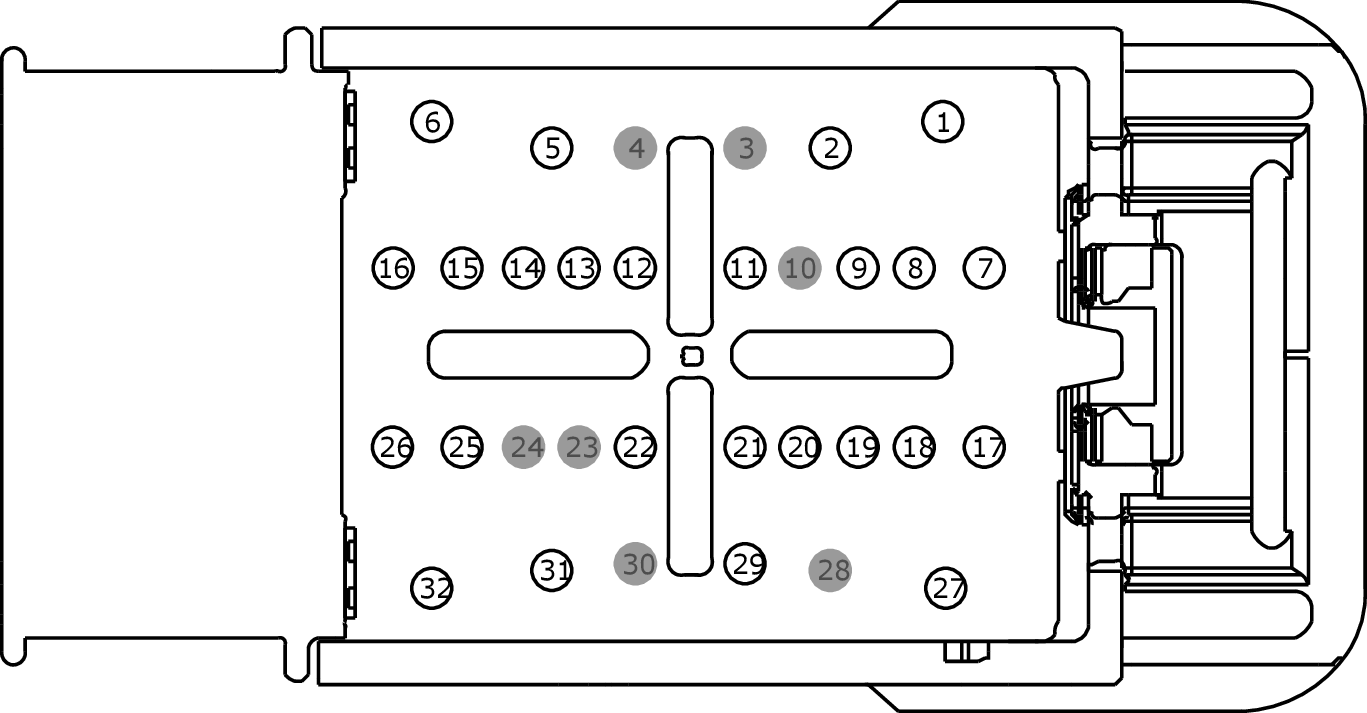

Connector End View (C2280D) - BODY CONTROL MODULE (BCM)
Connector: C2280D
Description
BODY CONTROL MODULE (BCM)
Color
NA
Harness
14A005
Base Part #
part# N/A
Service Pigtail
Not Available
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
SBP03 (BU-RD) |
12 |
FUSE - 3 OR CIRCUIT BREAKER |
XLT, Limited, Sport |
|
2 |
SBP05 (GY-RD) |
16 |
FUSE - 5 OR CIRCUIT BREAKER |
|
|
3 |
* |
* |
Not Used |
|
|
4 |
* |
* |
Not Used |
|
|
5 |
SBP02 (YE-RD) |
18 |
FUSE - 2 OR CIRCUIT BREAKER |
police |
|
6 |
SBP01 (RD) |
12 |
FUSE - 1 OR CIRCUIT BREAKER |
XLT, Limited, Sport |
|
7 |
CBP33 (WH-BN) |
20 |
FUSE - 33 OR CIRCUIT BREAKER |
|
|
8 |
CBP34 (VT-BN) |
20 |
FUSE - 34 OR CIRCUIT BREAKER |
all others |
|
8 |
CBP34 (VT-BN) |
14 |
FUSE - 34 OR CIRCUIT BREAKER |
with rear view camera |
|
9 |
SBP21 (GY-RD) |
20 |
FUSE - 21 OR CIRCUIT BREAKER |
|
|
10 |
* |
* |
Not Used |
|
|
11 |
SBP07 (WH-RD) |
20 |
FUSE - 7 OR CIRCUIT BREAKER |
|
|
12 |
CLS18 (GY-BN) |
18 |
CTRL MOD. - STOP/TURN LEFT (INBOARD) |
|
|
13 |
CLS28 (BU-WH) |
20 |
CTRL MOD. - RELAY REVERSE LAMP CONTROL (RLC) |
|
|
14 |
CLS52 (BN) |
18 |
CTRL MOD. - STOP/TURN RIGHT MIDDLE |
|
|
15 |
CLS19 (VT-OG) |
18 |
CTRL MOD. - STOP/TURN RIGHT (INBOARD) |
|
|
16 |
GD233 (BK) |
16 |
GROUND - COWL SIDE/PILLAR A LEFT |
|
|
17 |
CBP32 (GN-VT) |
18 |
FUSE - 32 OR CIRCUIT BREAKER |
|
|
18 |
CBP40 (YE-GN) |
22 |
FUSE - 40 OR CIRCUIT BREAKER |
|
|
19 |
CBP41 (BU) |
22 |
FUSE - 41 OR CIRCUIT BREAKER |
|
|
20 |
SBP09 (RD) |
20 |
FUSE - 9 OR CIRCUIT BREAKER |
|
|
21 |
CPL51 (BU-GN) |
16 |
CTRL MOD. - DOOR LOCK # DRIVER UNLOCK |
without IA |
|
22 |
CLN09 (YE-GN) |
20 |
RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING) |
|
|
23 |
* |
* |
Not Used |
|
|
24 |
* |
* |
Not Used |
|
|
25 |
GD233 (BK) |
16 |
GROUND - COWL SIDE/PILLAR A LEFT |
|
|
26 |
CPL11 (GY-BN) |
14 |
CTRL MOD. - DOOR LOCK # ALL LOCK |
without IA |
|
27 |
CBP01 (BU) |
12 |
FUSE - 48 OR CIRCUIT BREAKER |
|
|
28 |
* |
* |
Not Used |
|
|
29 |
CPL84 (GN-BN) |
18 |
RELAY - LIFTGATE/DECKLID RELEASE |
without IA |
|
30 |
* |
* |
Not Used |
|
|
31 |
CPL52 (VT-GY) |
14 |
CTRL MOD. - DOOR LOCK - PASSENGER DOORS UNLOCK (ALL EXCLUDING DRIVER) |
without IA |
|
32 |
SBP19 (BU-RD) |
16 |
FUSE - 19 OR CIRCUIT BREAKER |
