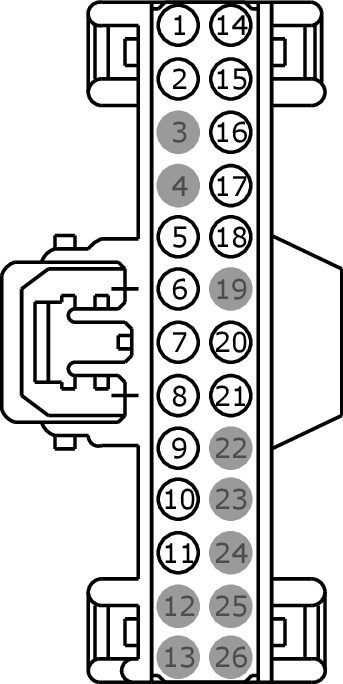

Connector End View (C2280F) - BODY CONTROL MODULE (BCM)
Connector: C2280F
Description
BODY CONTROL MODULE (BCM)
Color
BN
Harness
14290
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
RMC19 (YE-GY) |
20 |
SWITCH - LOW LEVEL BRAKE FLUID (CONTINUITY CHECK) |
|
|
2 |
CPL25 (BU-OG) |
20 |
SWITCH - HOOD # AJAR |
|
|
3 |
* |
* |
Not Used |
|
|
4 |
* |
* |
Not Used |
|
|
5 |
CE436 (VT-OG) |
20 |
CTRL MOD. -WAKE UP PCM |
|
|
6 |
CE226 (YE-VT) |
18 |
CTRL MOD. - POWERTRAIN # FUEL PUMP (FP) |
|
|
7 |
CLS25 (YE-VT) |
20 |
CTRL MOD. - TURN LAMP RIGHT FRONT |
|
|
8 |
CLS21 (BU-GN) |
20 |
CTRL MOD. - TURN LAMP LEFT FRONT |
|
|
9 |
CLF06 (BN-GN) |
20 |
CTRL MOD. - CORNERING LAMP LEFT |
|
|
10 |
CLF07 (GY-OG) |
20 |
CTRL MOD. - CORNERING LAMP RIGHT |
|
|
11 |
CDC64 (WH-BU) |
20 |
RELAY - RUN; ACCESSORY |
|
|
12 |
* |
* |
Not Used |
|
|
13 |
* |
* |
Not Used |
|
|
14 |
RDC59 (GY-BN) |
20 |
CTRL MOD. - BATTERY MONITORING SYSTEM SENSOR |
|
|
15 |
CMC19 (GY-VT) |
20 |
SWITCH - LOW LEVEL BRAKE FLUID |
|
|
16 |
VDB04 (WH-BU) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH |
|
|
17 |
VDB05 (WH) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW |
|
|
18 |
CDC55 (BN-VT) |
18 |
RELAY - RUN; START |
|
|
19 |
* |
* |
Not Used |
|
|
20 |
SDC57 (BU-OG) |
20 |
CTRL MOD. - BATTERY MONITORING SYSTEM MONITOR |
|
|
21 |
LDC59 (BU-WH) |
20 |
CTRL MOD. - BATTERY MONITORING SYSTEM SENSOR |
|
|
22 |
* |
* |
Not Used |
|
|
23 |
* |
* |
Not Used |
|
|
24 |
* |
* |
Not Used |
|
|
25 |
* |
* |
Not Used |
|
|
26 |
* |
* |
Not Used |
|

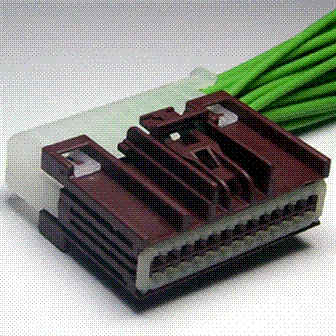

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1291 |
Service Part Number: CU2Z-14S411-ASA Gauge: 20 Pin material: Silver Cavities: 26 Vehicle Uses Control Head - Electronic Automatic Temperature (EATC) Module - Body Control Module - Electronic Automatic Temperature Control (EATC) |
