Connector End View (C2360) - COLLAPSABLE STEERING COLUMN MODULE
Connector: C2360
Description
COLLAPSABLE STEERING COLUMN MODULE
Color
Harness
14401
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CR168 (WH-GN) |
20 |
CTRL MOD. - PYROTECHNIC STEERING COLUMN + |
|
|
2 |
RR168 (BU-WH) |
20 |
CTRL MOD. - PYROTECHNIC STEERING COLUMN - |
|

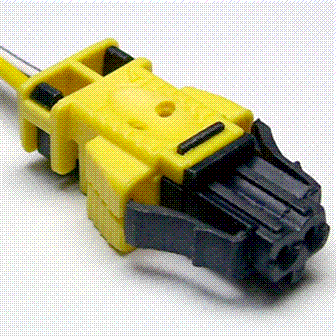

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1229 |
Service Part Number: BU2Z-14S411-BNA Gauge: 20 Pin material: FCI - Airbag Cavities: 2 Vehicle Uses Deployable Steering Column |
