Connector End View (C2402) - FRONT CONTROLS INTERFACE MODULE (FCIM)
Connector: C2402
Description
FRONT CONTROLS INTERFACE MODULE (FCIM)
Color
Harness
14401
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
SBP09 (RD) |
22 |
FUSE - 9 OR CIRCUIT BREAKER |
|
|
2 |
VDB13 (BU-GY) |
22 |
INSTRUMENT CLUSTER # CAN BUS MULTIMEDIA HIGH |
|
|
3 |
VDB14 (VT-GY) |
22 |
INSTRUMENT CLUSTER # CAN BUS MULTIMEDIA LOW |
|
|
4 |
CLS32 (BN-YE) |
22 |
SWITCH - HAZARD |
|
|
5 |
* |
* |
Not Used |
|
|
6 |
GD214 (BK-BU) |
22 |
GROUND - INSTRUMENT PANEL STRUCTURE |
|

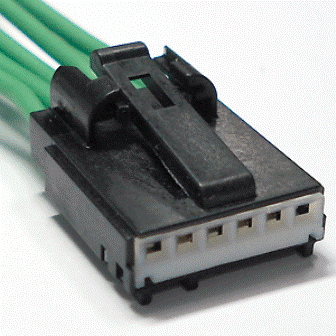

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1006 |
Service Part Number: 7U2Z-14S411-NB Gauge: 18 Pin material: Silver Cavities: 6 Vehicle Uses Lamp - Dimmer Switch Module - Front Interface Switch - Adjustable Pedal Switch - Dimmer Switch - Dimmer (Instrument Panel) Switch - Message Center Switch - Power Window - Passenger (Front) |
