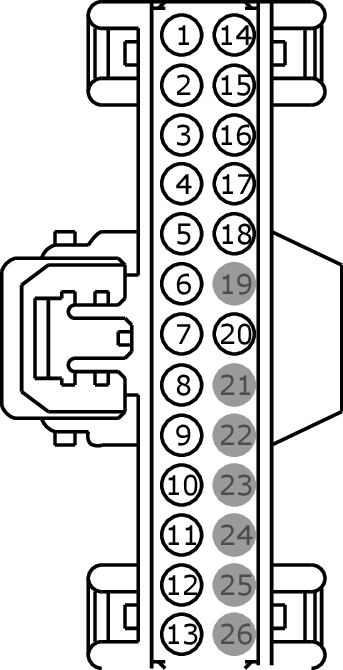

Connector End View (C2414A) - STEERING COLUMN CONTROL MODULE (SCCM)
Connector: C2414A
Description
STEERING COLUMN CONTROL MODULE (SCCM)
Color
BK
Harness
14401/3E605
Base Part #
part# N/A
Service Pigtail
Not Available
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
VDB04 (WH-BU) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH |
police |
|
2 |
GD375 (BK-BU) |
22 |
GROUND - INSTRUMENT PANEL STRUCTURE |
police |
|
3 |
CET43 (GY) |
22 |
SWITCH - TRANSMISSION SELECT SHIFT # UP (SST) |
all others |
|
3 |
CLF19 (VT-GN) |
22 |
SWITCH - AUTOLAMP (1) ON |
police |
|
4 |
CLF24 (YE-BU) |
22 |
SWITCH - HEADLAMP ON |
police |
|
4 |
CET42 (GN-VT) |
22 |
SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST) |
all others |
|
5 |
RES09 (GN-VT) |
22 |
SWITCH - BRAKE PEDAL # SPEED CONTROL DEACTIVATION (BPS) - |
all others |
|
5 |
SBP23 (WH-RD) |
22 |
FUSE - 23 OR CIRCUIT BREAKER |
police |
|
6 |
CLS34 (GY) |
22 |
SWITCH - PARK LAMPS |
police |
|
7 |
CLF23 (WH-VT) |
22 |
SWITCH - HEADLAMP OFF |
police |
|
8 |
CRH04 (VT-GN) |
22 |
CTRL MOD. - RELAY HORN |
all others |
|
9 |
CRH04 (VT-RD) |
22 |
CTRL MOD. - RELAY HORN |
police |
|
10 |
SBP23 (WH-RD) |
18 |
FUSE - 23 OR CIRCUIT BREAKER |
all others |
|
10 |
CAP18 (GN-OG) |
22 |
POLICE - SWITCH 4-FUNCTION CONTROL AUX1 |
police |
|
11 |
CAP19 (GY-VT) |
22 |
POLICE - SWITCH 4-FUNCTION CONTROL AUX2 |
police |
|
12 |
CRW15 (BN) |
26 |
CTRL MOD. - FRONT WIPER HIGH |
all others |
|
12 |
RAP18 (BN-BU) |
22 |
POLICE - SWITCH 4-FUNCTION CONTROL |
police |
|
13 |
CRW15 (BN-WH) |
22 |
CTRL MOD. - FRONT WIPER HIGH |
police |
|
13 |
GD214 (BK-BU) |
20 |
GROUND - INSTRUMENT PANEL STRUCTURE |
all others |
|
14 |
VDB04 (WH-BU) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH |
all others |
|
14 |
VDB05 (WH) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW |
police |
|
15 |
RLN29 (WH-OG) |
22 |
CTRL MOD. - DOME LAMP |
police |
|
15 |
VDB05 (WH) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW |
all others |
|
16 |
VDN05 (YE-GY) |
22 |
CTRL MOD. - LIN BUS # STEERING WHEEL CONTROL MODULE 1 |
police |
|
17 |
CLN56 (BN-VT) |
22 |
DIMMER - IP/SWITCH ILLUMINATION # DIM DOWN |
police |
|
18 |
CLN55 (YE-VT) |
22 |
DIMMER - IP/SWITCH ILLUMINATION # DIM UP |
police |
|
19 |
* |
* |
Not Used |
|
|
20 |
VDN05 (YE) |
26 |
CTRL MOD. - LIN BUS # STEERING WHEEL CONTROL MODULE 1 |
all others |
|
21 |
* |
* |
Not Used |
|
|
22 |
* |
* |
Not Used |
|
|
23 |
* |
* |
Not Used |
|
|
24 |
* |
* |
Not Used |
|
|
25 |
* |
* |
Not Used |
|
|
26 |
* |
* |
Not Used |
