Connector End View (C2414B) - STEERING COLUMN CONTROL MODULE (SCCM)
Connector: C2414B
Description
STEERING COLUMN CONTROL MODULE (SCCM)
Color
Harness
14401
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CPP22 (GY-BN) |
20 |
CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TELESCOPE FORWARD |
|
|
2 |
CPP04 (GY) |
20 |
CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TILT (RAKE) UP |
|
|
3 |
* |
* |
Not Used |
|
|
4 |
CPP01 (WH-OG) |
20 |
CTRL MOD. - MOTOR ADJUSTABLE PEDAL FORWARD |
|
|
5 |
GD214 (BK-BU) |
20 |
GROUND - INSTRUMENT PANEL STRUCTURE |
|
|
6 |
* |
* |
Not Used |
|
|
7 |
CPP05 (WH-VT) |
20 |
CTRL MOD. - MOTORS ADJUSTABLE STEERING COLUMN COMMON |
|
|
8 |
SBP24 (VT-RD) |
18 |
FUSE - 24 OR CIRCUIT BREAKER |
|

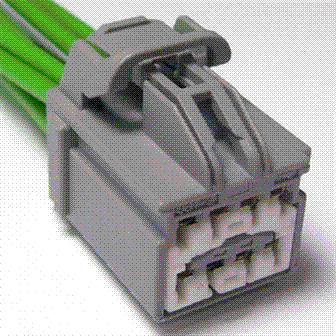

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1128 |
Service Part Number: 3U2Z-14S411-BCB Gauge: 16 Pin material: Silver Cavities: 8 Vehicle Uses Actuator - Door Lock - Decklid/Liftgate Mirror - Sideview Solenoid - Brake Shift Park Interlock Switch - Headlamp Switch - Power Window - Quarter Glass Switch - Sliding Door Contact |
