Connector End View (C2429) - PADDLE SHIFTER, LEFT
Connector: C2429
Description
PADDLE SHIFTER, LEFT
Color
BK
Harness
PIA
Base Part #
15607
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
VLN04 (*) |
* |
CTRL MOD. - IP/SWITCH ILLUMINATION |
|
|
2 |
RRH02 (*) |
* |
GROUND - CROSS CAR BEAM # 2ND POINT |
|
|
3 |
RE407 (*) |
* |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (SIGRTN) |
|
|
4 |
CET42 (*) |
* |
SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST) |
|

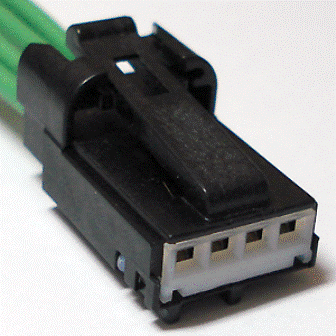

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-982 |
Service Part Number: 6U2Z-14S411-JB Gauge: 18 Pin material: Silver Cavities: 4 Vehicle Uses Module - Auto Lamps Module - Front Interface Sensor - EATC In Car Temperature Sensor - Sunload Solenoid - Brake Shift Park Interlock Switch - Door Lock (LH) Switch - Door Lock (RH) |
