Cylinder Head Temperature (CHT) Sensor - 3.5L Ti-VCT: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

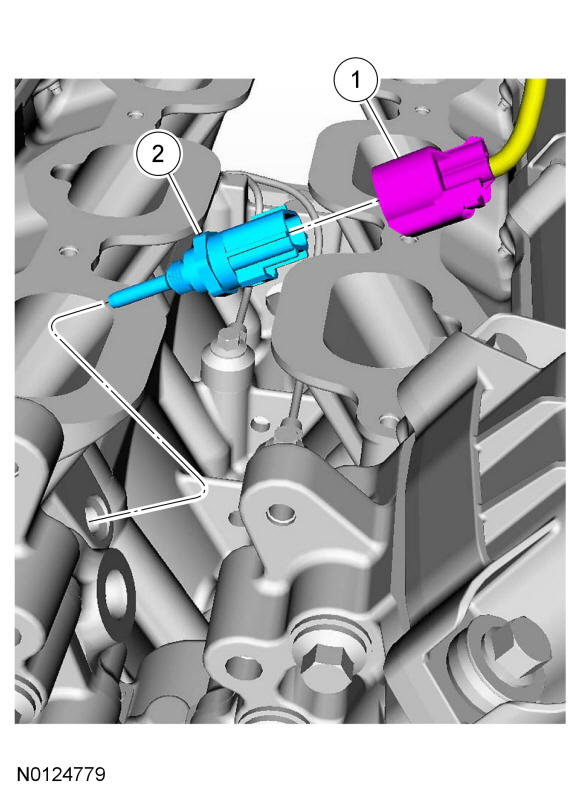

Exploded View
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | - | CHT sensor electrical connector (part of 12A581) | - | - | - |
| 2 | 6G004 | CHT sensor | - | - | 10 Nm (89 lb-in) |
