Mass Air Flow (MAF) Sensor - 3.5L Ti-VCT: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

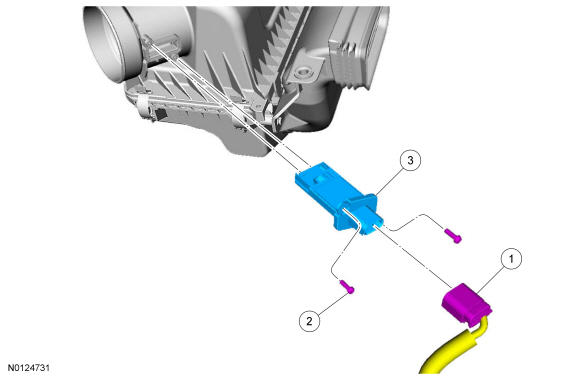

Exploded View
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | - | MAF sensor electrical connector (part of 14290) | - | - | - |
| 2 | W711655 | MAF sensor screw (2 required) | - | - | 2 Nm (18 lb-in) |
| 3 | 12B579 | MAF sensor | - | - | - |
