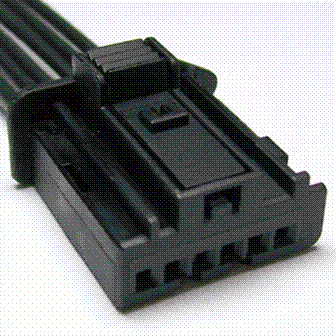

Connector End View (C3004) - AUXILIARY TEMPERATURE BLEND DOOR ACTUATOR

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

RH111 (GY-BU)

22

CTRL MOD. - GENERIC VREF RETURN

2

VHA09 (VT-BN)

22

SENSOR - AUX. TEMPERATURE DOOR POSITION

3

LH111 (BN-WH)

22

CTRL MOD. - GENERIC VREF

4

*

*

Not Used

5

CH244 (GY)

22

CTRL MOD. - CLIMATE # AUX. DOOR MOTOR TEMP. LEFT COIL 2 / OPEN (IF PLUS)

6

CH245 (BU-BN)

22

CTRL MOD. - CLIMATE # AUX. DOOR MOTOR TEMP. LEFT COIL 1 / CLOSE (IF PLUS)

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1151

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-MA

Gauge:

18

Pin material:

Tin

Cavities:

6

Vehicle Uses

Motor - Heater A/C Mode Door

Motor - Heater/AC Blend Door

Motor - Heater/AC Blower (Auxiliary)

Motor - Heater/AC Inlet Door
