Connector End View (C3020) - SUBWOOFER
Connector: C3020
Description
SUBWOOFER
Color
Harness
14A005
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
VME01 (GN-VT) |
18 |
CTRL MOD. - AUDIO # SPEAKER SUBWOOFER LEFT REAR 1 |
|
|
2 |
RME01 (GY) |
18 |
CTRL MOD. - AUDIO # SPEAKER SUBWOOFER LEFT REAR 1 |
|
|
3 |
VME02 (VT) |
18 |
CTRL MOD. - AUDIO # SPEAKER SUBWOOFER RIGHT REAR 1 |
|
|
4 |
RME02 (YE) |
18 |
CTRL MOD. - AUDIO # SPEAKER SUBWOOFER RIGHT REAR 1 |
|
Available Pigtail Kits |
|
|

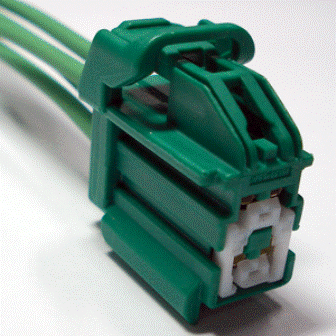

Pigtail Kit Part Number WPT-1016 |
Service Part Number: 3U2Z-14S411-FFB Gauge: 14 Pin material: Silver Cavities: 4 Vehicle Uses Motor - Steering Column Adjust Speaker - Subwoofer Transceiver - Passive Anti-Theft (PATS) |
