Connector End View (C3021) - AUXILIARY BLOWER MOTOR
Connector: C3021
Description
AUXILIARY BLOWER MOTOR
Color
NA
Harness
19949
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
VHA19 (BN) |
12 |
CTRL MOD. - REAR BLOWER # BLOWER OUT |
|
|
2 |
CHA02 (BN-GN) |
12 |
RELAY - AUX. BLOWER |
|

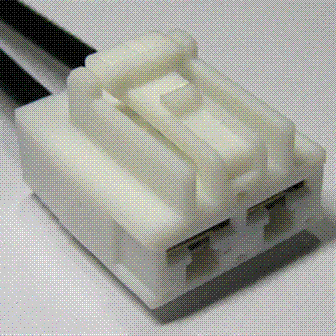

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1134 |
Service Part Number: BU2Z-14S411-HA Gauge:Pin material: Tin Cavities: 2 Vehicle Uses Motor - Heater/AC Blower (Auxiliary) |
