Connector End View (C3039) - SEAT BACKREST THERMO-ELECTRIC DEVICE (TED), PASSENGER SIDE
Connector: C3039
Description
SEAT BACKREST THERMO-ELECTRIC DEVICE (TED), PASSENGER SIDE
Color
BK
Harness
14D232
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CHS01 (GY-VT) |
16 |
CTRL MOD. - HOT/COLD SEAT # PASSENGER BACK HEATER |
|
|
2 |
CHS03 (GN-BN) |
16 |
CTRL MOD. - HOT/COLD SEAT # PASSENGER FAN |
|
|
3 |
RHS01 (WH-VT) |
16 |
CTRL MOD. - HOT/COLD SEAT # PASSENGER BACK HEATER |
|
|
4 |
RHS03 (GY-OG) |
16 |
CTRL MOD. - HOT/COLD SEAT # PASSENGER FAN |
|
|
5 |
VHS35 (VT-OG) |
20 |
SENSOR - BACK TEMP. PASSENGER |
|
|
6 |
* |
* |
Not Used |
|
|
7 |
VHS16 (BU-GN) |
20 |
CTRL MOD. - HOT/COLD SEAT # PASSENGER BACK BLOWER SPEED CONTROL |
|
|
8 |
RHS15 (GY-BN) |
20 |
CTRL MOD. - HOT/COLD SEAT # PASSENGER SENSOR BACK TEMP. |
|

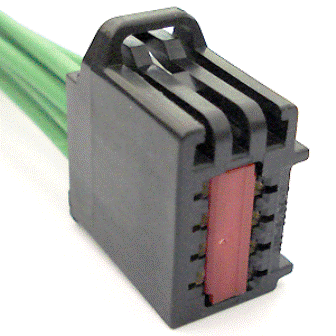

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-961 |
Service Part Number: 3U2Z-14S411-RHB Gauge: 14 Pin material: Silver Cavities: 8 Vehicle Uses Actuator - Door Lock - Decklid/Liftgate Element - Heated Seat |
