Timing Drive Components: Notes
WARNING: This page is about a different variant/trim than selected.
Special Tool(s)
| Tool, Camshaft Holding 303-1248 |

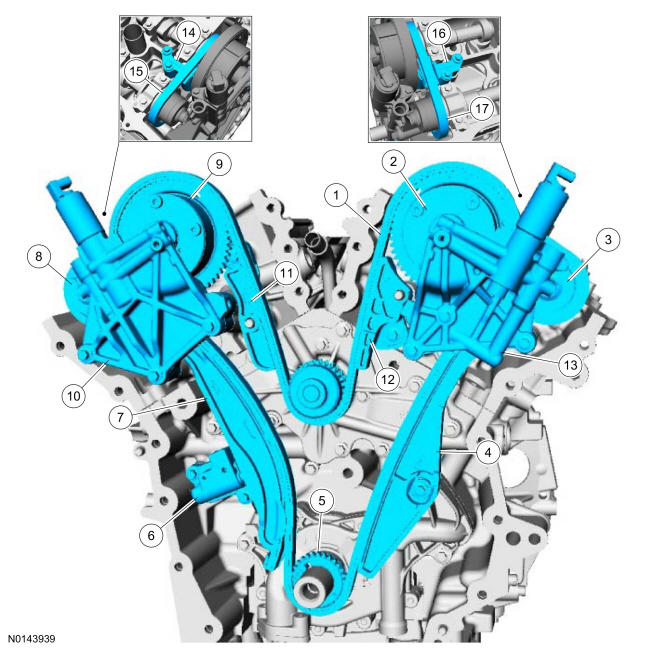

| Item | Part Number | Description |
|---|---|---|
| 1 | 6268 | Primary timing chain |
| 2 | 6A257 | LH Variable Camshaft Timing(VCT) assembly |
| 3 | 6256 | LH exhaust camshaft sprocket |
| 4 | 6B274 | LH lower primary timing chain guide |
| 5 | 6306 | Crankshaft timing chain sprocket |
| 6 | 6L266 | Primary timing chain tensioner |
| 7 | 6K255 | RH primary timing chain tensioner arm |
| 8 | 6256 | RH exhaust camshaft sprocket |
| 9 | 6A257 | RH VCT assembly |
| 10 | 6C261 | RH VCT housing |
| 11 | 6K297 | RH primary timing chain guide |
| 12 | 6K297 | LH upper primary timing chain guide |
| 13 | 6C261 | LH VCT housing |
| 14 | 6K254 | RH secondary timing chain tensioner |
| 15 | 6268 | RH secondary timing chain |
| 16 | 6K254 | LH secondary timing chain tensioner |
| 17 | 6268 | LH secondary timing chain |
