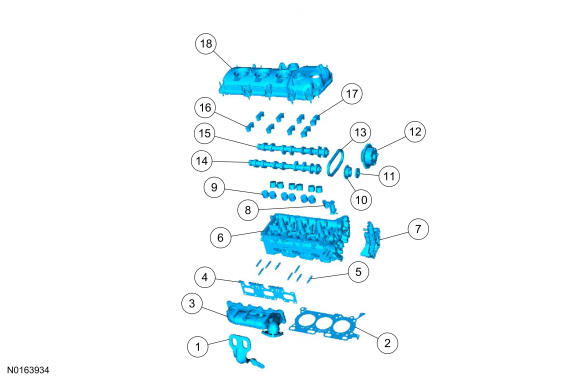

Engine Upper - RH Cylinder Head
WARNING: This page is about a different variant/trim than selected.
| Item | Part Number | Description |
|---|---|---|
| 1 | 17A084 | Engine lift eye |
| 2 | 6051 | RH cylinder head gasket |
| 3 | 9429 | Exhaust manifold |
| 4 | 9448 | Exhaust manifold gasket |
| 5 | W712244 | RH exhaust manifold stud (8 required) |
| 6 | 6049 | RH cylinder head |
| 7 | 6C260 | RH Variable Camshaft Timing (VCT) housing |
| 8 | 6C270 | RH secondary timing chain tensioner |
| 9 | 6500 | Valve tappet (12 required) |
| 10 | 6256 | RH exhaust camshaft sprocket |
| 11 | W710738 | RH exhaust camshaft sprocket washer |
| 12 | 6C524 | RH VCT assembly |
| 13 | 6C256 | RH secondary timing chain |
| 14 | 6A268 | RH exhaust camshaft |
| 15 | 6A266 | RH intake camshaft |
| 16 | 6A258 | RH camshaft cap (6 required) |
| 17 | 6B280 | RH camshaft cap (2 required) |
| 18 | 6582 | RH valve cover |
