Connector End View (C3050) - Inline
Inline C3050
Description
Inline
Color
Base Part #
Service Pigtail
Not Available

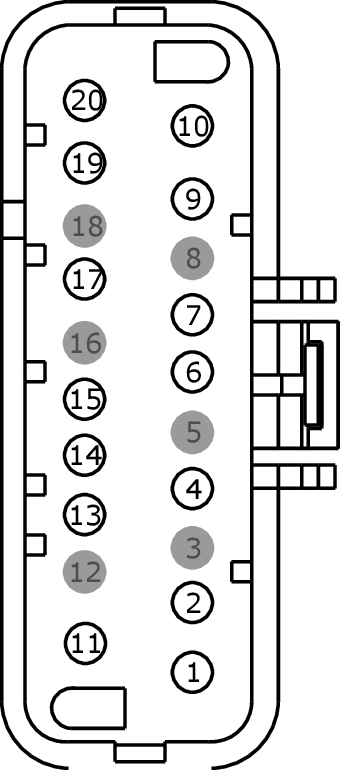

MALE
Harness 14D231

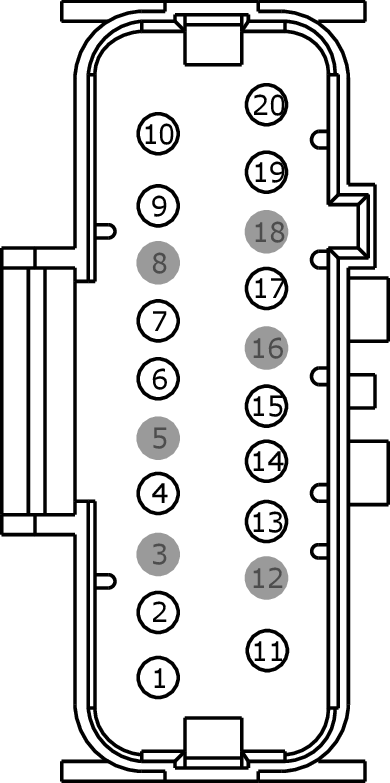

FEMALE
Harness 14D232
|
Pin |
Circuit |
Gauge |
Qualifier |
|
1 |
CPS08 (VT-OG) |
16 |
14D231 - with memory |
|
1 |
CPS30 (VT-BN) |
16 |
14D231 - without memory |
|
2 |
CPS18 (BN-GN) |
20 |
14D231 |
|
3 |
* |
* |
|
|
4 |
CHS01 (GY-VT) |
16 |
|
|
5 |
* |
* |
|
|
6 |
VPS12 (GY-OG) |
20 |
14D231 - with memory |
|
7 |
RHS15 (GY-BN) |
20 |
|
|
8 |
* |
* |
|
|
9 |
RHS03 (GY-OG) |
16 |
|
|
10 |
RHS01 (WH-VT) |
16 |
|
|
11 |
CHS03 (GN-BN) |
16 |
|
|
12 |
* |
* |
|
|
13 |
RPS13 (GN-OG) |
20 |
14D231 - with memory |
|
14 |
VHS35 (VT-OG) |
20 |
|
|
15 |
VHS16 (BU-GN) |
20 |
|
|
16 |
* |
* |
|
|
17 |
GD904 (BK-BU) |
16 |
|
|
18 |
* |
* |
|
|
19 |
CPS07 (GY-BN) |
16 |
14D231 - with memory |
|
19 |
CPS29 (WH-BN) |
16 |
14D231 - without memory |
|
Pin |
Circuit |
Gauge |
Qualifier |
|
1 |
CPS08 (VT-OG) |
16 |
14D232 |
|
2 |
CPS18 (BN-GN) |
18 |
14D232 |
|
3 |
* |
* |
|
|
4 |
CHS01 (GY-VT) |
16 |
|
|
5 |
* |
* |
|
|
6 |
VPS12 (GY-OG) |
20 |
14D232 |
|
7 |
RHS15 (GY-BN) |
20 |
|
|
8 |
* |
* |
|
|
9 |
RHS03 (GY-OG) |
16 |
|
|
10 |
RHS01 (WH-VT) |
16 |
|
|
11 |
CHS03 (GN-BN) |
16 |
|
|
12 |
* |
* |
|
|
13 |
RPS13 (GN-OG) |
20 |
14D232 |
|
14 |
VHS35 (VT-OG) |
20 |
|
|
15 |
VHS16 (BU-GN) |
20 |
|
|
16 |
* |
* |
|
|
17 |
GD904 (BK-BU) |
16 |
|
|
18 |
* |
* |
|
|
19 |
CPS07 (GY-BN) |
16 |
14D232 |
