Valve Spring, Retainer and Seal
WARNING: This page is about a different variant/trim than selected.
Special Tool(s)
| Compressor, Valve Spring 303-300 (T87C-6565-A) | |
| Compressor, Valve Spring 303-350 (T89P-6565-A) | |
| Compressor, Valve Spring 303-1249 | |
| Installer, Valve Stem Oil Seal 303-470 (T94P-6510-CH) |
Material
| Item | Specification |
| Motorcraft ® SAE 5W-30 Premium Synthetic Blend Motor Oil (US); Motorcraft ® SAE 5W-30 Super Premium Motor Oil (Canada) XO-5W30-QSP (US); CXO-5W30-LSP12 (Canada) | WSS-M2C946-A |
- 1.
Special Tool(s): Installer, Valve Stem Oil Seal 303-470 (T94P-6510-CH). Install a new valve stem seal.
NOTE:
Apply clean engine oil to the valve stem seal.
- 2.

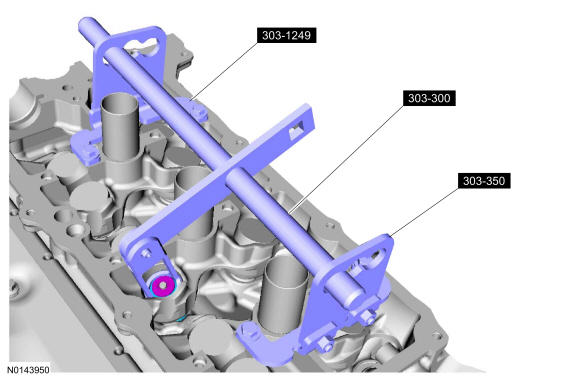

Special Tool(s): Compressors, Valve Spring 303-300 (T87C-6565-A), 303-350 (T89P-6565-A) and 303-1249. Install the valve spring, retainer and key.
- 3.
Install the valve tappets. Refer to Valve Tappets .
