Connector End View (C3065) - SAFETY BELT ANCHOR PRETENSIONER, DRIVER

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

RR170 (BN-BU)

18

CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE (#2) -

2

CR170 (GN)

18

CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE (#2) +

3

*

*

Not Used

4

*

*

Not Used

Available Pigtail Kits

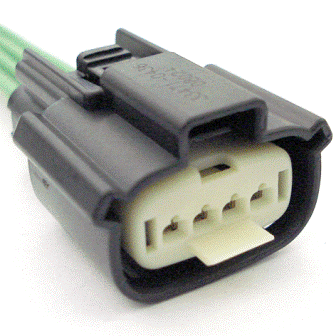

Pigtail Kit Part Number

WPT-1427

Courtesy of FORD MOTOR COMPANY

Service Part Number:

9U2Z-14S411-MB

Gauge:

16

Pin material:

Silver

Cavities:

4

Vehicle Uses

Pretensioner - Seat Belt (Driver)

Pretensioner - Seat Belt (Passenger)

Switch - Seatbelt

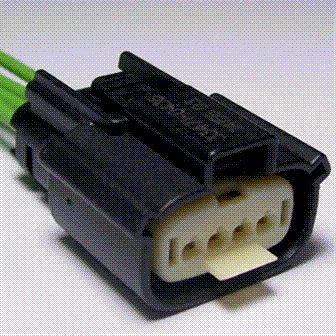

Pigtail Kit Part Number

WPT-940

Courtesy of FORD MOTOR COMPANY

Service Part Number:

9U2Z-14S411-MA

Gauge:

14

Pin material:

Silver

Cavities:

4

Vehicle Uses

Pretensioner - Seat Belt (Passenger)
