Clutch and Clutch Field Coil - 3.5L Ti-VCT

Courtesy of FORD MOTOR COMPANY

Remover, Compressor Pulley 412-001 (T71P-19703-B)

General Procedure

1. 1.

   Remove the Air Conditioning(A/C) compressor.

1. 2.

   Remove the A/C clutch disc and hub bolt.

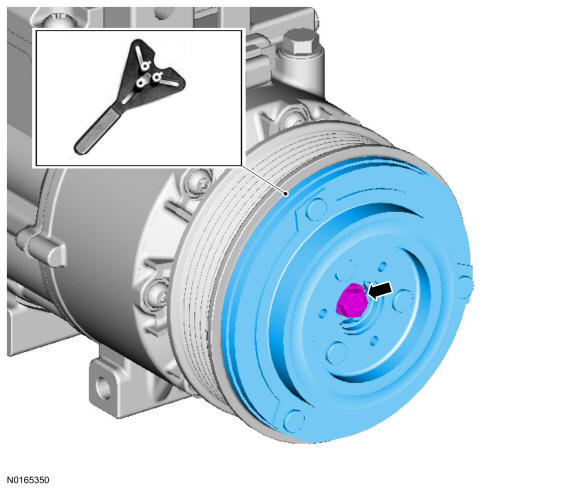

   • Using the universal clutch holding tool, hold the A/C clutch disc and hub.
   • Remove the A/C clutch disc and hub bolt.
   • Tighten to 18 Nm (159 lb-in).

Courtesy of FORD MOTOR COMPANY

1. 3.

   Remove the A/C compressor pulley snap ring.

Courtesy of FORD MOTOR COMPANY

1. 4.


   NOTE: Do not use air tools. Damage to the A/C clutch pulley or A/C compressor may result.

   Remove the A/C compressor pulley.

Courtesy of FORD MOTOR COMPANY

1. 5.

   Remove the A/C clutch field coil electrical connector retainer.
   • Tighten to 4 Nm (35lb-in)

Courtesy of FORD MOTOR COMPANY

1. 6.

   Remove the A/C clutch field coil snap ring, and remove the A/C clutch field coil.

Courtesy of FORD MOTOR COMPANY

1. 7.

   Visually inspect the A/C clutch disc and hub, compressor pulley and clutch field coil for damage.
   • Inspect for physical damage, including cracked or melted components or discoloration due to excessive heat.
   • Inspect for excessive wear, including grooving in the A/C clutch disc and hub or the compressor pulley that is more than fingernail depth.
   • Inspect for roughness in the A/C compressor pulley bearing.

1. 8.

   To install, reverse the steps in this procedure.

1. 9.

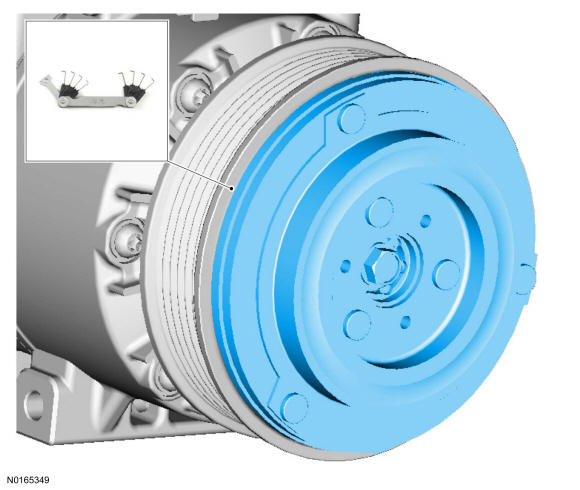

   Measure and adjust the clutch air gap by removing or adding A/C clutch disc and hub spacers, refer to Air Conditioning (A/C) Clutch Air Gap Adjustment .

Courtesy of FORD MOTOR COMPANY
