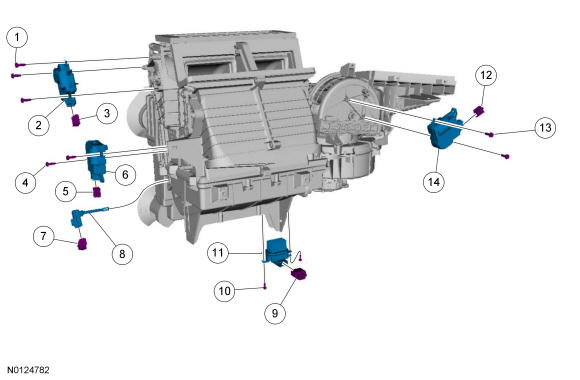

Control Components - Exploded View
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
| Item | Part Number | Description |
|---|---|---|
| 1 | W701696 | Defrost/panel/floor mode door actuator screw (3 required) |
| 2 | 19E616 | Defrost/panel/floor mode door actuator |
| 3 | - | Defrost/panel/floor mode door actuator electrical connector (part of 14401) |
| 4 | W701696 | LH temperature blend door actuator screw (2 required) |
| 5 | - | LH temperature blend door actuator electrical connector (part of 14401) |
| 6 | 19E616 | LH temperature blend door actuator |
| 7 | - | Evaporator discharge air temperature sensor electrical connector (part of 14401) |
| 8 | 19C734 | Evaporator discharge air temperature sensor |
| 9 | - | Blower motor speed control electrical connector (part of 14401) |
| 10 | W701696 | Blower motor speed control screw (2 required) |
| 11 | 19E624 | Blower motor speed control |
| 12 | - | Air inlet mode door actuator electrical connector (part of 14401) |
| 13 | W701696 | Air inlet mode door actuator screw (2 required) |
| 14 | 19E616 | Air inlet mode door actuator |
